PLAN 437-72
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

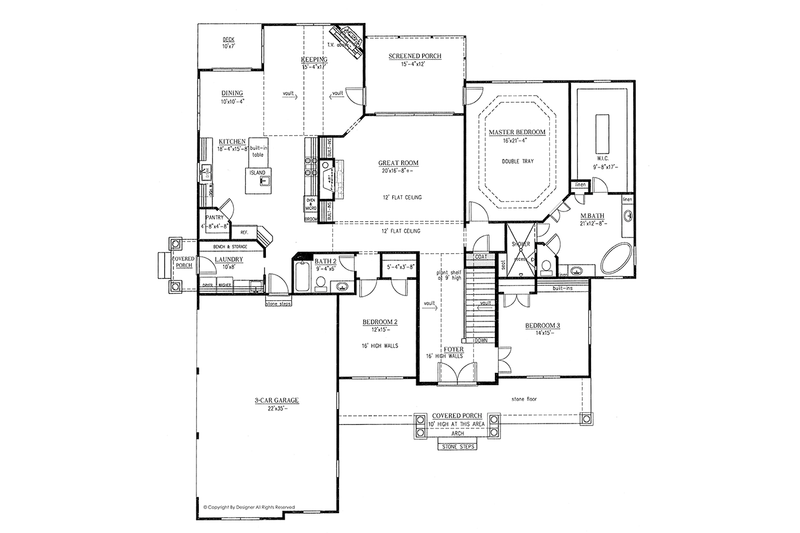

Floor Plan - Main Floor

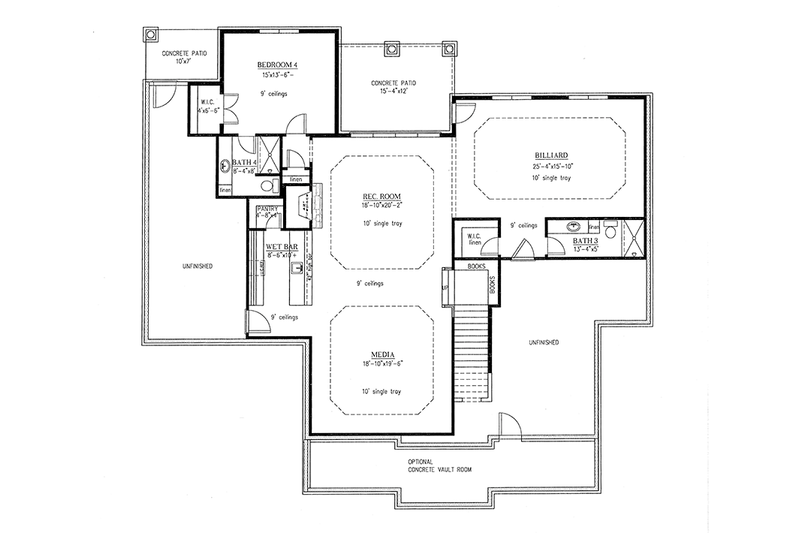

Floor Plan - Lower Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 76' 8"
Height : 29' 6"
Width : 72'
Area
Basement Living: 1931 sq/ft height 9'
Basement Unfinished: 1194 sq/ft
First Floor: 2839 sq/ft height 9'
Garage: 750 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Safe Room / Hidden Room
Sunroom
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Screened Porch
Rooms
Bath 2:
56 sq/ft width 9' 4" x depth 6'
Bath 3:
67 sq/ft width 13' 4" x depth 5'
Bath 4:
67 sq/ft width 8' 4" x depth 8'
Bedroom 2:
180 sq/ft width 12' x depth 15'
Bedroom 2 Closet:
20 sq/ft width 5' 4" x depth 3' 8"
Bedroom 3:
210 sq/ft width 14' x depth 15'
Bedroom 4:
203 sq/ft width 15' x depth 13' 6"
Bedroom 4 Closet:
26 sq/ft width 4' x depth 6' 6"
Billiard Room:
401 sq/ft width 25' 4" x depth 15' 10"
Covered Front Porch:
286 sq/ft
Covered Patio 1:
184 sq/ft width 15' 4" x depth 12'
Covered Patio 2:
70 sq/ft width 10' x depth 7'
Covered Side Porch:
width 32' x depth 0"
Deck:
70 sq/ft width 10' x depth 7'
Dining Area:
103 sq/ft width 10' x depth 10' 4"
Garage:
750 sq/ft width 22' x depth 35'
Great Room:
333 sq/ft width 20' x depth 16' 8"
Keeping Room:
261 sq/ft width 15' 4" x depth 17'
Kitchen:
288 sq/ft width 18' 4" x depth 15' 8"
Laundry:
80 sq/ft width 10' x depth 8'
Master Closet:
164 sq/ft width 9' 8" x depth 17'
Master Bath:
266 sq/ft width 21' x depth 12' 8"
Master Bedroom:
341 sq/ft width 16' x depth 21' 4"
Media Room:
367 sq/ft width 18' 10" x depth 19' 6"
Pantry:
22 sq/ft width 4' 8" x depth 4' 8"
Rec Room:
380 sq/ft width 18' 10" x depth 20' 2"
Screened Porch:
186 sq/ft width 15' 4" x depth 12'
Wet Bar:
85 sq/ft width 8' 6" x depth 10'
Wet Bar Pantry:
33 sq/ft width 4' x depth 8' 4"
What's Included In This Plan Set
Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.
-
Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc). -
Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out. -
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations. -
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable. -
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design. -
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Plan Set
