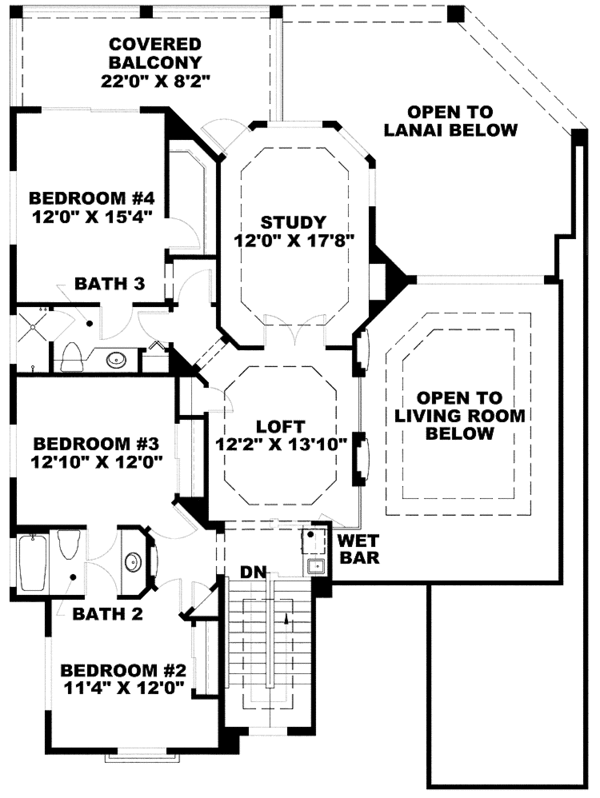

Dream House Plan - Mediterranean Floor Plan - Upper Floor Plan #1017-127

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

3736
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$72.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

NOW $1200.00

You save $300.00 (20% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1017-127

Home > Style > Mediterranean

Key Specs

3736
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This house plan is a Mediterranean floor plan featuring 4 bedrooms and 3 1/2 bathrooms. It is offered as a two-story home with the master bedroom on the first floor. Enjoy a large family room with built-in entertainment center or sit on your covered lanai with outdoor kitchen. Upstairs you'll find a loft and study great for a play area or homework time. A covered balcony allows you to enjoy your view on warm summer evenings. A great house design for the smaller lot!

Floor Plans

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 63' 4"

Height : 37' 4"

Width : 60'

Area

First Floor: 2407 sq/ft

Garage: 697 sq/ft

Second Floor: 1329 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Master Sitting Area

Outdoor Spaces

Balcony

Covered Front Porch

Rooms

Balcony:

179 sq/ft width 22' x depth 8' 2"

Bedroom 2:

135 sq/ft width 11' 4" x depth 12'

Bedroom 3:

153 sq/ft width 12' 10" x depth 12'

Bedroom 4:

183 sq/ft width 12' x depth 15' 4"

Dinette:

77 sq/ft width 8' 4" x depth 9' 4"

Dining Room:

155 sq/ft width 11' x depth 14' 2"

Family Room:

427 sq/ft width 20' 8" x depth 20' 8"

Garage:

806 sq/ft width 20' x depth 40' 4"

Kitchen:

189 sq/ft width 13' 10" x depth 13' 8"

Lanai:

553 sq/ft width 25' 4" x depth 21' 10"

Living Room:

318 sq/ft width 15' 8" x depth 20' 4"

Loft:

168 sq/ft width 12' 2" x depth 13' 10"

Master Suite:

327 sq/ft width 14' 8" x depth 22' 4"

Study:

212 sq/ft width 12' x depth 17' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

CAD Set:
$1200.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1200.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1200.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Stem Wall Foundation:
$0.00

Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Additional Options

Additional Construction Sets:
$72.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
