PLAN 132-549
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Decorative trusses adorn the exterior of this open Craftsman design, with stone-accented columns framing the entrance. Inside, the great room and kitchen flow into one another, with an island offering casual seating, and a snack bar serving the breakfast nook. The large flex room to the left can easily serve as an extra bedroom, home office, or well-lit exercise space. Across the home, enjoy the sunshine in the master suite's sitting nook, where a fireplace makes winter evenings cozy. The suite also boasts a capacious walk-in closet and extensive bath. Two generous bedrooms and a den offer more room for family.
Floor Plans

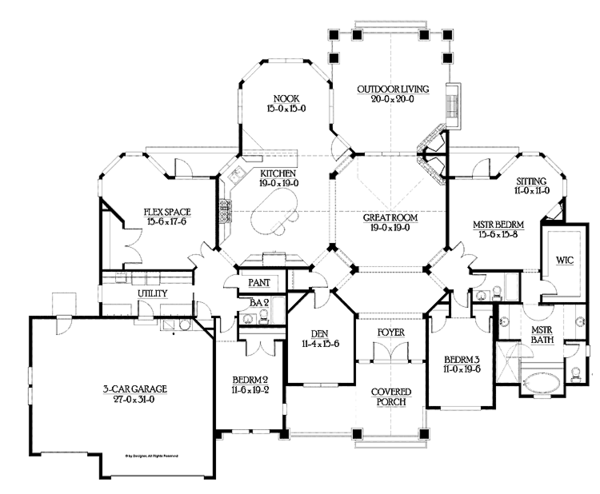

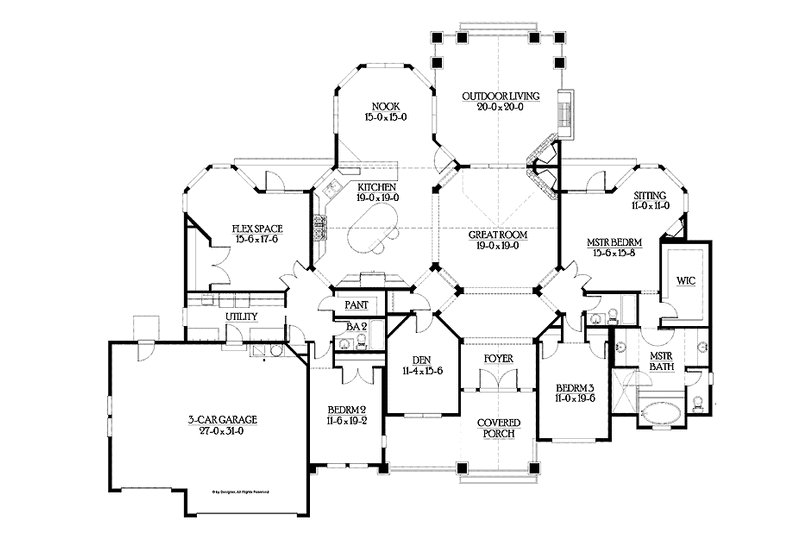

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 77'
Height : 27'
Width : 96'
Area
First Floor: 3303 sq/ft height 10'
Garage: 830 sq/ft height 10'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Master Sitting Area
Mud Room
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Outdoor Fireplace
Rooms
Bedroom 2:
220 sq/ft width 11' 6" x depth 19' 2"
Bedroom 3:
214 sq/ft width 11' x depth 19' 6"
Den:
175 sq/ft width 11' 4" x depth 15' 6"
Flex Room:
271 sq/ft width 15' 6" x depth 17' 6"
Garage:
837 sq/ft width 27' x depth 31'
Great Room:
361 sq/ft width 19' x depth 19'
Kitchen:
361 sq/ft width 19' x depth 19'
Master Bedroom:
242 sq/ft width 15' 6" x depth 15' 8"
Nook:
225 sq/ft width 15' x depth 15'
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license.
If you are building this plan in the state of Washington, please call us before placing your order.
» See important
information before purchasing.
If you are building this plan in the state of Washington, please call us before placing your order.
-
This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
