PLAN 132-202
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This craftsman design floor plan is 2580 sq ft and has 4 bedrooms and 3 bathrooms.
Floor Plans

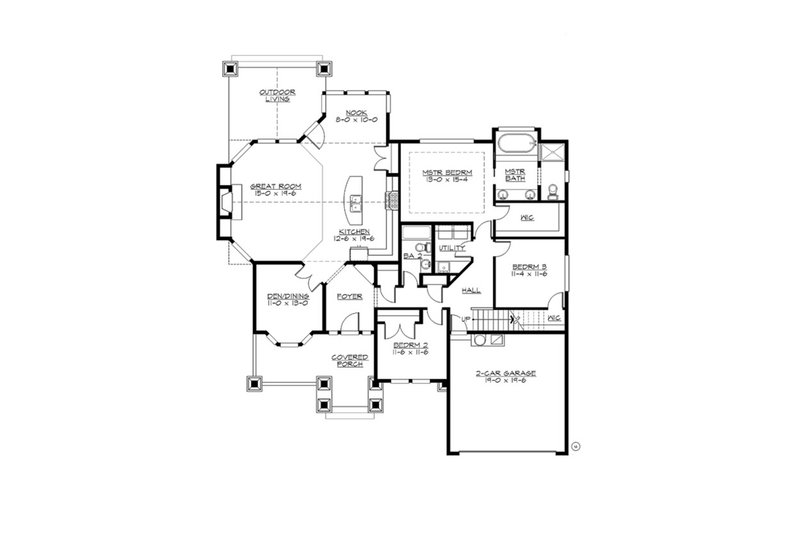

Floor Plan - Main Floor

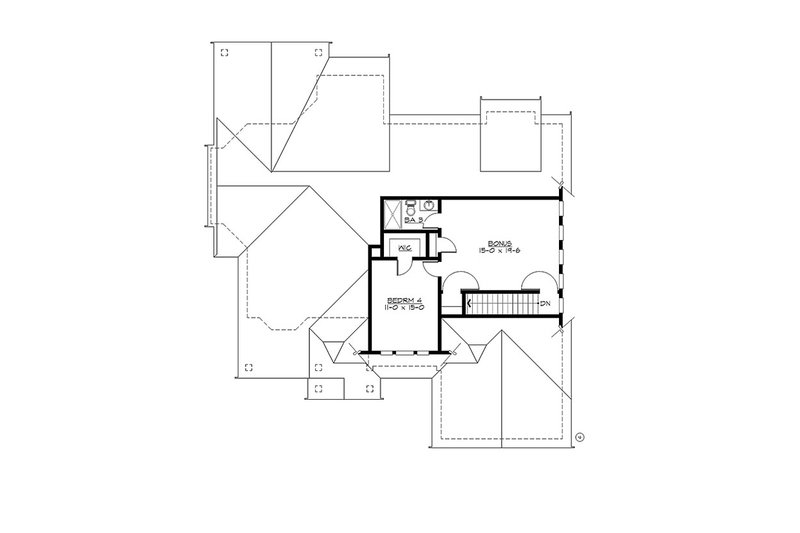

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 65'
Height : 24'
Width : 58'
Area
First Floor: 1931 sq/ft height 9'
Garage: 410 sq/ft height 9'
Second Floor: 649 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Trusses
Roof Load : 25
Roof Type : Comp
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2"x6"
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Rooms
Bedroom 2:
132 sq/ft width 11' 6" x depth 11' 6"
Bedroom 3:
130 sq/ft width 11' 4" x depth 11' 6"
Bedroom 4:
165 sq/ft width 11' x depth 15'
Bonus Room - Finished:
292 sq/ft width 15' x depth 19' 6"
Den:
143 sq/ft width 11' x depth 13'
Garage:
370 sq/ft width 19' x depth 19' 6"
Great Room:
292 sq/ft width 15' x depth 19' 6"
Kitchen:
243 sq/ft width 12' 6" x depth 19' 6"
Master Bedroom:
199 sq/ft width 13' x depth 15' 4"
Nook:
80 sq/ft width 8' x depth 10'
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license.
If you are building this plan in the state of Washington, please call us before placing your order.
» See important
information before purchasing.
If you are building this plan in the state of Washington, please call us before placing your order.
-
This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

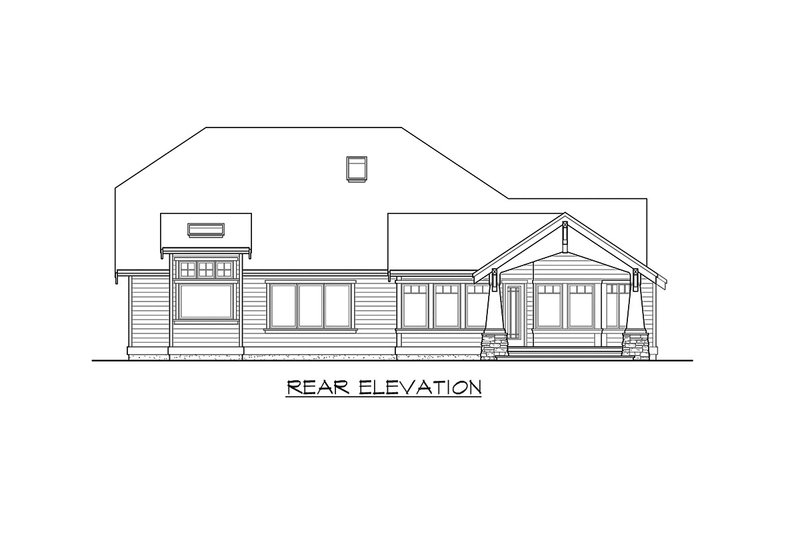

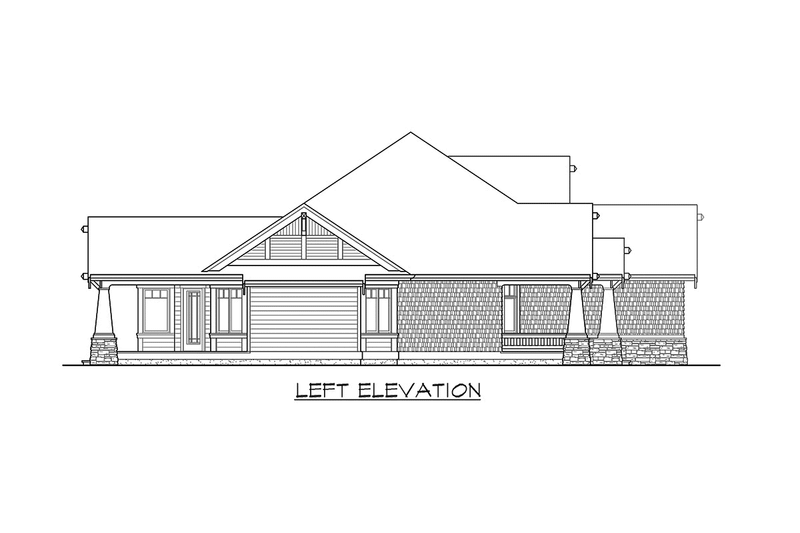

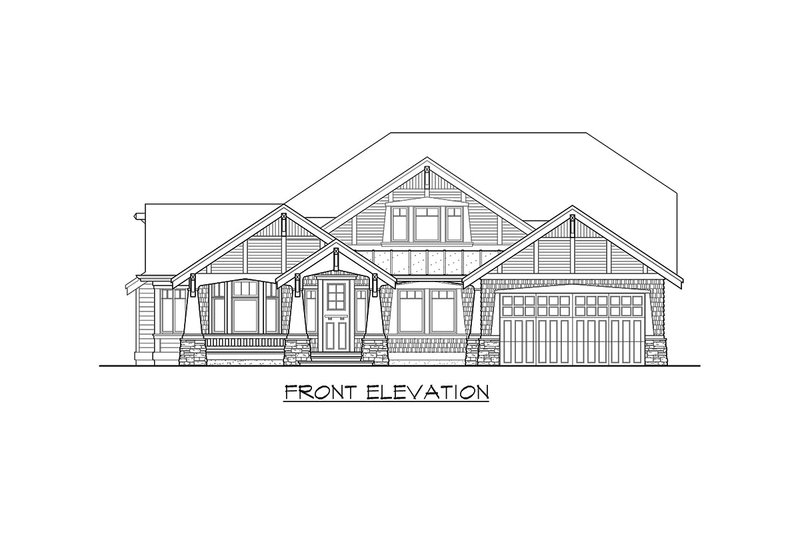

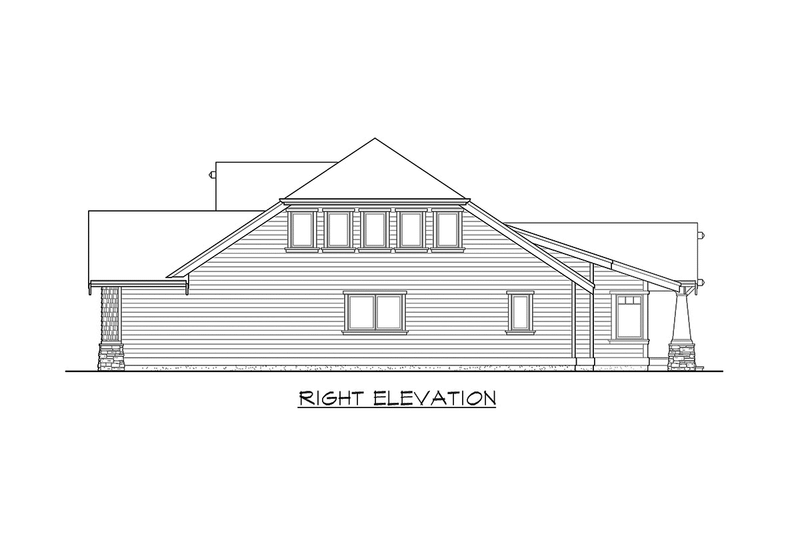

- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
