PLAN 120-275
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This is a bolt up metal building structure.
Floor Plans

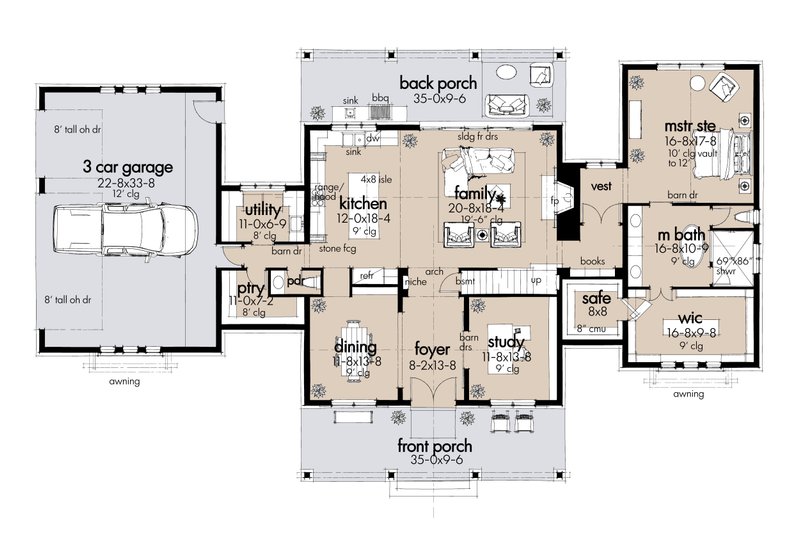

Floor Plan - Main Floor
Floor Plan - Main Floor
Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 57'
Height : 27' 3"
Width : 95' 11"
Area
Basement : 2375 sq/ft
Garage : 844 sq/ft
Main Floor : 2375 sq/ft
Porch : 648 sq/ft
Upper Floor : 802 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Master Ste vault to 12', Family -19'-6" clg
Garage Ceiling : 11'
Lower Ceiling : 8' 8"
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 5:12, 1:12
Roof Framing : Bolt up steel frame
Roof Load : 20#/sf
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : metal/stone
Framing : 8" steel
Insulation : R-25
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Play Flex Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
More
Economical To Build
Jack & Jill Bath
Suited For Vacation Home
