PLAN 120-195
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

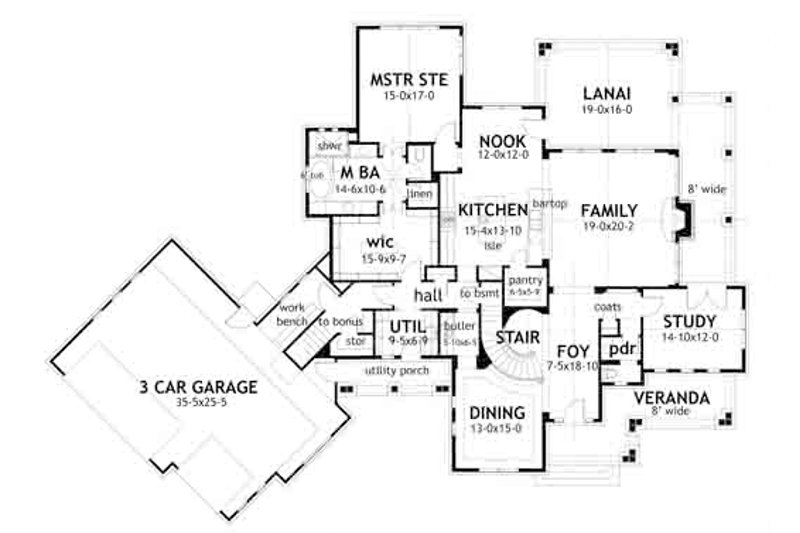

Floor Plan - Main Floor
Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 75' 6"
Height : 34'
Width : 105' 6"
Area
Bonus: 605 sq/ft
First Floor: 2459 sq/ft height 10'
Garage: 1153 sq/ft
Porch: 592 sq/ft
Second Floor: 525 sq/ft height 9'
Ceiling
Ceiling Details : Tray ceiling in Dining Room; Cathedral Ceiling in Family Room, Study and Master Suite
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12/12
Roof Framing : Conventional
Roof Type : Metal
Secondary Pitch : 3/12
Exterior Wall Framing
Exterior Wall Finish : Stone & Siding
Framing : 2 x 4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Play Flex Room
Storage Area
Unfinished Future Space
Workshop
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
More
Unusual Shape
Rooms
Bedroom 2:
width 11' 10" x depth 13'
Bedroom 3:
width 12' x depth 14'
Breakfast Nook:
width 12' x depth 12'
Butler's Pantry:
width 5' 10" x depth 6' 5"
Covered Front Porch:
242 sq/ft
Covered Rear Porch:
592 sq/ft width 19' x depth 16'
Dining Room:
width 13' x depth 15'
Family Room:
width 19' x depth 20' 2"
Foyer:
width 7' 5" x depth 18' 10"
Front Utility Porch:
95 sq/ft
Garage:
1153 sq/ft width 35' 5" x depth 25' 5"
Kitchen:
width 15' 4" x depth 13' 10"
Master Bath:
width 14' 6" x depth 10' 6"
Master Bedroom:
width 15' x depth 17'
Master Closet:
width 15' 9" x depth 9' 7"
Pantry:
width 6' 5" x depth 5' 9"
Study:
width 14' 10" x depth 12'
Utility Room:
width 9' 5" x depth 6' 9"
What's Included In This Plan Set
