This Modern Ranch House was designed around the concept of indoor-outdoor living. A Covered Living Porch runs the entire length of the house creating a wonderful outdoor living space that draws inside out, and outside in. The ability to flow in an out of every room reinforces the concept of indoor-outdoor living. This 2 bedroom, 2 bath house features an open Great Room, anchored by a generous Island Kitchen that is perfect for cooking and entertaining. The long narrow design suits both narrow sites and expansive lots.
Floor Plans

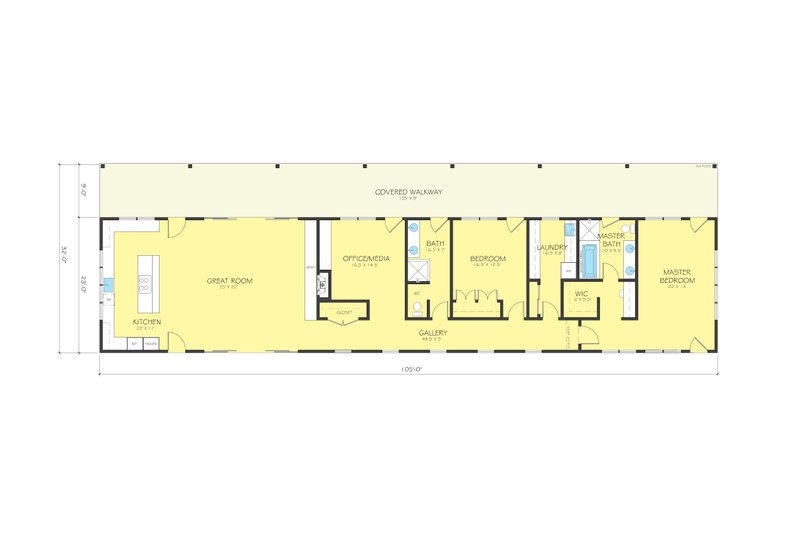

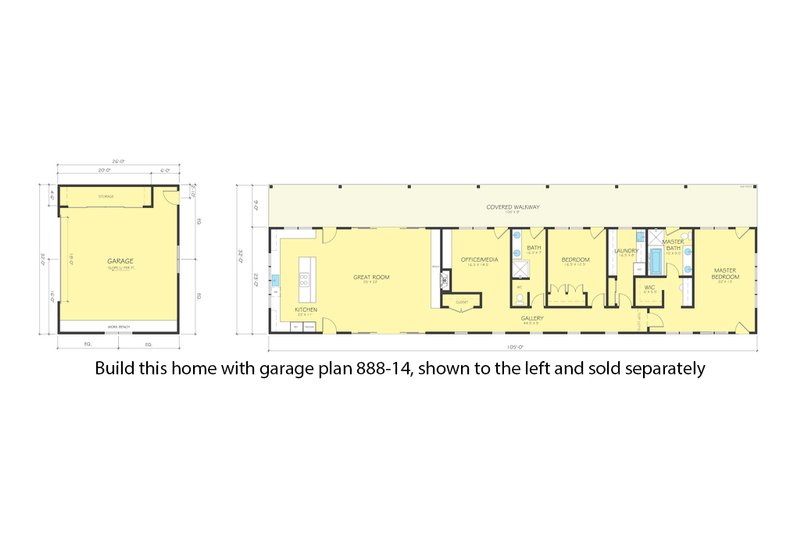

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 0"
Width : 105'
Area
Main Floor : 2415 sq/ft
Porch : 965 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Exterior Wall Framing
Exterior Wall Finish : Board and Batten Siding
Framing : 2X6
Additional Room Features
Den Office Study Computer
More
Economical To Build
What's Included In This Plan Set
- COVER PAGE: Cover Sheet: Showing architectural rendering of residence
