PLAN 942-24
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Floor Plan - Main Floor

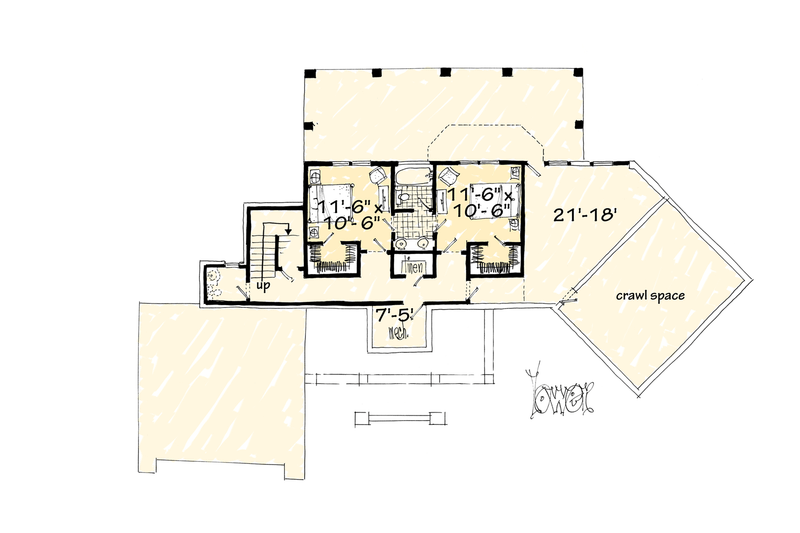

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 56'
Height : 33' 4"
Width : 96'
Area
Basement Living: 560 sq/ft
Basement Unfinished: 782 sq/ft
First Floor: 1400 sq/ft
Garage: 528 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6 Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Workshop
Outdoor Spaces
Courtyard
Covered Front Porch
Deck
More
Jack & Jill Bath
Rooms
Bedroom 2:
width 10' x depth 14'
Bedroom 3:
width 10' x depth 10'
Covered Front Porch:
width 27' x depth 8'
Covered Rear Deck:
width 25' x depth 8'
Dining Room:
width 12' x depth 10'
Garage:
528 sq/ft width 24' x depth 19'
Great Room:
width 15' x depth 15'
Hearth Room:
width 16' x depth 12'
Kitchen:
width 17' x depth 12'
Master bath:
width 9' x depth 5'
Master Bedroom:
width 14' x depth 15'
Master WIC:
width 5' 8" x depth 5'
Uncovered Rear Deck Area:
width 16' x depth 8'
Workshop:
440 sq/ft
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1850.00
$2750.00
$750.00
Foundation
$0.00
Framing
$0.00
Additional Options
$500.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
