PLAN 942-15
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

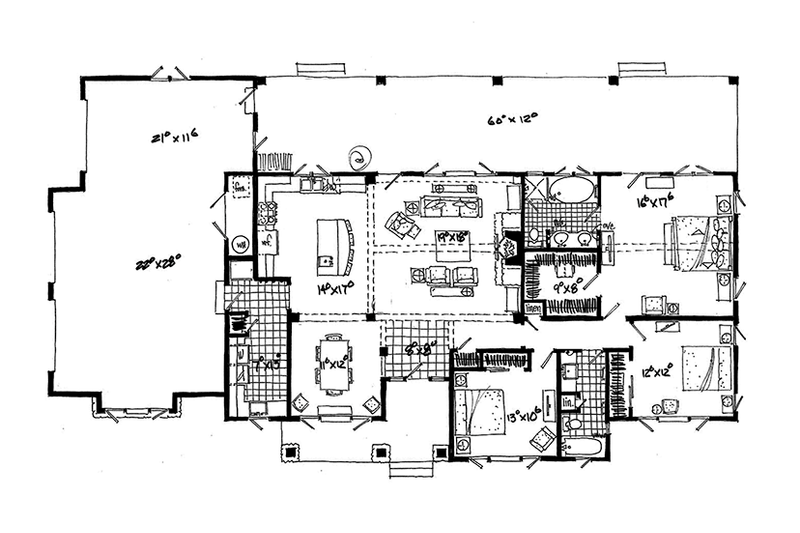

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 48'
Height : 24' 4"
Width : 86'
Area
First Floor: 2007 sq/ft
Garage: 929 sq/ft
Roof
Primary Pitch : 4:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6 Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
width 13' x depth 10' 6"
Bedroom 3:
width 12' 6" x depth 12'
Covered Rear Porch:
width 70' x depth 12'
Dining Room:
width 11' 6" x depth 12'
Foyer:
width 8' x depth 8'
Garage 1:
width 22' x depth 28'
Garage 2:
width 21' x depth 11' 6"
Great Room:
width 19' x depth 18'
Kitchen:
width 14' x depth 17'
Laundry/Mud Room:
width 7' x depth 13'
Master Bedroom:
width 16' 6" x depth 17' 6"
Master Closet:
width 9' x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

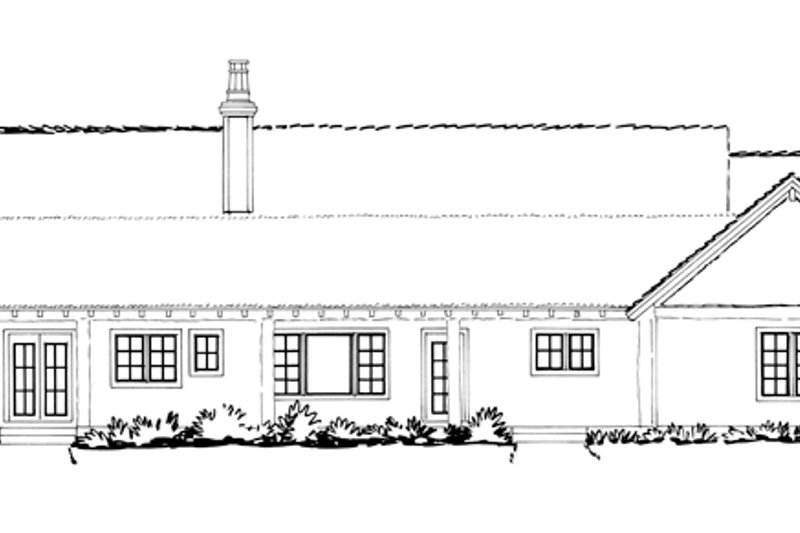

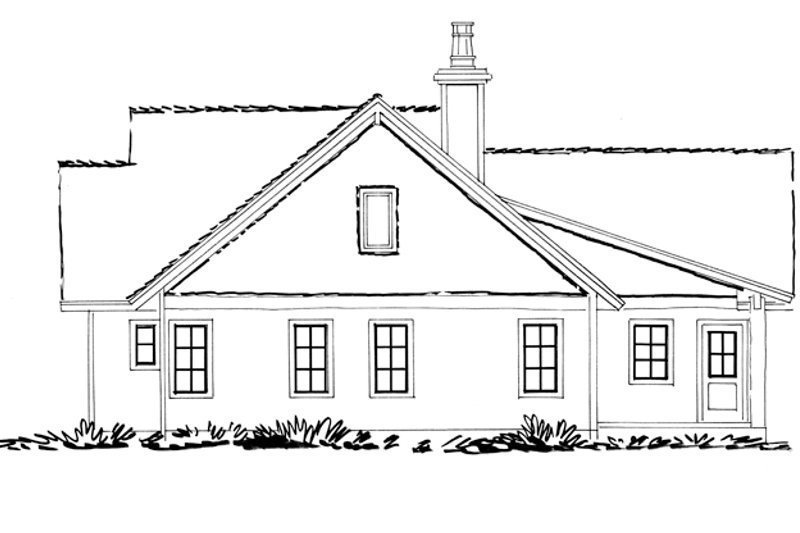

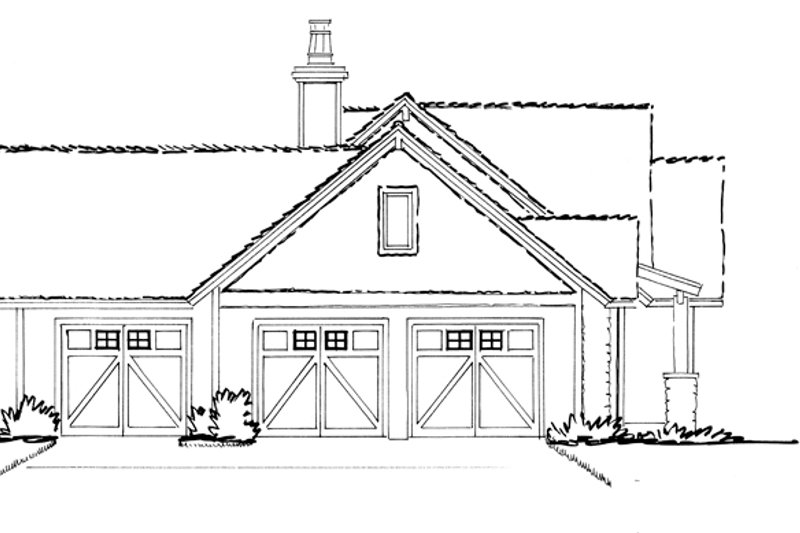

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$2775.00
$3250.00
$825.00
Foundation
$0.00
Framing
$0.00
Additional Options
$535.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
