PLAN 120-145
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

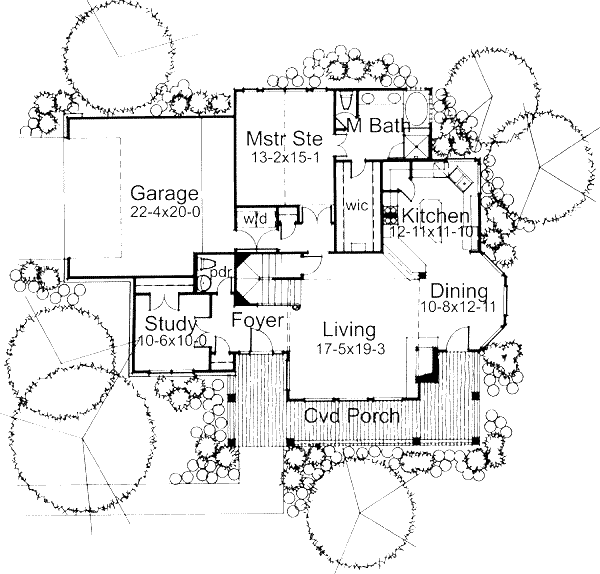

Floor Plan - Main Floor

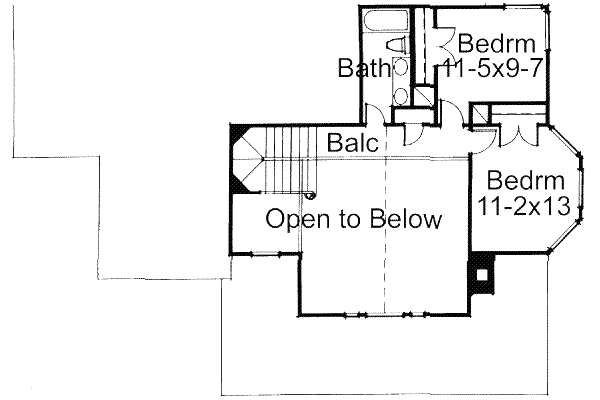

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 47' 6"
Height : 32'
Width : 59' 11"
Area
First Floor: 1450 sq/ft height 9'
Second Floor: 448 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Loft
Garage Features
Rear Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
3rd BR Closet:
15 sq/ft width 2' x depth 7' 9"
Basement Foundation:
2030 sq/ft width 49' 10" x depth 40' 9"
Bathroom 2:
50 sq/ft width 5' x depth 10' 1"
Bedroom 2:
144 sq/ft width 11' 2" x depth 12' 11"
Bedroom 2 Closet:
11 sq/ft width 5' 8" x depth 2'
Bedroom 3:
109 sq/ft width 11' 5" x depth 9' 7"
Bedroom 3 Closet:
11 sq/ft width 5' 8" x depth 2'
Bedroom 4 Closet:
15 sq/ft width 7' 10" x depth 2'
Crawlspace Foundation:
2030 sq/ft width 49' 10" x depth 40' 9"
Dining Room:
148 sq/ft width 11' 6" x depth 12' 11"
Foyer:
45 sq/ft width 7' 7" x depth 6'
Garage:
467 sq/ft width 22' 4" x depth 20' 11"
Hall:
50 sq/ft width 16' x depth 3' 2"
Hall Closet:
6 sq/ft width 4' 2" x depth 1' 6"
Kitchen:
190 sq/ft width 12' 11" x depth 14' 9"
Living Room:
335 sq/ft width 17' 5" x depth 19' 3"
Master Bathroom:
116 sq/ft width 12' 8" x depth 9' 2"
Master Bedroom:
198 sq/ft width 13' 2" x depth 15' 1"
Master Closet:
70 sq/ft width 6' x depth 11' 10"
Porch - Front:
282 sq/ft width 47' x depth 6'
Powder Room:
25 sq/ft width 5' 1" x depth 5' 1"
Study:
99 sq/ft width 10' 1" x depth 9' 11"
Utility Room:
32 sq/ft width 5' 5" x depth 6'
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$876.00
$876.00
$996.00
$1076.00
$1516.00
Foundation
$0.00
$0.00
$316.00
$316.00
Framing
$0.00
$196.00
Additional Options
$156.00
$40.00
$316.00
$132.00
$236.00
$31.20
$316.00
$156.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
