Key Specs
2106
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 120-243
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

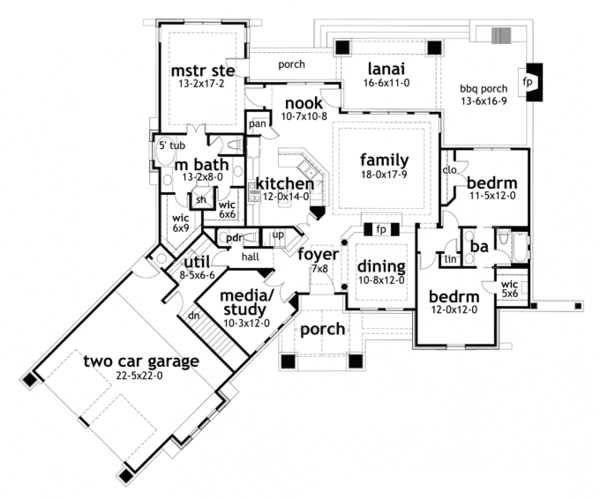

Floor Plans
Full Specs & Features
Dimension
Depth : 73' 10"
Height : 29' 3"
Width : 81' 2"
Area
Bonus: 395 sq/ft
First Floor: 2106 sq/ft
Garage: 583 sq/ft
Ceiling
Bonus Ceiling : 9'
Main Ceiling : 10'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Metal
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Fireplace
Outdoor Kitchen Grill
More
Jack & Jill Bath
Rooms
BBQ Porch:
width 13' 6" x depth 16' 9"
Bedroom 2:
width 12' x depth 12'
Bedroom 2 Closet:
width 5' x depth 6'
Bedroom 3:
width 11' 5" x depth 12'

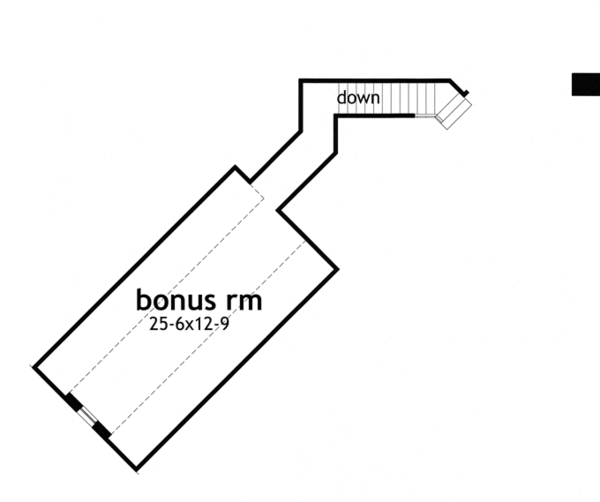

Bonus:
395 sq/ft width 25' 6" x depth 12' 9"
Breakfast:
width 10' 7" x depth 10' 8"
Dining:
width 10' 8" x depth 12'
Family Room:
width 18' x depth 17' 9"
Foyer:
width 7' x depth 8'
Garage:
583 sq/ft width 22' 5" x depth 22'
Kitchen:
width 12' x depth 14'
Lanai:
width 16' 6" x depth 11'
Master Bath:
width 13' 2" x depth 8'
Master Bedroom:
width 13' 2" x depth 17' 2"
Porch Front:
170 sq/ft
Porch Rear:
248 sq/ft
Study:
width 10' 3" x depth 12'
Utility:
width 8' 5" x depth 6' 6"
Walk In Closet:
width 6' x depth 6'
Walk In Closet:
width 8' 5" x depth 6' 6"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$876.00
$876.00
$996.00
$1076.00
$1516.00
Foundation
$0.00
$0.00
$316.00
$316.00
Framing
$0.00
$196.00
Additional Options
$156.00
$40.00
$316.00
$132.00
$236.00
$31.20
$316.00
$156.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
