PLAN 51-809
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This colonial design floor plan is 1893 sq ft and has 4 bedrooms and 2.5 bathrooms.
Floor Plans

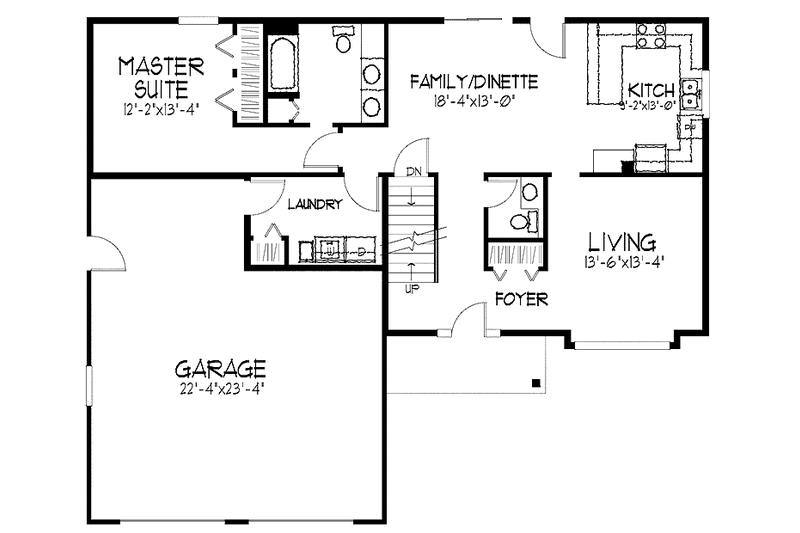

Floor Plan - Main Floor

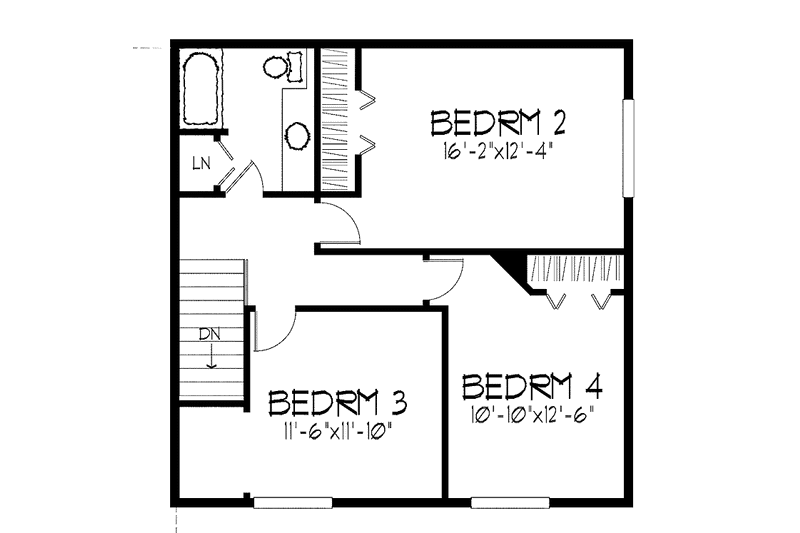

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 44'
Height : 25'
Width : 54'
Area
Basement Unfinished: 1125 sq/ft
First Floor: 1254 sq/ft
Second Floor: 639 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Living Room / Parlor
Main Floor Master Bedroom
Additional Room Features
Family Room Keeping Room
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

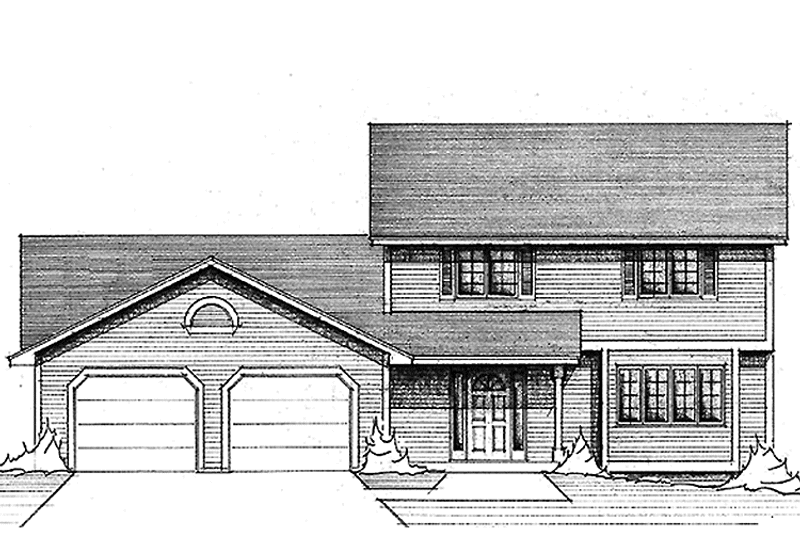

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Questions? Call 1-800-447-0027
Plan Set
5 Copy Set:
$1020.80
$1020.80
5 printed plan sets mailed to you.
PDF Set:
$1254.40
$1254.40
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set:
$1364.00
$1364.00
8 printed plan sets mailed to you.
CAD Set:
$1795.20
$1795.20
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$200.00
$200.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$200.00
$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$48.00
$48.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$31.20
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$40.00
$40.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
