PLAN 70-1485
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

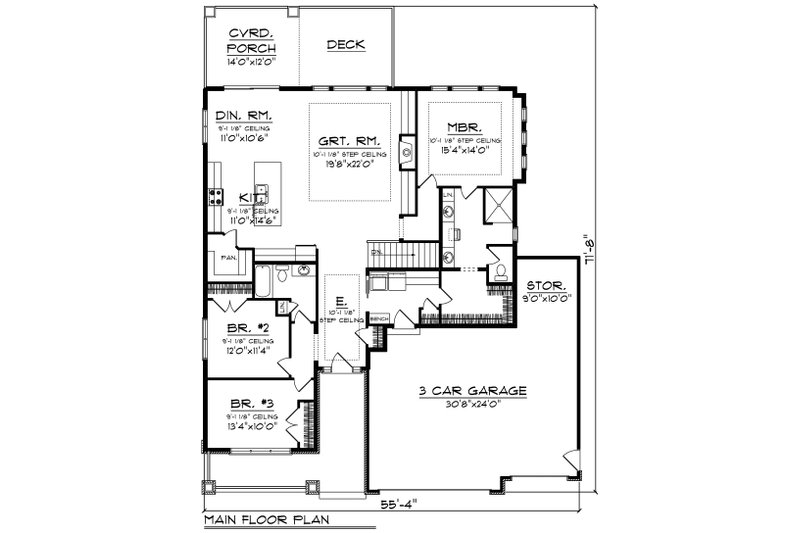

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 71' 8"
Height : 25'
Width : 55' 4"
Area
Garage : 825 sq/ft
Main Floor : 2005 sq/ft
Porch : 400 sq/ft
Ceiling
Ceiling Details : 9' to 10' step ceiling in Entry, Great Room & Master Bedroom
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf; Snow 30 psf; Dead 17 psf
Roof Type : Shingle
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding/Shingle
Framing : 2 x 6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
More
Empty Nester
Rooms
Bedroom 2:
width 12' x depth 11' 4"
Bedroom 3:
width 13' 4" x depth 10'
Covered Front Porch:
width 24' x depth 18'
Covered Rear Porch:
width 14' x depth 12'
Deck:
width 14' x depth 12'
Dining Room:
width 11' x depth 10' 6"
Foyer:
width 7' x depth 14' 8"
Garage:
width 30' 8" x depth 24'
Great Room:
width 19' 8" x depth 22'
Hall Bath :
width 9' x depth 8' 4"
Kitchen:
width 11' x depth 14' 6"
Laundry:
width 10' 4" x depth 8'
Master Bedroom:
width 15' 4" x depth 14'
Master Closet:
width 10' 6" x depth 8' 6"
Pantry:
width 6' 8" x depth 7'
Storage:
width 9' x depth 10'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
