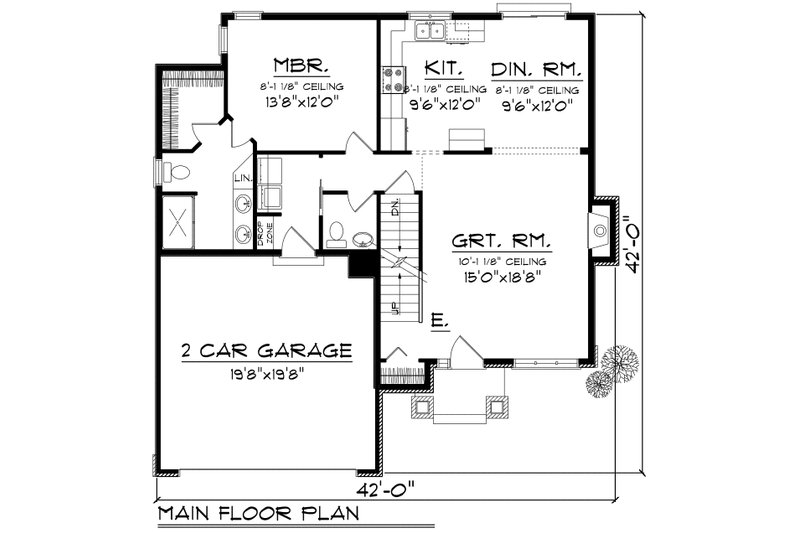

Dream House Plan - Traditional Floor Plan - Main Floor Plan #70-1163

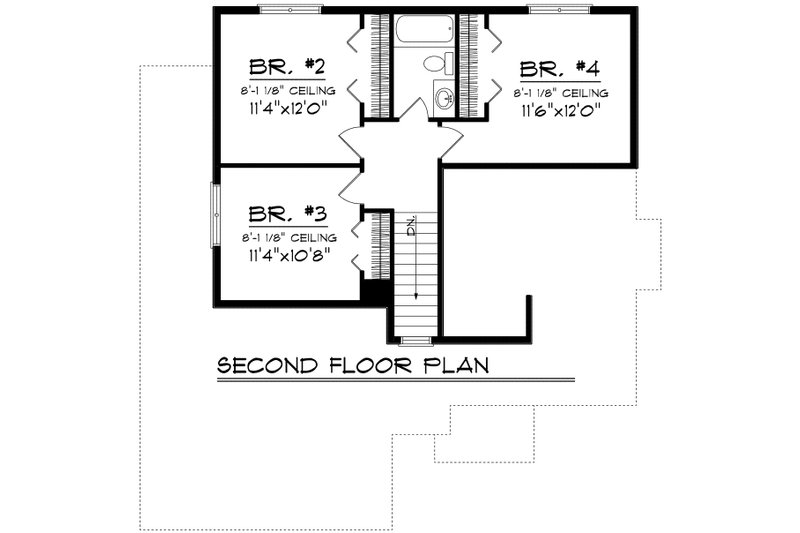

Dream House Plan - Traditional Floor Plan - Upper Floor Plan #70-1163

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional House Plans

Key Specs

1690
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$335.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$68.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$63.75

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $827.05

You save $145.95 (15% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1163

Home > Style > Traditional House Plans

Key Specs

1690
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Friends and family will enjoy visiting this traditional two-story delight. While walking into the home, you are greeted by the comfortably of the living room, with ten feet tall ceiling and picturesque fireplace. The kitchen combines with the dining room giving you space to move around freely. The master bedroom invites you in, and features a full bathroom with walk in closet. Stepping upstairs we find three sizeable bedrooms and full bathroom, excellent for children or an overnight guest. A two-stall garage completes this home.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 42'

Height : 26' 8"

Width : 42'

Area

First Floor: 1079 sq/ft height 8' 1"

Garage: 400 sq/ft

Second Floor: 611 sq/ft height 8' 1"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Grt Rm/Foyer 10'

Lower Ceiling : 8'

Main Ceiling : 8'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Asphalt

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Stone, Shake, Siding

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Great Room Living Room

Main Floor Laundry

Unfinished Future Space

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

width 11' 4" x depth 12'

Bedroom 2 Closet:

width 2' 1" x depth 8' 4"

Bedroom 3:

width 11' 4" x depth 10' 8"

Bedroom 3 Closet:

width 2' 1" x depth 5' 4"

Bedroom 4:

width 11' 6" x depth 12'

Bedroom 4 Closet:

width 2' 1" x depth 8' 4"

Covered Front Porch:

width 8' 2" x depth 4' 8"

Dining Room:

width 9' 6" x depth 12'

Garage:

400 sq/ft width 19' 8" x depth 19' 8"

Great Room:

width 15' x depth 18' 8"

Hall:

width 6' x depth 7'

Hall Bath:

width 5' x depth 8' 4"

Hall Closet:

width 4' 1" x depth 2'

Kitchen:

width 9' 6" x depth 12'

Laundry Room:

width 5' 9" x depth 5' 4"

Master Bath:

width 8' 4" x depth 8' 10"

Master Closet:

width 5' 8" x depth 7' 3"

Powder Room:

width 5' x depth 5'

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$827.05

5 printed plan sets mailed to you.

8 Copy Set:
$863.60

8 printed plan sets mailed to you.

PDF Set:
$1032.75

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1032.75

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1632.85

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$335.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$335.75

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$335.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$68.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$63.75

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
