PLAN 1066-301
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

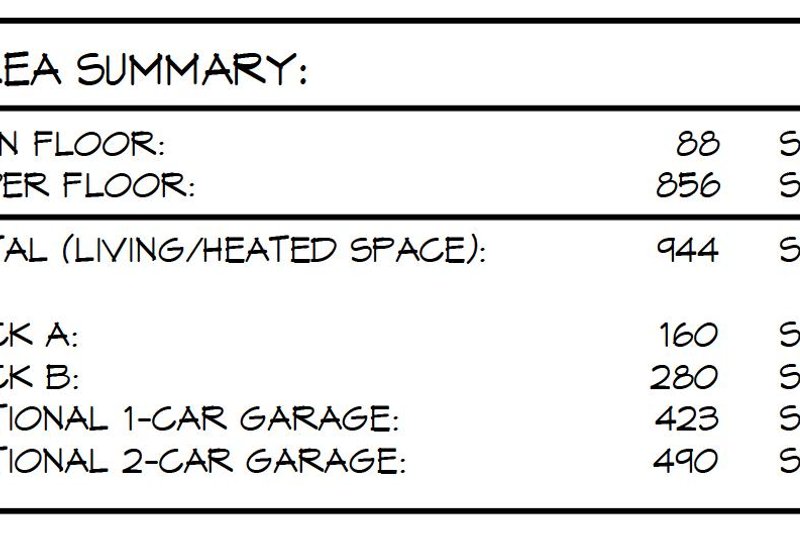

This modern design floor plan is 944 sq ft and has 1 bedrooms and 1.5 bathrooms.
Floor Plans

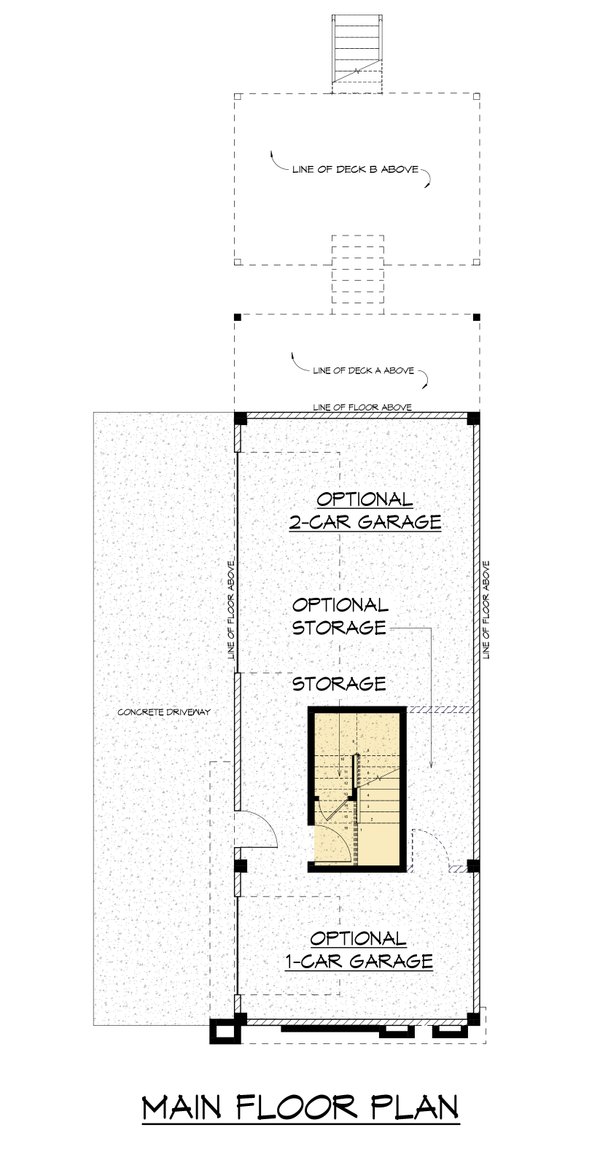

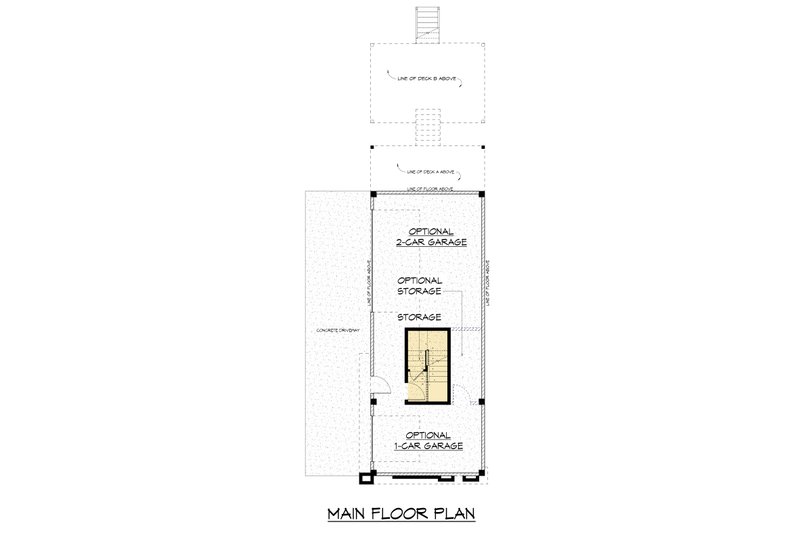

Floor Plan - Main Floor

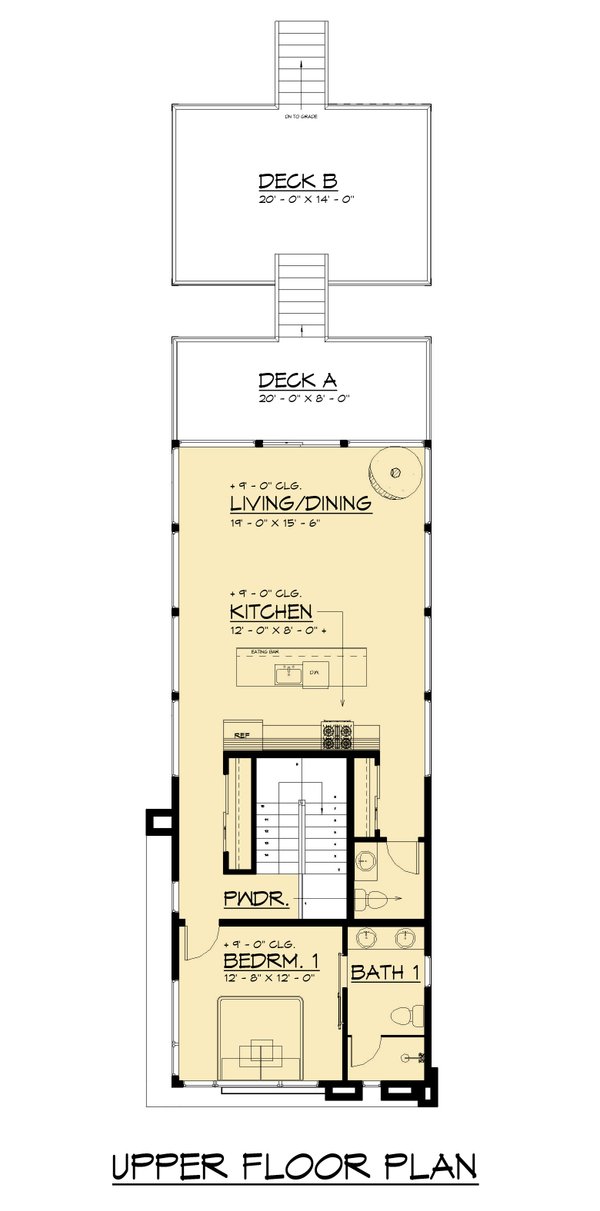

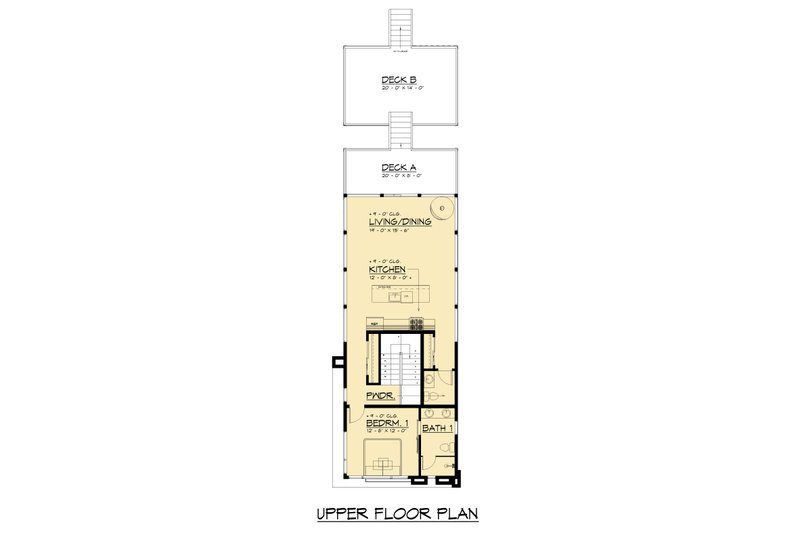

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 58'
Height : 21' 6"
Width : 20'
Area
Decks : 440 sq/ft
Lower Floor : 88 sq/ft
Main Floor : 856 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : .25/12
Roof Framing : Truss
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Garage Features
Carport Porte Cochere
Garage Under
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Balcony
Grill Deck Sundeck
More
Empty Nester
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
- Cover Sheet: 3D Rendering and Project Information.
- General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
- Floor Plans (lower, main, upper, etc.) showing all doors and windows.
- Elevations from all four sides showing material callouts.
- Wall framing and sectional detail sheets.
- Building Cross Sections showing stair and ceiling height details.
- Window and Door schedule.
- Overhead roof plan showing peaks, valleys, and pitch.
- Foundation Plan showing perimeter and footing details.
- Misc. notes and details.
- *Please note that any structural engineering sheets included with this plan set are for reference only.
