Key Specs
8827
sq ft
4
Beds
5.5
Baths
2
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 928-380
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 79'
Height : 28' 6"
Width : 80'
Area
Garage : 736 sq/ft

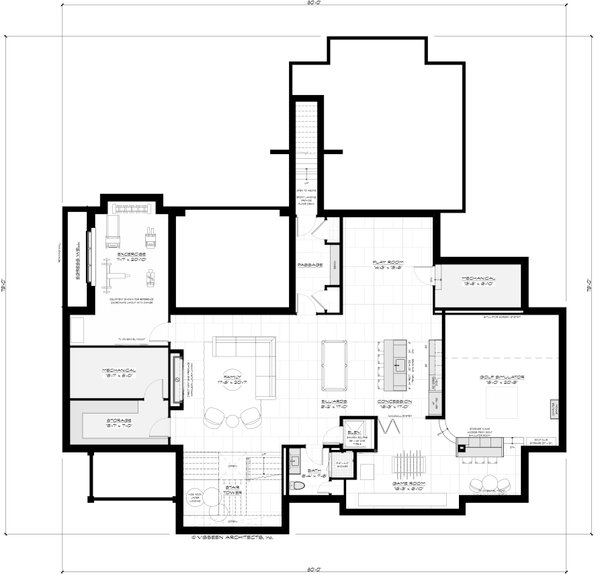

Lower Floor : 2754 sq/ft

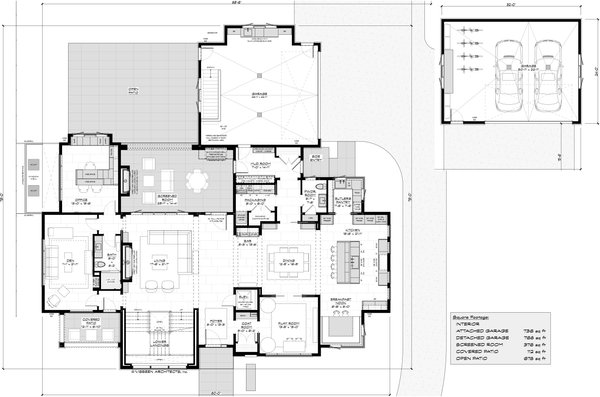

Main Floor : 2958 sq/ft
Storage : 411 sq/ft

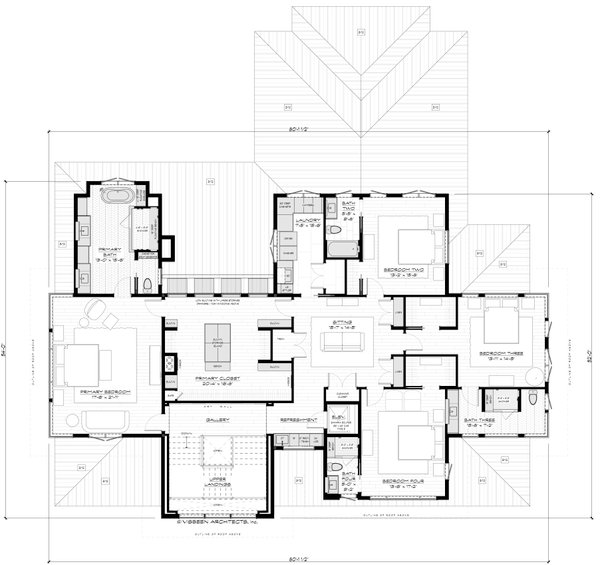

Upper Floor : 2704 sq/ft
Ceiling
Lower Ceiling : 9'
Main Ceiling : 9' 10"
Upper Ceiling Ft : 9' 1"
Roof
Primary Pitch : 4/12
Roof Framing : truss
Secondary Pitch : 3/12
Exterior Wall Framing
Exterior Wall Finish : stucco, brick, wood
Framing : 2x6
Bedroom Features
Guest Suite
Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Play Flex Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Wet Bar
Garage Features
Rear Entry Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Zero Lot Lines
Outdoor Spaces
Courtyard
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Screened Porch
More
Elevator
Empty Nester
What's Included In This Plan Set
Please note: If you are building this plan in the state of Michigan, please give us a call to confirm availability. The designer has some geographic restrictions in Michigan.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
-
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Important: If you are ordering a CAD set, or Right-Reading Reverse on this plan, please allow two weeks for delivery based on the current design schedule.
Plan Set
$1995.00
$3995.00
Foundation
$0.00
Framing
$0.00
Additional Options
$195.00
$165.00
$495.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
