Plan Description
This contemporary design floor plan is 800 sq ft and has 0 bedrooms and 0 bathrooms.
Floor Plans

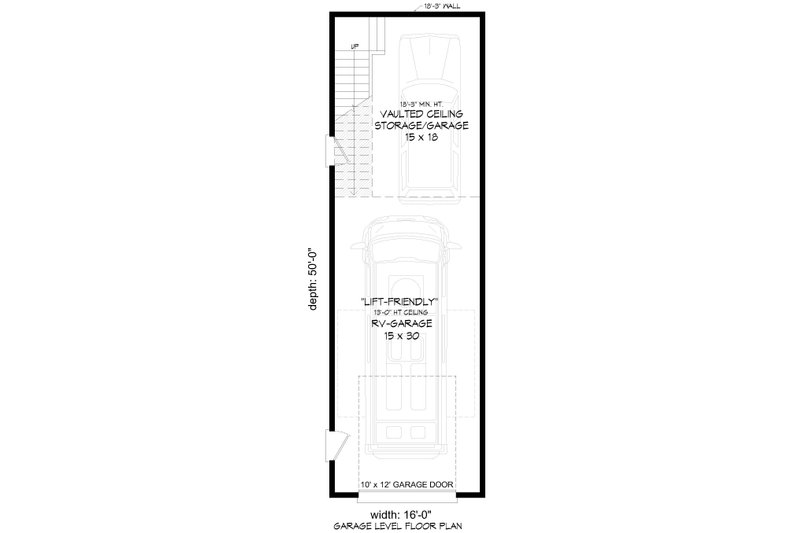

Floor Plan - Main Floor

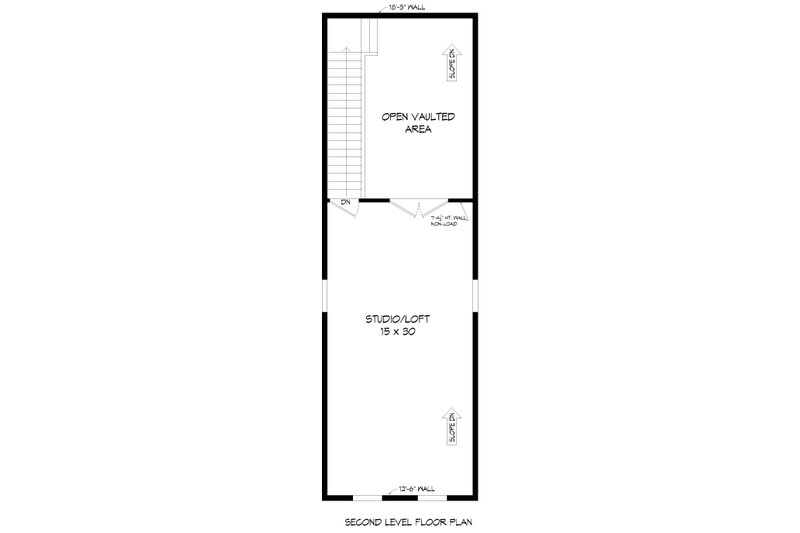

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 27' 7"
Width : 16'
Area
Bonus : 495 sq/ft
Garage : 800 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 8'
Ceiling Details : loft ceiling slopes from 7'-4 1/2" to 12'-6"
Garage Ceiling : 13'
Roof
Primary Pitch : 2:12
Roof Framing : Conventional
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
Additional Room Features
Loft
Garage Features
Front Entry Garage
RV Garage
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
