This contemporary design floor plan is 654 sq ft and has 1 bedrooms and 1 bathrooms.
Floor Plans

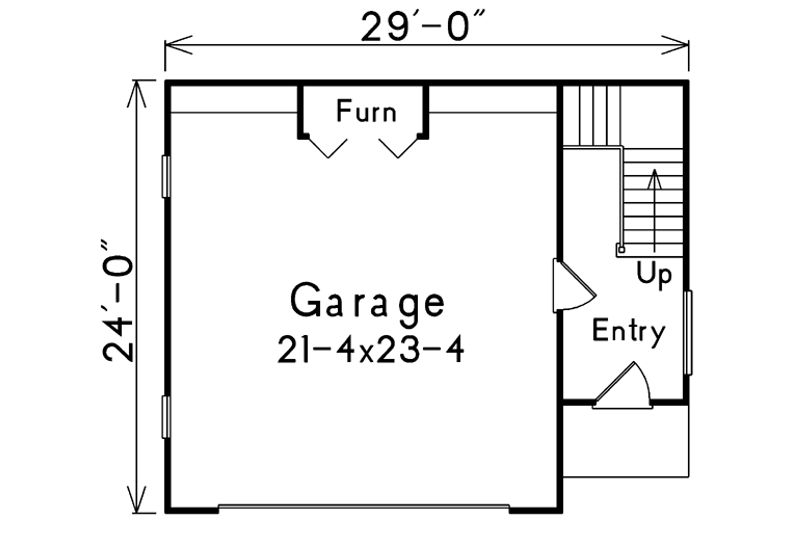

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 24'
Height : 24'
Width : 29'
Area
First Floor: 126 sq/ft height 8'
Second Floor: 528 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Lot Characteristics
Suited For Narrow Lot
More
Suited For Vacation Home
Rooms
Bedroom 1:
136 sq/ft width 10' x depth 13' 8"
Garage:
497 sq/ft width 21' 4" x depth 23' 4"
Living Room:
167 sq/ft width 15' 8" x depth 10' 8"
