PLAN 1039-4
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

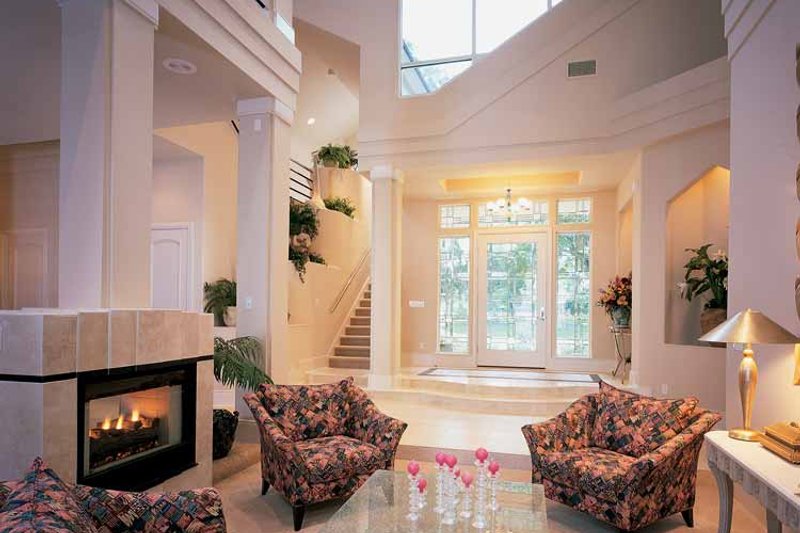

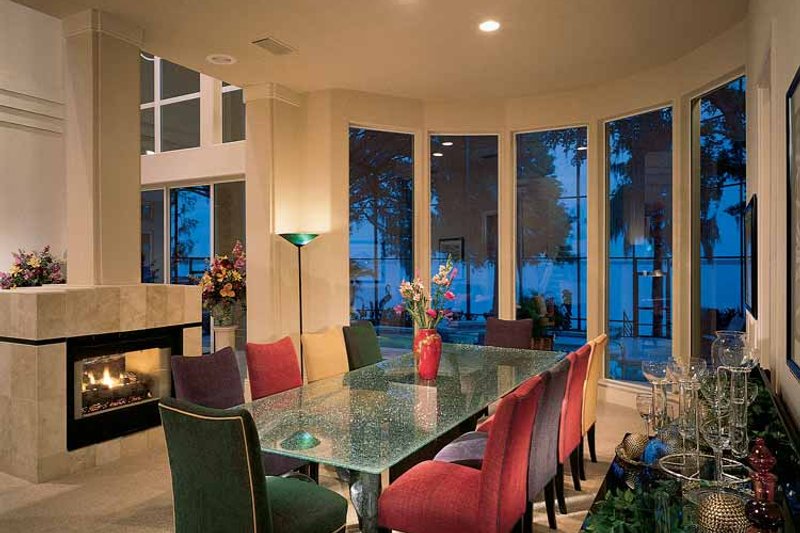

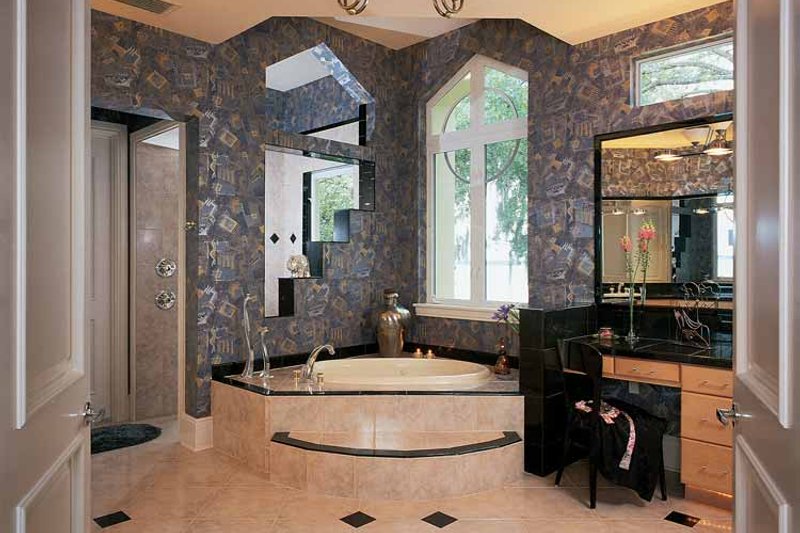

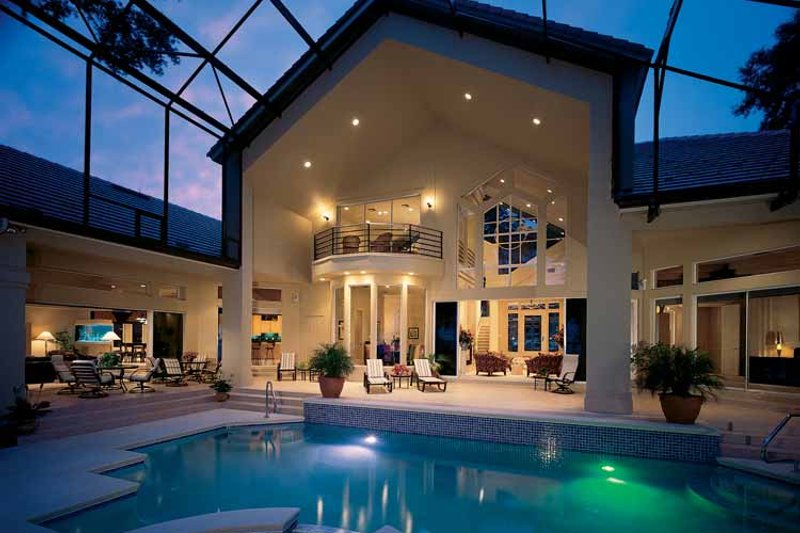

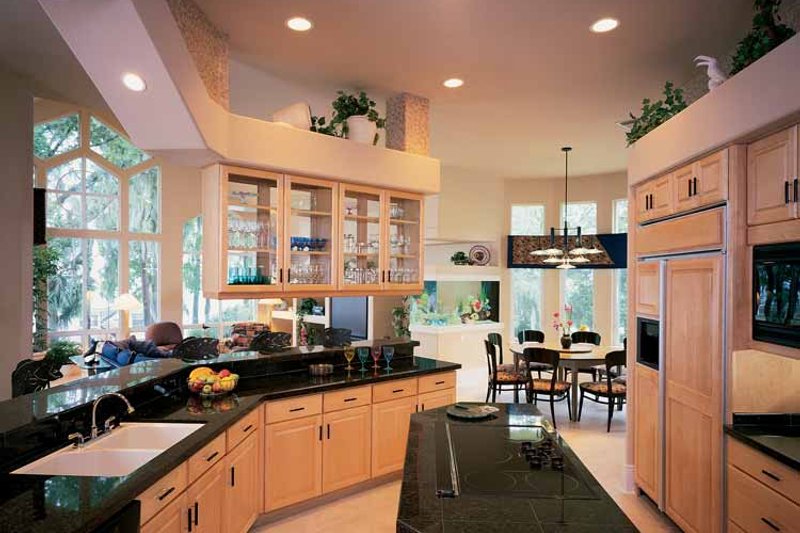

Uncanny proportions and a sprawling footprint create a spectacular design that's livable and deeply comfortable, with spaces--large and small--that feel just right. A sliding wall of glass in the parlor allows ocean views and connects the interior with the great outdoors. The formal dining room boasts a vaulted bay window and a through-fireplace shared with the parlor. The master wing provides a guest suite, linen storage and a cabana bath in addition to a rambling homeowner's retreat. A private vestibule leads to a spacious library with two walls of built-in bookcases and a triple-window view of the side property. A sitting area with wraparound windows extends the master bedroom and offers natural light and views. Double doors lead to a roomy bath with two walk-in closets. On the opposite side of the plan, a gourmet kitchen features a cooktop and food preparation island counter and private access to the lanai. The breakfast nook provides a bay window and leads to the family room, which offers access to the outdoors. On the upper level, a billiard loft and balcony overlook the pool area.
Floor Plans

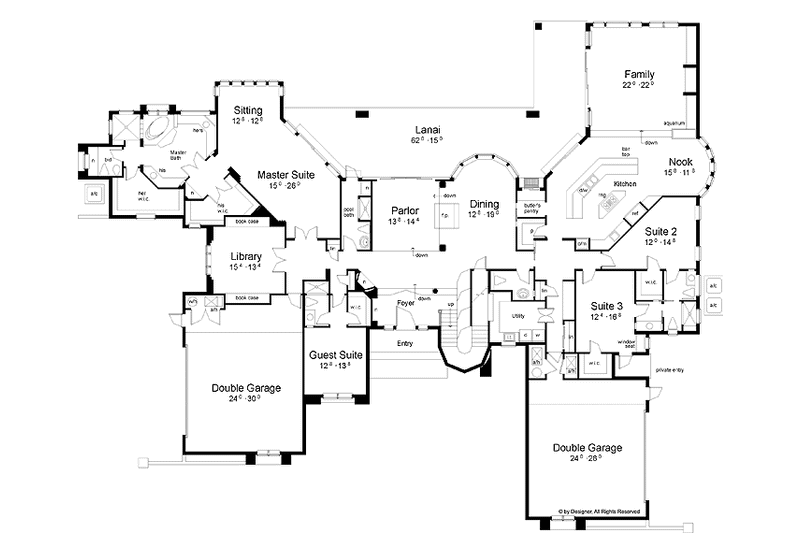

Floor Plan - Main Floor

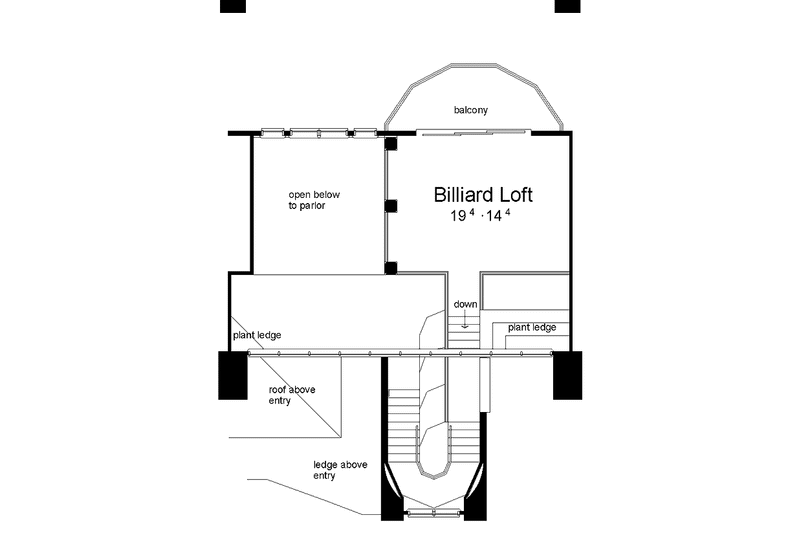

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 103' 8"
Height : 33'
Width : 127'
Area
First Floor: 5226 sq/ft height 11'
Second Floor: 372 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Living Room / Parlor
Guest Suite
Split Bedrooms
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$4758.30
$4758.30
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$4758.30
$4758.30
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$8089.45
$8089.45
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Block:
$0.00
$0.00
Concrete Block Exterior Walls (Upper Levels may be wood-framed)
Additional Options
Additional Construction Sets:
$51.00
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$85.00
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$170.00
$170.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$46.75
$46.75
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
