PLAN 17-2006
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
A stunning stairway is centered in the two-story foyer, and beyond is the great room, also with a double-height ceiling, which overlooks a huge covered deck and separates living areas from sleeping quarters. The kitchen, laundry, pantry and hearth room are situated on the garage side of the house, while the master suite is located opposite. The upper floor hosts two bedrooms, a bath and a game room, and the lower level contains a fourth bedroom, bath and billiards room with kitchenette.
Floor Plans

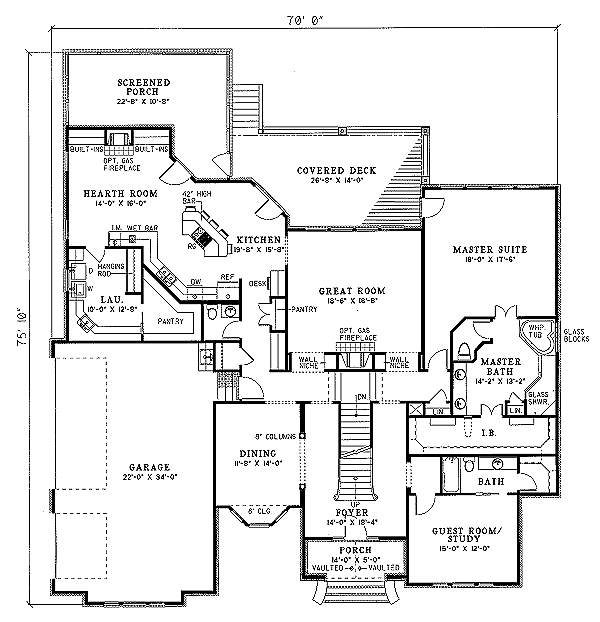

Floor Plan - Main Floor

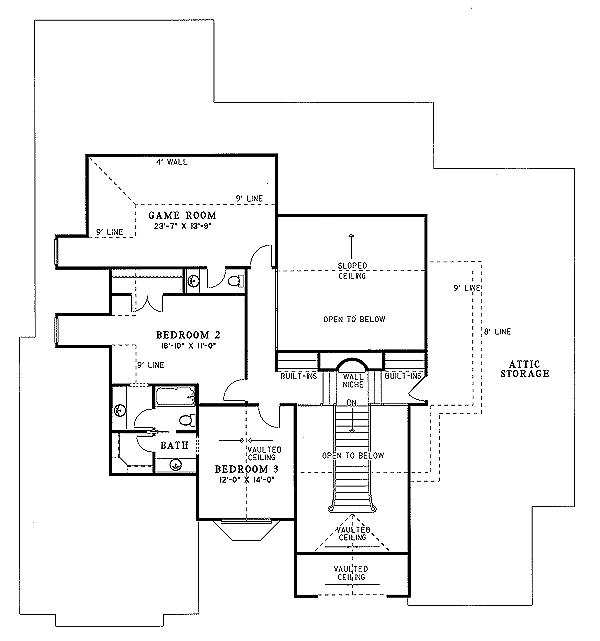

Floor Plan - Upper Floor

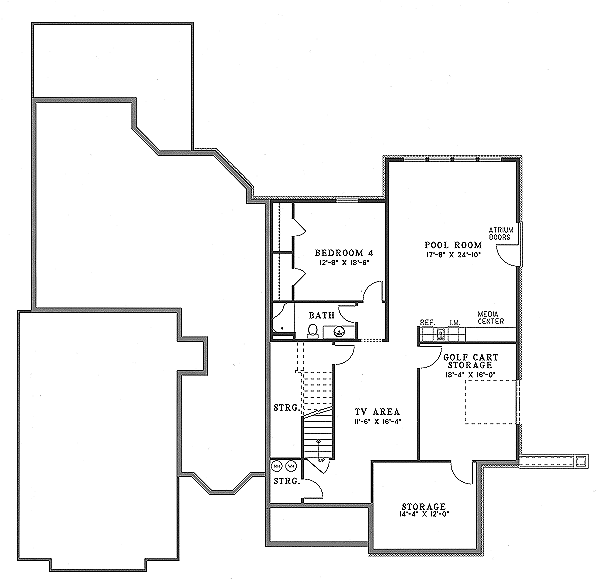

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 76'
Width : 70'
Area
Lower Floor : 1616 sq/ft
Main Floor : 2777 sq/ft
Upper Floor : 1170 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Play Flex Room
Storage Area
Sunroom
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Rear Porch
Screened Porch
More
Jack & Jill Bath
