Key Specs
5331
sq ft
5
Beds
6
Baths
2
Floors
4
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 569-31
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 95'
Height : 37' 2"
Width : 71'
Area
Basement Living: 1145 sq/ft
First Floor: 2413 sq/ft
Garage: 816 sq/ft
Second Floor: 1773 sq/ft
Roof
Primary Pitch : 4:12
Roof Framing : Combination Truss/Conventional
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding/Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Upstairs Laundry
Vaulted / Cathedral Ceilings
Wine Cellar
Outdoor Spaces
Courtyard
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Fireplace
Rooms
Bedroom 3:
229 sq/ft width 13' 4" x depth 17' 3"
Bedroom 4:
181 sq/ft width 14' 5" x depth 12' 7"
Breakfast Room:
205 sq/ft width 10' x depth 20' 6"
Deck:
290 sq/ft width 21' 6" x depth 13' 6"
Deck:
98 sq/ft width 7' x depth 14'
Dining Room:
260 sq/ft width 13' x depth 20'
Foyer:
135 sq/ft width 13' 6" x depth 10'
Garage:
862 sq/ft width 37' 6" x depth 23'
Garage Two:
308 sq/ft width 23' 7" x depth 13' 1"
Great Room:
410 sq/ft width 20' 6" x depth 20'
Guest Suite:
203 sq/ft width 15' 4" x depth 13' 3"
Kitchen:
148 sq/ft width 9' x depth 16' 6"
Living Room:
604 sq/ft width 20' 6" x depth 29' 6"
Loft:
145 sq/ft width 14' 6" x depth 10'
Master Suite:
312 sq/ft width 16' x depth 19' 6"
Media Room:
379 sq/ft width 20' 6" x depth 18' 6"
Mud Room:
104 sq/ft width 12' 7" x depth 8' 4"
Office:
163 sq/ft width 12' 7" x depth 13'
Pantry:
40 sq/ft width 9' x depth 4' 6"
Patio:
290 sq/ft width 21' 6" x depth 13' 6"
Patio:
935 sq/ft width 14' 6" x depth 64' 6"
Porch - Right:
60 sq/ft width 6' x depth 10'
Recreation Room:
363 sq/ft width 20' 6" x depth 17' 9"
Teen Suite:
199 sq/ft width 14' 9" x depth 13' 6"
Utility Room:
93 sq/ft width 12' 7" x depth 7' 5"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

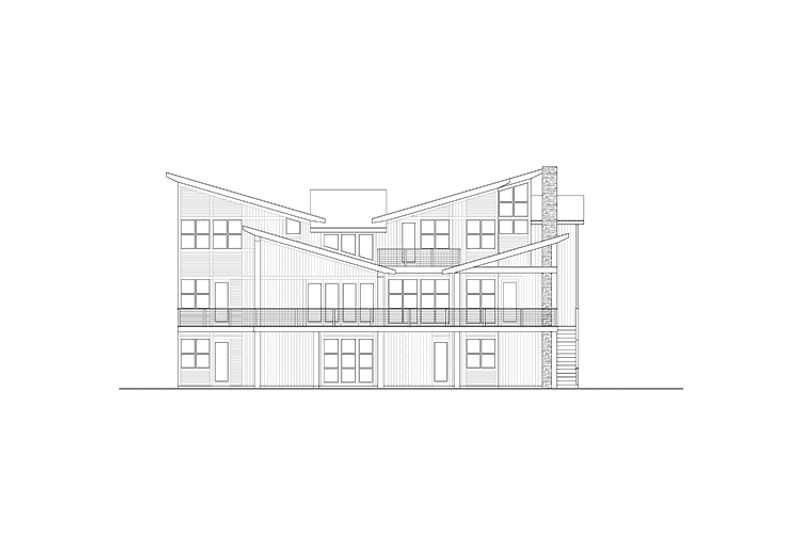

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1280.00
$2560.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
