PLAN 928-263
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

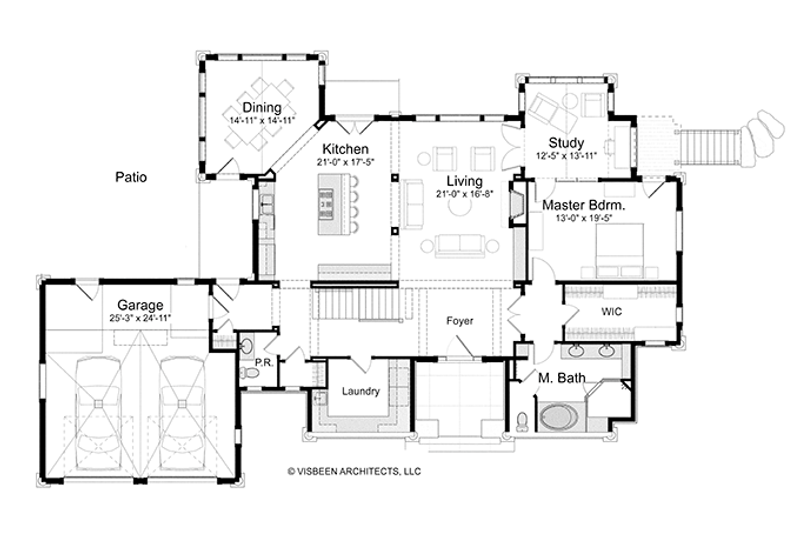

Floor Plan - Main Floor

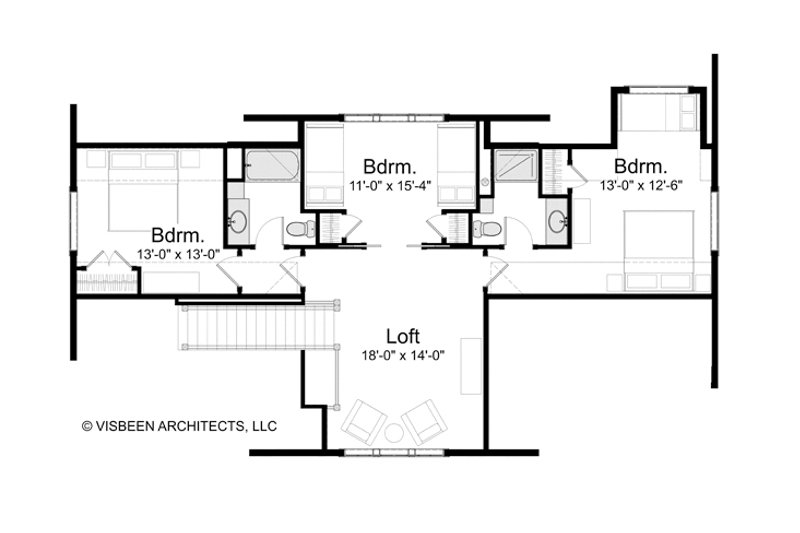

Floor Plan - Upper Floor

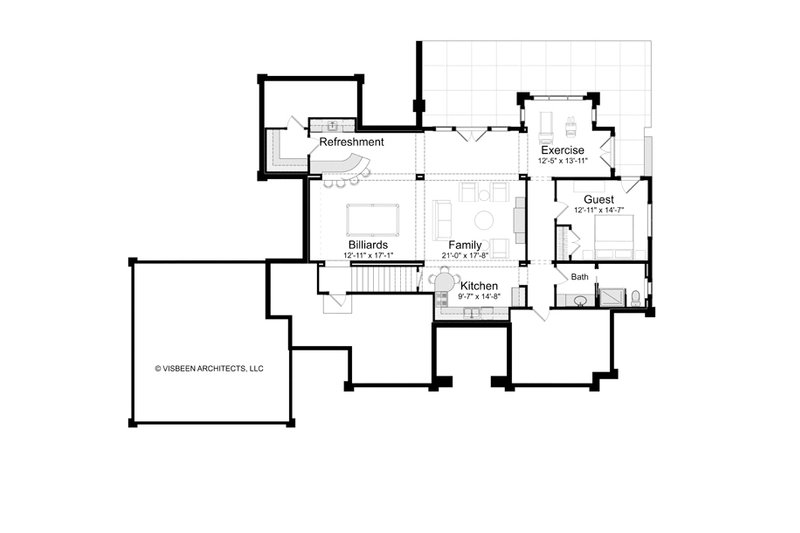

Floor Plan - Lower Floor
Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 56'
Height : 30' 2"
Width : 84'
Area
Basement Living: 1673 sq/ft height 9'
First Floor: 2378 sq/ft height 10'
Second Floor: 1089 sq/ft height 8'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Log
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Mud Room
Open Floor Plan
Wine Cellar
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Rooms
Bedroom 2:
width 13' x depth 13'
Bedroom 3:
width 11' x depth 15' 4"
Bedroom 4:
width 13' x depth 12' 6"
Billiards:
width 12' 11" x depth 17' 1"
Dining:
width 14' 11" x depth 14' 11"
Exercise:
width 12' 5" x depth 13' 11"
Family Room:
width 21' x depth 17' 8"
Garage:
width 25' 3" x depth 24' 11"
Guest Suite:
width 12' 11" x depth 14' 7"
Kitchen:
width 21' x depth 17' 5"
Kitchen:
width 9' 7" x depth 14' 8"
Living Room:
width 21' x depth 16' 8"
Master Bedroom:
width 13' x depth 19' 5"
Study:
width 12' 5" x depth 13' 11"
