PLAN 117-859
Photographs may show modified designs.
- Jump to:
- All (9)
- Floor plans (3)
Get Personalized Help
Key Specs
3880
sq ft
4
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 117-859
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

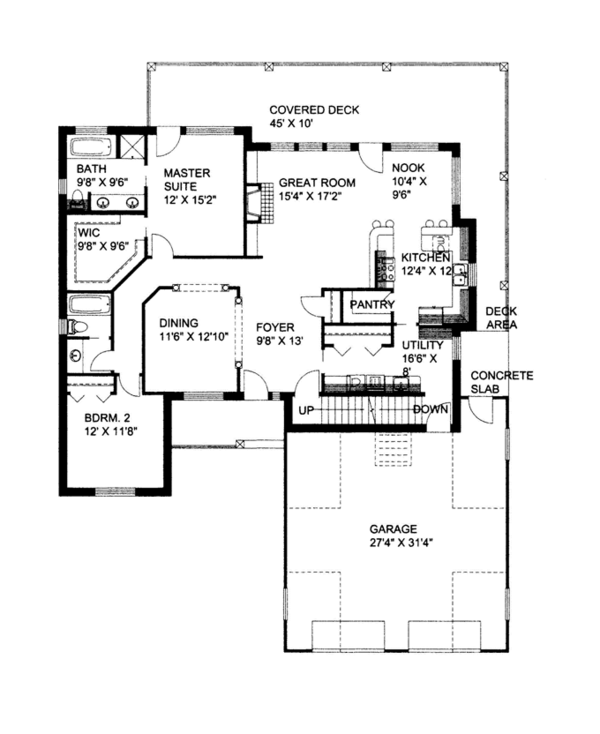

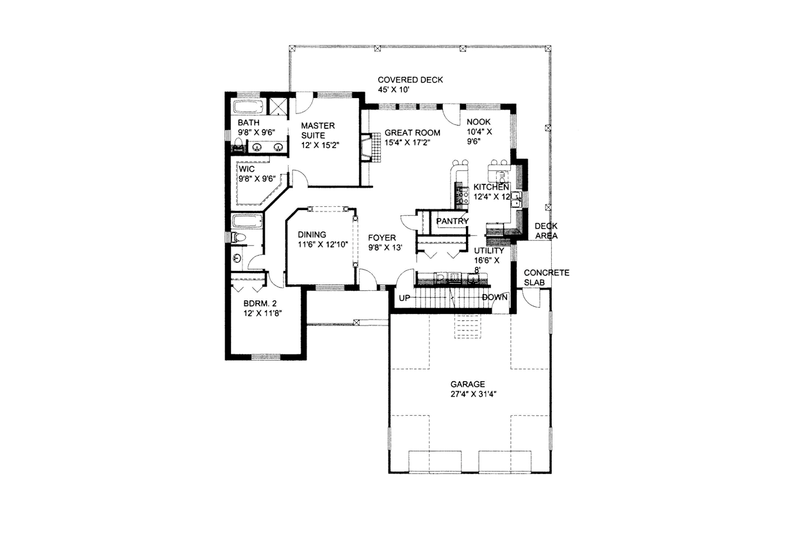

Floor Plan - Main Floor

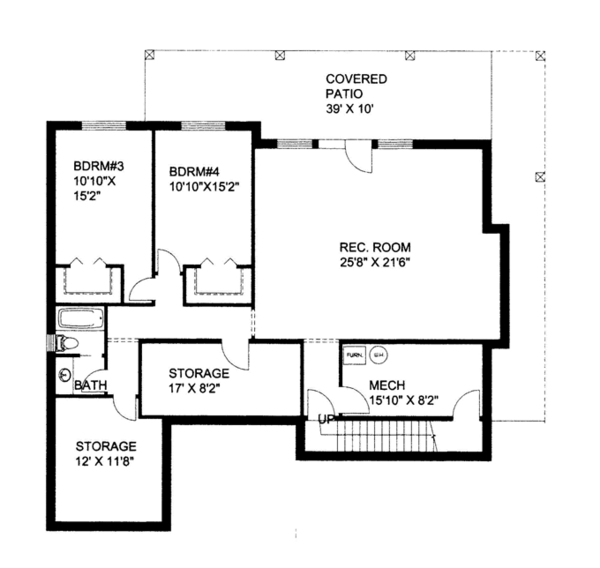

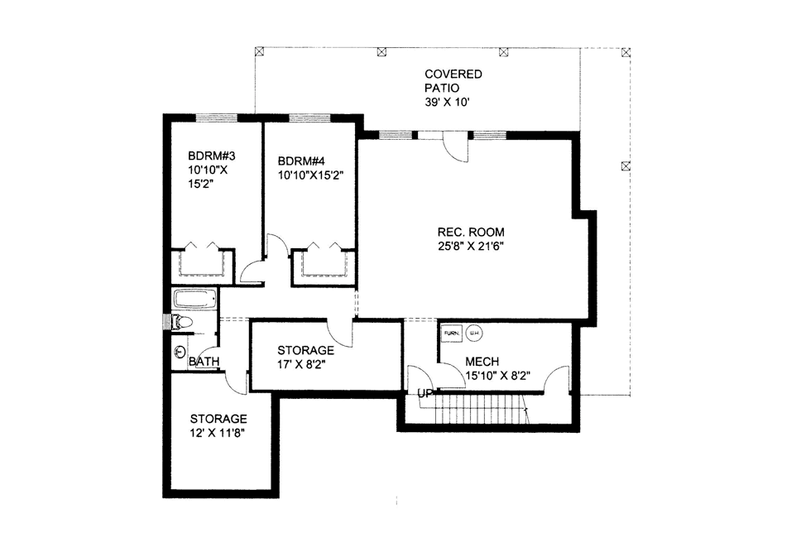

Floor Plan - Lower Floor

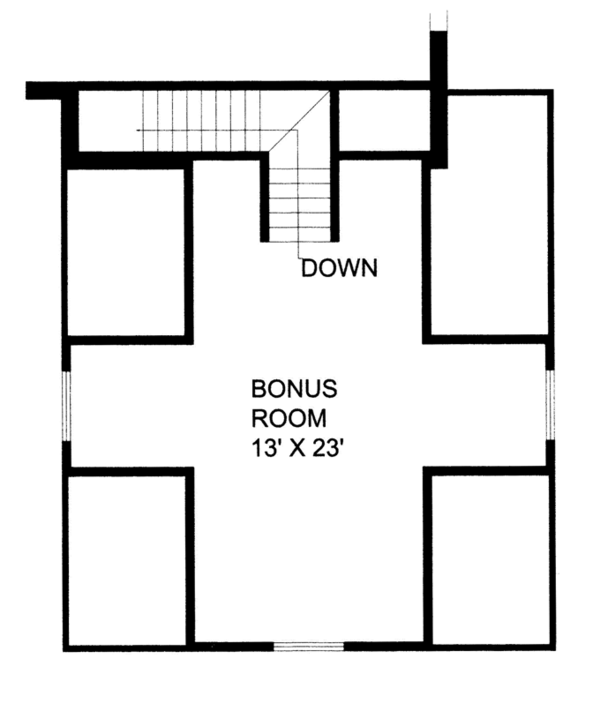

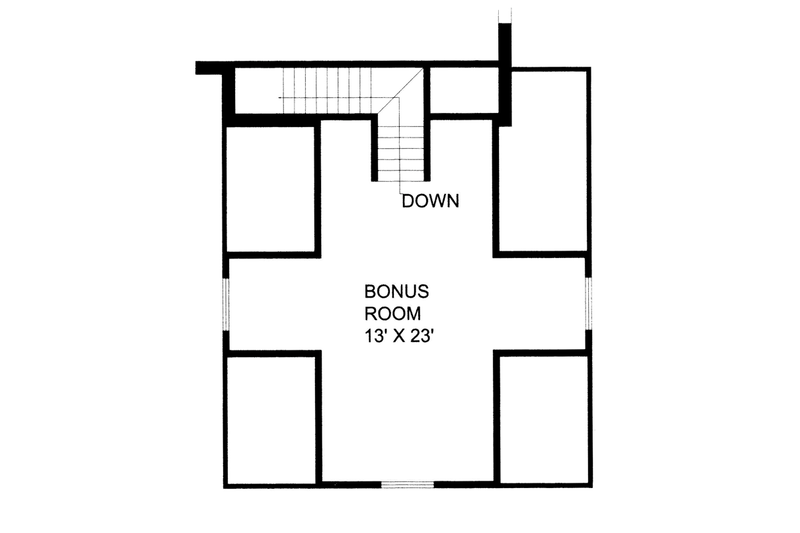

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 46' 2"
Height : 25' 10"
Width : 56'
Area
Basement Living: 1940 sq/ft
Bonus: 504 sq/ft
First Floor: 1940 sq/ft height 9'
Garage: 797 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : ICF (Insulated Concrete Forms)
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Rooms
Bedroom 2:
width 12' x depth 11' 8"
Bedroom 3:
width 10' 10" x depth 15' 2"
Bedroom 4:
width 10' 10" x depth 15' 2"
Bonus Room:
504 sq/ft width 13' x depth 23'
Covered Rear Deck:
width 45' x depth 10'
Covered Rear Patio:
width 39' x depth 10'
Dining Room:
width 11' 6" x depth 12' 10"
Foyer:
width 9' 8" x depth 13'
Garage:
797 sq/ft width 27' 4" x depth 31' 4"
Great Room:
width 15' 4" x depth 17' 2"
Kitchen:
width 12' 4" x depth 12'
Master Bath:
width 9' 8" x depth 9' 6"
Master Closet:
width 9' 8" x depth 9' 6"
Master Suite:
width 12' x depth 15' 2"
Mechanical:
width 15' 10" x depth 8' 2"
Nook:
width 10' 4" x depth 9' 6"
Rec Room:
width 25' 8" x depth 21' 6"
Storage 1:
width 12' x depth 11' 8"
Storage 2:
width 17' x depth 8' 2"
Utility Room:
width 16' 6" x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

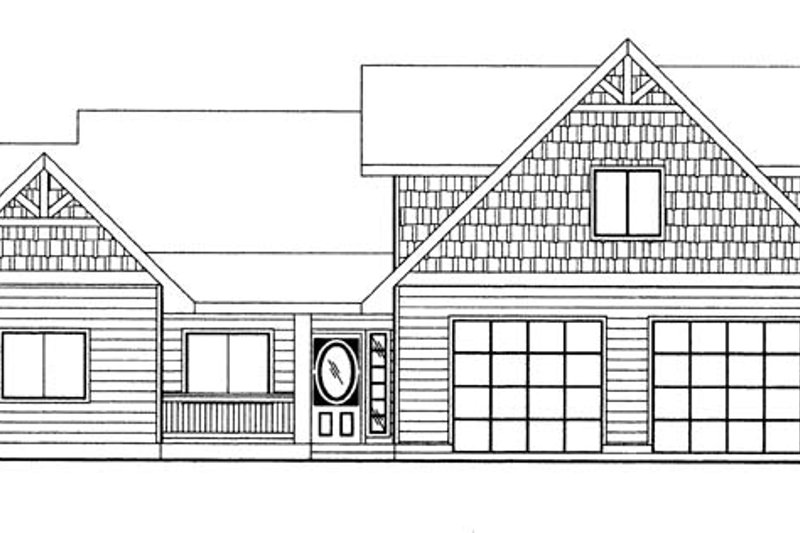

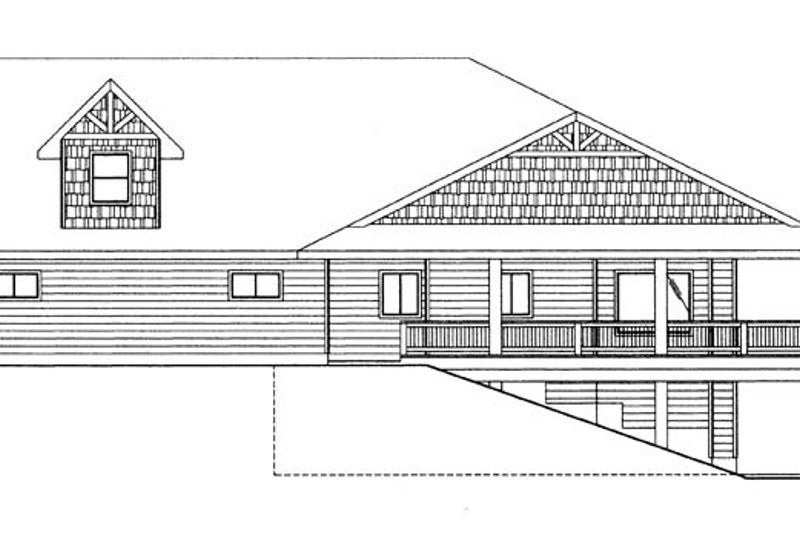

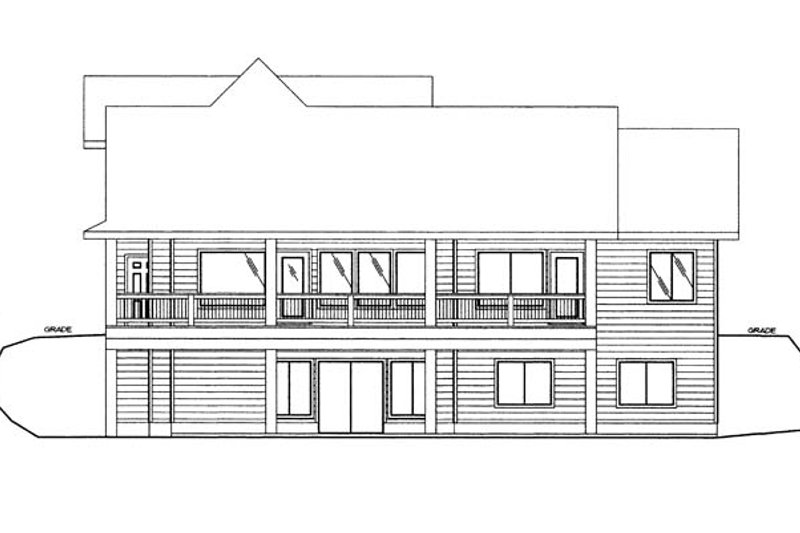

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1795.00
$1895.00
$1895.00
$2045.00
$2595.00
Foundation
$0.00
Framing
$0.00
Additional Options
$195.00
$75.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
