PLAN 927-5
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

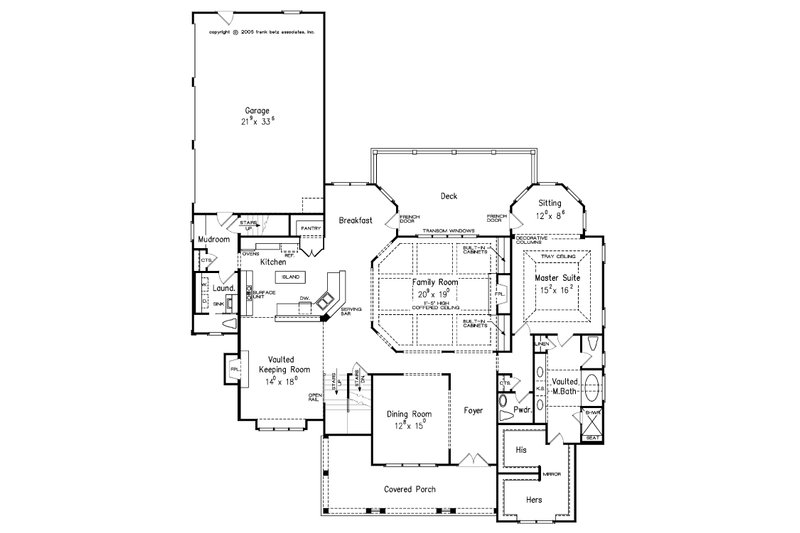

Floor Plan - Main Floor

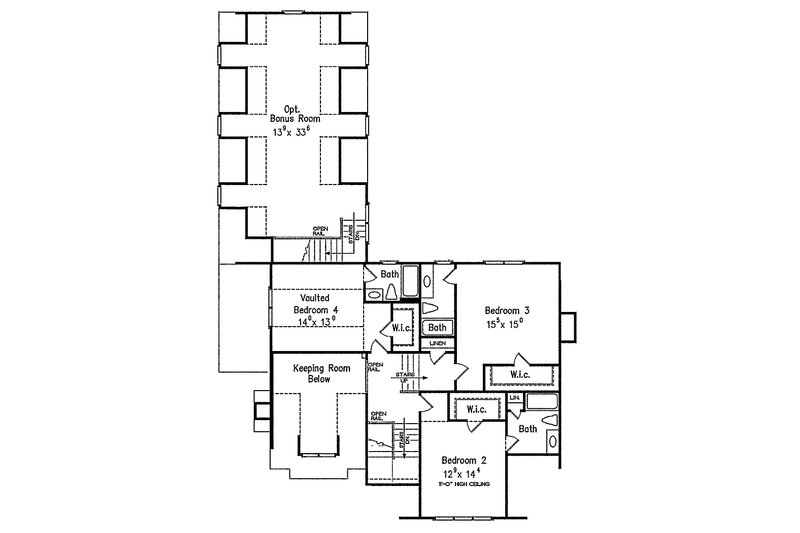

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 85' 6"
Height : 32' 6"
Width : 69'
Area
Basement Unfinished: 2745 sq/ft
Bonus: 649 sq/ft
First Floor: 2745 sq/ft
Garage: 751 sq/ft
Second Floor: 1133 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 9:12
Roof Framing : Stick
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room
Play Flex Room
Garage Features
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
182 sq/ft width 12' 9" x depth 14' 4"
Bedroom 3:
231 sq/ft width 15' 5" x depth 15'
Bedroom 4:
182 sq/ft width 14' x depth 13'
Bonus Room - Finished:
649 sq/ft width 13' 9" x depth 33' 6"
Breakfast Room:
153 sq/ft width 12' x depth 12' 9"
Dining Room:
187 sq/ft width 12' 8" x depth 14' 10"
Family Room:
394 sq/ft width 20' 9" x depth 19'
Foyer:
115 sq/ft width 7' 8" x depth 15'
Garage:
751 sq/ft width 21' 9" x depth 33' 6"
Keeping Room:
252 sq/ft width 14' x depth 18'
Kitchen:
214 sq/ft width 16' 6" x depth 13'
Laundry Room:
47 sq/ft width 7' x depth 6' 9"
Master Bathroom:
203 sq/ft width 11' 4" x depth 18'
Master Bedroom:
245 sq/ft width 15' 2" x depth 16' 2"
Master Closet:
98 sq/ft width 12' 9" x depth 7' 9"
Master Closet Two:
64 sq/ft width 8' x depth 8'
Master Sitting Room:
102 sq/ft width 12' x depth 8' 6"
Mud Room:
69 sq/ft width 7' 4" x depth 9' 5"
Pantry:
30 sq/ft width 5' 6" x depth 5' 6"
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Plan Set
$3195.00
$3395.00
$3545.00
$3745.00
$4795.00
Foundation
$0.00
$0.00
$0.00
Additional Options
$295.00
$165.00
$395.00
$39.00
$165.00
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
