Plan Description
This modern design floor plan is 3712 sq ft and has 4 bedrooms and 4 bathrooms.
Floor Plans

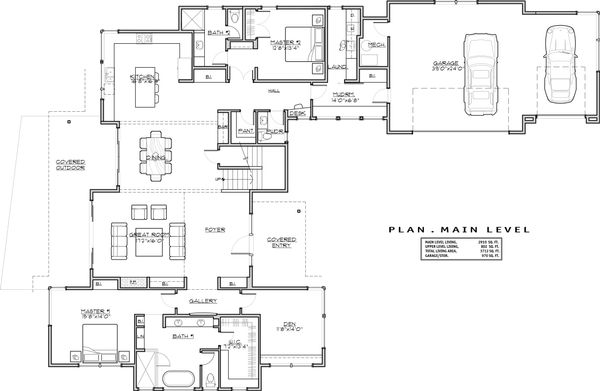

Floor Plan - Main Floor

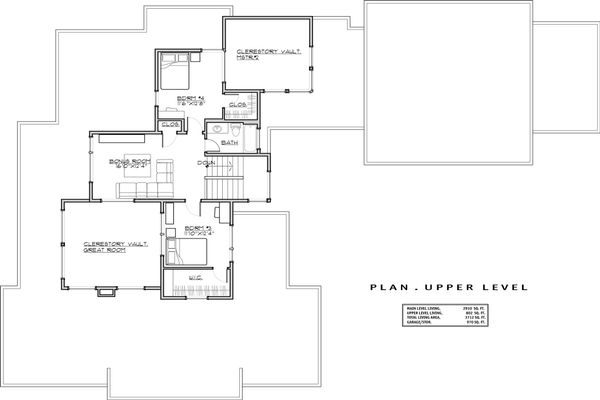

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 104'
Height : 22'
Width : 73' 6"
Area
First Floor: 2910 sq/ft
Garage: 970 sq/ft
Second Floor: 802 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 0:12
Roof Framing : Stick/Joist
Roof Type : Flat
Exterior Wall Framing
Exterior Wall Finish : Siding/Stucco
Framing : 2X6
Bedroom Features
2 Master Suites
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Unfinished Future Space
Garage Features
Side Entry Garage
Rooms
Covered Rear Porch:
400 sq/ft
What's Included In This Plan Set
- Floor Plans: Detailed floor plans for both the main level and upper level (if applicable), include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.
- Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Exterior materials are called out.
- Building Sections: Perhaps one of the most important pages on any set of plans, the section cuts the house in half and shows details such as wall thickness, roof construction, foundation details, roof pitch, ceiling heights, and insulation.
- Foundation and Main Level Framing: Detailed drawings Including floor framing, location and direction of floor joists, locations of footings, notes related to the foundation and framing.
- Lower Roof and Upper Floor Framing: Detailed drawings Including floor and roof framing and notes related to the upper level and roof construction.
- Detail sheets: Detailed drawings and notes showing typical and specific foundation, wall, roof, and chimney construction.
