Key Specs
3434
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1042-1
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Floor Plan - Main Floor

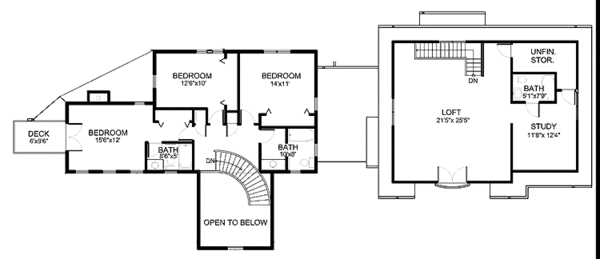

Floor Plan - Upper Floor

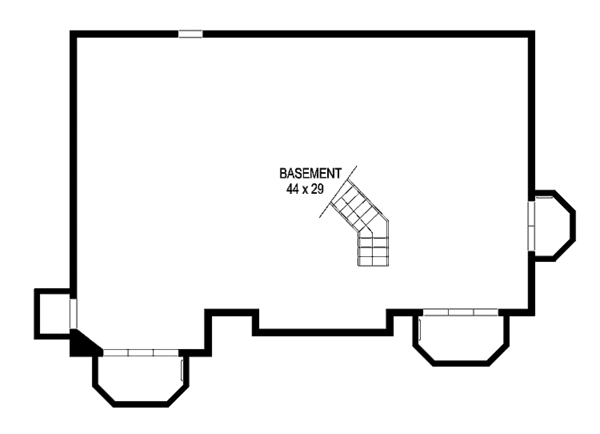

Floor Plan - Lower Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 61' 2"
Height : 24'
Width : 97' 8"
Area
Basement Unfinished: 1378 sq/ft
Bonus: 850 sq/ft
First Floor: 2554 sq/ft height 8'
Garage: 900 sq/ft
Second Floor: 880 sq/ft
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Outdoor Spaces
Balcony
Covered Rear Porch
Rooms
3rd BR Closet:
20 sq/ft width 10' x depth 2'
Balcony:
54 sq/ft width 9' x depth 6'
Basement Foundation:
1472 sq/ft width 46' x depth 32'
Bathroom 2:
41 sq/ft width 8' 3" x depth 5'
Bathroom 3:
20 sq/ft width 10' x depth 2'
Bathroom 4:
39 sq/ft width 7' 9" x depth 5' 1"
Bedroom 2:
186 sq/ft width 15' 6" x depth 12'
Bedroom 2 Closet:
16 sq/ft width 8' x depth 2'
Bedroom 3:
125 sq/ft width 12' 6" x depth 10'
Bedroom 3 Closet:
16 sq/ft width 8' x depth 2'
Bedroom 4:
148 sq/ft width 13' 6" x depth 11'
Bedroom 4 Closet:
19 sq/ft width 9' 6" x depth 2'
Breakfast Room:
186 sq/ft width 15' 6" x depth 12'
Coat Closet:
15 sq/ft width 6' x depth 2' 6"
Covered Porch:
312 sq/ft width 39' x depth 8'
Crawlspace Foundation:
1450 sq/ft width 50' x depth 29'
Deck:
312 sq/ft width 39' x depth 8'
Dining Room:
238 sq/ft width 17' x depth 14'
Entertainment Terrace:
312 sq/ft width 39' x depth 8'
Family Room:
370 sq/ft width 19' 6" x depth 19'
Foyer:
182 sq/ft width 13' x depth 14'
Front Entry:
182 sq/ft width 13' x depth 14'
Garage:
884 sq/ft width 34' x depth 26'
Garage Storage:
40 sq/ft width 10' x depth 4'
Gathering Room:
370 sq/ft width 19' 6" x depth 19'
Hall Closet:
15 sq/ft width 6' x depth 2' 6"
Kitchen:
188 sq/ft width 15' 8" x depth 12'
Kitchen Island:
28 sq/ft width 8' x depth 3' 6"
Laundry Room:
48 sq/ft width 6' 6" x depth 7' 6"
Linen Closet:
4 sq/ft width 2' x depth 2'
Living Room:
201 sq/ft width 13' x depth 15' 6"
Master Bathroom:
176 sq/ft width 11' x depth 16'
Master Bedroom:
396 sq/ft width 18' x depth 22'
Master Closet:
93 sq/ft width 15' 6" x depth 6'
Master Foyer:
30 sq/ft width 5' x depth 6'
Master Sitting Room:
66 sq/ft width 11' x depth 6'
Mud Room:
65 sq/ft width 10' x depth 6' 6"
Outside Storage Area:
40 sq/ft width 10' x depth 4'
Pantry:
30 sq/ft width 5' x depth 6'
Porch - Front:
112 sq/ft width 14' x depth 8'
Porch - Left:
336 sq/ft width 8' x depth 42'
Powder Room:
25 sq/ft width 5' x depth 5'
Slab Foundation:
864 sq/ft width 36' x depth 24'
Storage Closet:
13 sq/ft width 6' 6" x depth 2'
Wash Room:
48 sq/ft width 6' 6" x depth 7' 6"
Wood Deck:
336 sq/ft width 42' x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

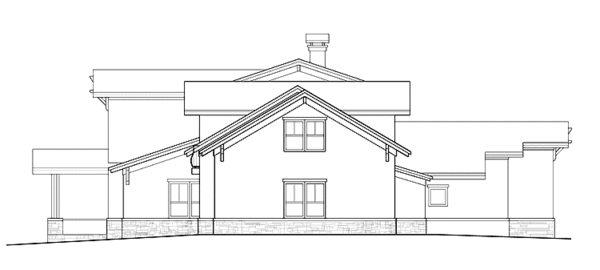

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1280.00
$2560.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$80.00
$31.20
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
