PLAN 417-662

Photographs may show modified designs.

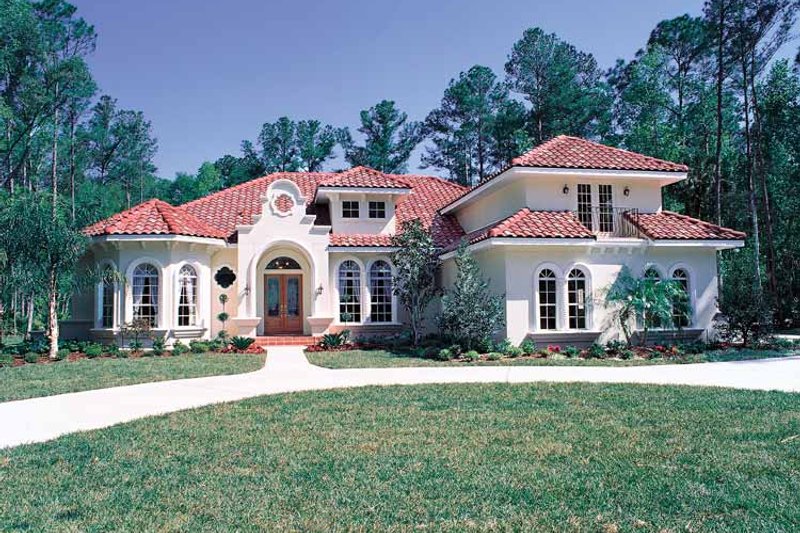

Dream House Plan - Mediterranean Exterior - Front Elevation Plan #417-662

Dream House Plan - Mediterranean Interior - Bathroom Plan #417-662

Dream House Plan - Mediterranean Interior - Other Plan #417-662

Dream House Plan - Mediterranean Exterior - Rear Elevation Plan #417-662

Dream House Plan - Mediterranean Floor Plan - Main Floor Plan #417-662

Dream House Plan - Mediterranean Floor Plan - Other Floor Plan #417-662

Jump to:
All (9)
Exterior (5)
Interior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

3424
sq ft

5
Beds

4
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$40.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$160.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$68.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$24.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $1160.00

You save $290.00 (20% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 417-662

Home > Style > Mediterranean

Key Specs

3424
sq ft

5
Beds

4
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 3424 sq ft and has 5 bedrooms and 4 bathrooms.

Floor Plans

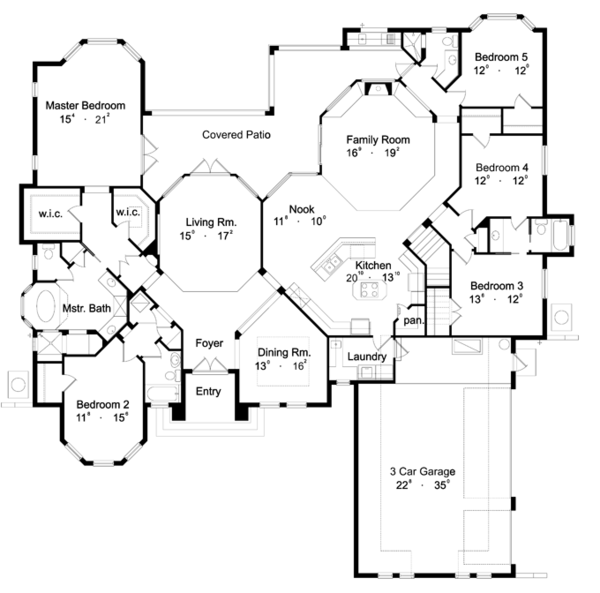

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

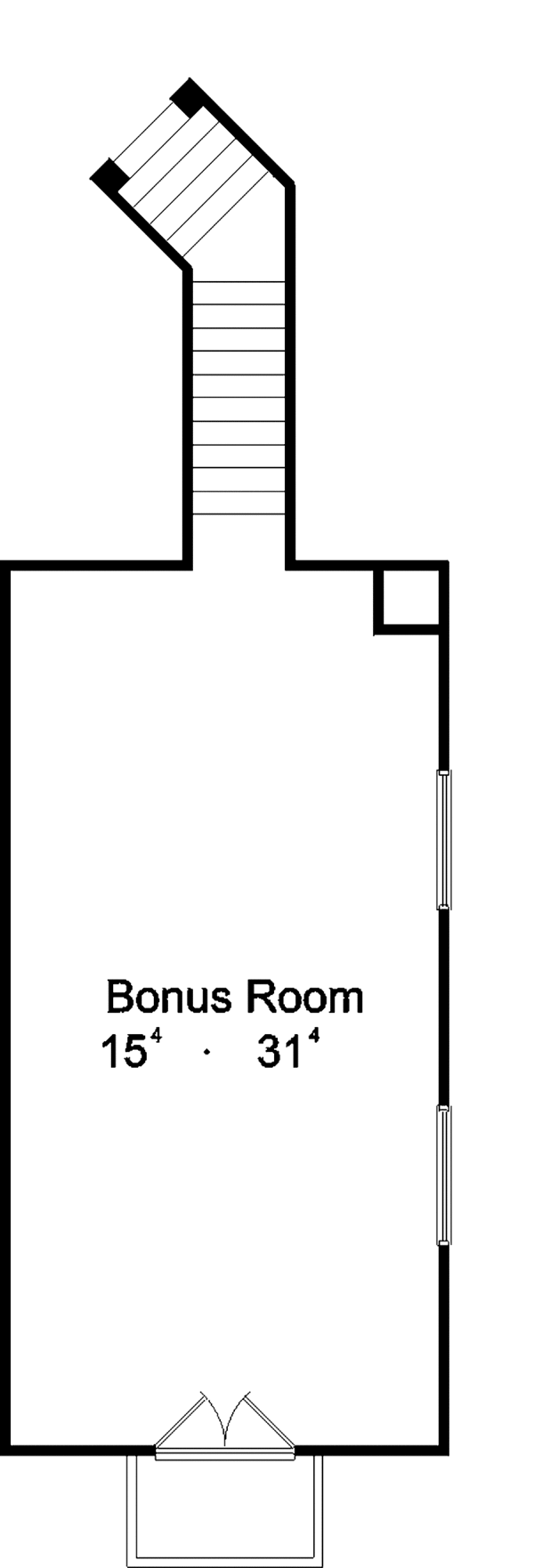

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 83' 8"

Height : 23'

Width : 82' 4"

Area

Bonus: 507 sq/ft

First Floor: 3424 sq/ft

Garage: 814 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Living Room, Family Room, Breakfast Room, Bedroom 2 and Lanai all have 12' ceilings. All other Bedrooms and Master Bedroom have 10' ceilings. Dining Room ceiling is 10'-4" and Bonus Room has 8' ceilings.

Main Ceiling : 10'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Master Sitting Area

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Grill Deck Sundeck

Outdoor Kitchen Grill

Rooms

3rd BR Closet:

37 sq/ft width 5' 4" x depth 7'

Bathroom 2:

40 sq/ft width 5' 8" x depth 7' 2"

Bathroom 3:

72 sq/ft width 11' 10" x depth 6' 2"

Bedroom 2:

180 sq/ft width 11' 8" x depth 15' 6"

Bedroom 2 Closet:

21 sq/ft width 3' 8" x depth 5' 10"

Bedroom 3:

162 sq/ft width 13' 6" x depth 12'

Bedroom 3 Closet:

21 sq/ft width 3' 8" x depth 5' 10"

Bedroom 4:

144 sq/ft width 12' x depth 12'

Bedroom 4 Closet:

21 sq/ft width 5' 9" x depth 3' 8"

Bedroom 5:

156 sq/ft width 12' x depth 12'

Bonus Room - Finished:

480 sq/ft width 15' 4" x depth 31' 4"

Breakfast Room:

116 sq/ft width 11' 8" x depth 10'

Dining Room:

210 sq/ft width 13' x depth 16' 2"

Family Room:

321 sq/ft width 16' 9" x depth 19' 2"

Garage:

width 22' x depth 35'

Kitchen:

280 sq/ft width 20' x depth 13' 10"

Laundry Room:

60 sq/ft width 9' 6" x depth 6' 4"

Living Room:

257 sq/ft width 15' x depth 17' 2"

Master Bathroom:

278 sq/ft width 15' 11" x depth 17' 6"

Master Bedroom:

324 sq/ft width 15' 4" x depth 21' 2"

Master WIC #1:

78 sq/ft width 9' 4" x depth 8' 4"

Master WIC #2:

71 sq/ft width 7' 2" x depth 9' 10"

Pantry:

22 sq/ft width 4' 8" x depth 4' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1160.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1320.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1440.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$2320.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$640.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$160.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$68.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$24.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
