PLAN 430-190
Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (1)
Get Personalized Help
Key Specs
3366
sq ft
4
Beds
3.5
Baths
1
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 430-190
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

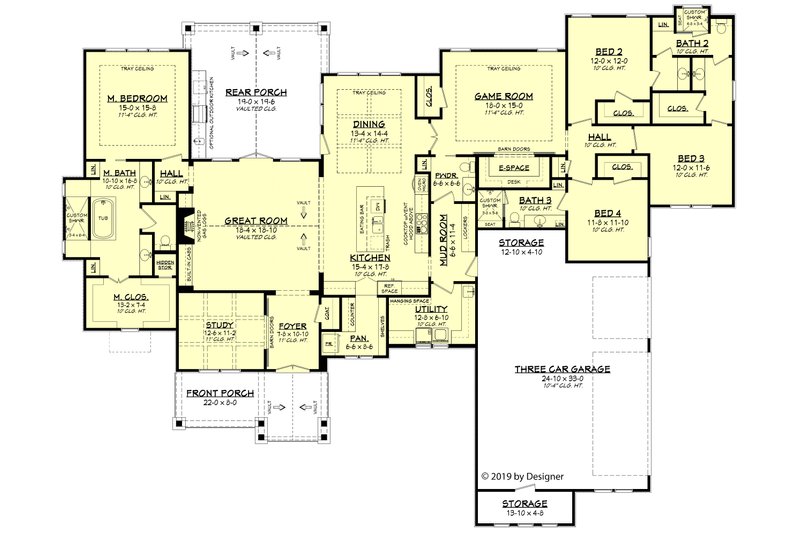

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 75' 10"
Height : 24'
Width : 98'
Area
Garage : 846 sq/ft
Main Floor : 3366 sq/ft
Porch : 575 sq/ft
Storage : 135 sq/ft
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 7:12
Roof Framing : Stick
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Stone / Siding
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
More
Jack & Jill Bath
Wheelchair Adaptable
Rooms
Bedroom 2:
width 12' x depth 12'
Bedroom 3:
width 12' x depth 11' 6"
Bedroom 4:
width 11' 8" x depth 11' 10"
Covered Front Porch:
width 22' x depth 8'
Covered Rear Porch:
width 19' x depth 19' 6"
Dining Room:
width 13' 4" x depth 14' 4"
Foyer:
width 6' 6" x depth 11' 4"
Game Room:
width 18' x depth 15'
Garage:
width 24' 10" x depth 33'
Great Room:
width 18' 4" x depth 18' 10"
Kitchen:
width 15' 4" x depth 17' 8"
Master Bath:
width 10' 10" x depth 16' 8"
Master Bedroom:
width 15' x depth 15' 8"
Master Closet:
width 11' 2" x depth 7' 4"
Powder Room:
width 6' 6" x depth 6' 6"
Storage:
width 12' 10" x depth 4' 10"
Study:
width 12' 6" x depth 11' 2"
Utility Room:
width 12' 8" x depth 6' 10"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license.
- Cover Sheet – May include index, front view of home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.
- Dimensioned Floor Plan – Electrical may be shown.
- Exterior Views – Four exterior views of the residence with other miscellaneous details.
- Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
- Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
- Wall Section(s) – Detail of wall materials and assembly.
- Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
- Cabinet Elevations – Displays interior kitchen cabinet views.
*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2x6 Wall conversion will not be reflected in the material list.
________________________
Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls.
Plan Set
$1545.00
$1795.00
$2245.00
$2495.00
$2645.00
Foundation
$0.00
$0.00
$395.00
$395.00
Framing
$0.00
$325.00
Additional Options
$225.00
$100.00
$495.00
$165.00
$39.00
$165.00
$250.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
