PLAN 1054-4
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

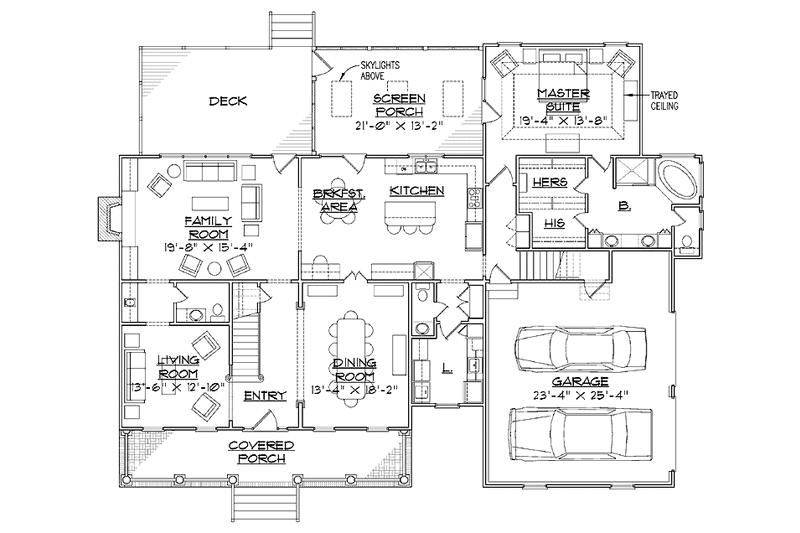

Floor Plan - Main Floor

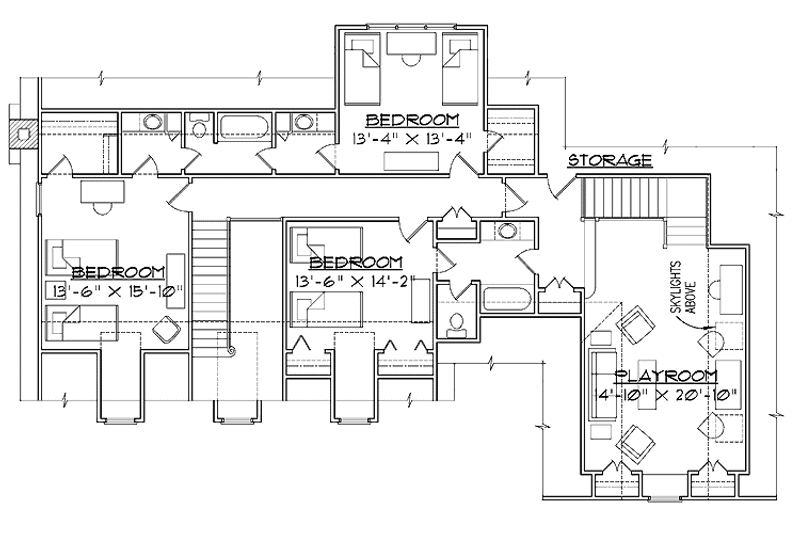

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 55' 8"
Height : 30' 4"
Width : 73' 2"
Area
Bonus: 444 sq/ft
First Floor: 2203 sq/ft height 9'
Garage: 671 sq/ft
Porch: 536 sq/ft
Second Floor: 1088 sq/ft height 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Loft
Main Floor Laundry
Storage Area
Sunroom
Unfinished Future Space
Outdoor Spaces
Balcony
Covered Front Porch
Deck
Screened Porch
More
Jack & Jill Bath
Rooms
Bathroom 2:
76 sq/ft width 13' 8" x depth 5' 7"
Bathroom 3:
76 sq/ft width 8' 6" x depth 9'
Bedroom 2:
1475 sq/ft width 137' 3" x depth 10' 9"
Bedroom 2 Closet:
39 sq/ft width 5' 7" x depth 7'
Bedroom 3:
191 sq/ft width 13' 6" x depth 14' 2"
Bedroom 3 Closet:
10 sq/ft width 5' x depth 2'
Bedroom 4:
177 sq/ft width 13' 4" x depth 13' 4"
Bedroom 4 Closet:
24 sq/ft width 5' 8" x depth 4' 3"
Coat Closet:
13 sq/ft width 4' 6" x depth 3'
Deck:
296 sq/ft width 21' 8" x depth 13' 8"
Dining Room:
242 sq/ft width 13' 4" x depth 18' 2"
Family Room:
301 sq/ft width 15' 4" x depth 19' 8"
Foyer:
94 sq/ft width 5' 1" x depth 18' 8"
Garage:
591 sq/ft width 23' 4" x depth 25' 4"
Garage Storage:
16 sq/ft width 4' x depth 4'
Half Bathroom:
22 sq/ft width 3' 2" x depth 7'
Kitchen:
347 sq/ft width 22' 8" x depth 15' 4"
Kitchen Island:
18 sq/ft width 6' x depth 3'
Laundry Room:
95 sq/ft width 10' x depth 9' 6"
Living Room:
171 sq/ft width 13' 6" x depth 12' 8"
Master Bathroom:
156 sq/ft width 14' x depth 11' 2"
Master Bedroom:
264 sq/ft width 19' 4" x depth 13' 8"
Master Closet:
93 sq/ft width 11' 4" x depth 8' 3"
Master Foyer:
32 sq/ft width 4' x depth 8'
Pantry:
6 sq/ft width 4' 2" x depth 1' 7"
Porch - Front:
253 sq/ft width 35' 4" x depth 7' 2"
Porch - Screened:
284 sq/ft width 21' 6" x depth 13' 3"
Powder Room:
31 sq/ft width 7' x depth 4' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

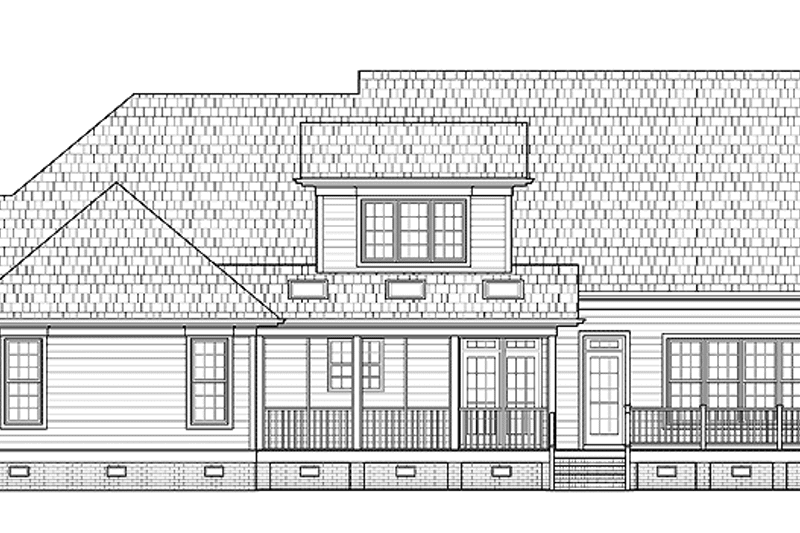

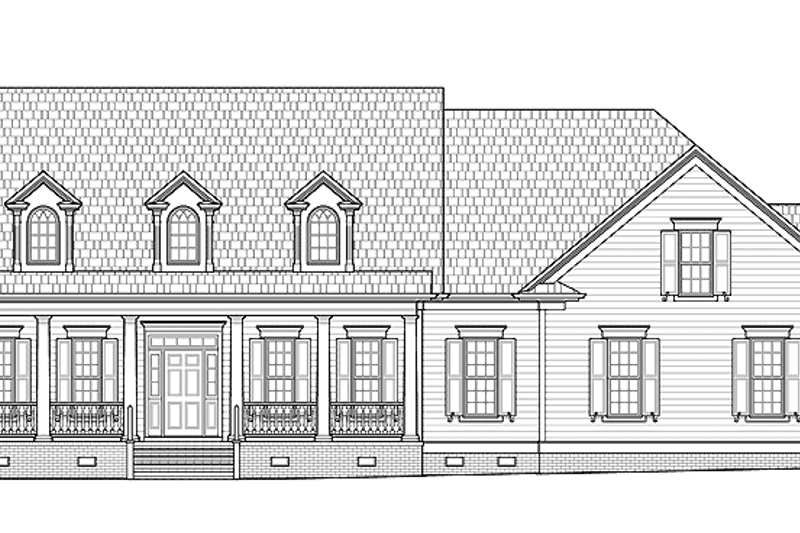

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1080.00
$1180.00
$1180.00
$1960.00
$880.00
Foundation
$0.00
Framing
$0.00
Additional Options
$175.00
$25.00
$100.00
$200.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
