PLAN 1092-48
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 60'
Height : 27' 6"
Width : 113'
Area
Garage : 1500 sq/ft
Main Floor : 2185 sq/ft
Porch : 700 sq/ft
Upper Floor : 848 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 5/12
Roof Framing : PEMB and Stick
Roof Type : Metal
Secondary Pitch : 2/12
Exterior Wall Framing
Exterior Wall Finish : Metal

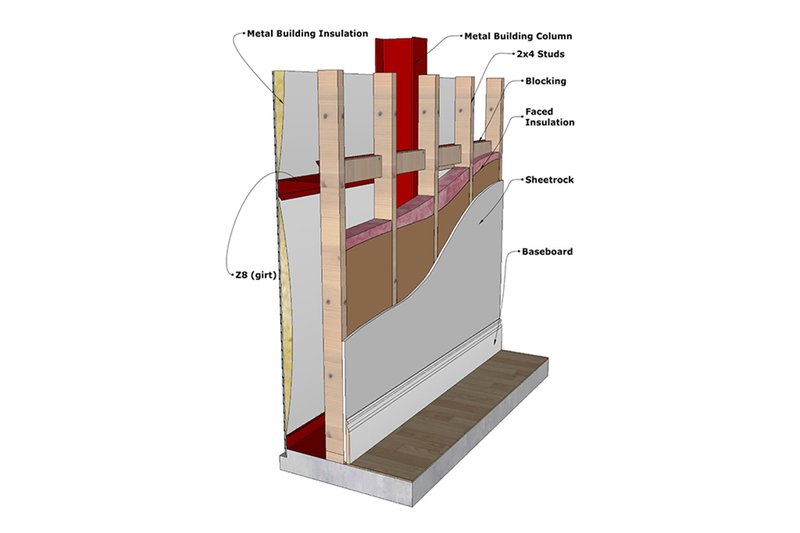

Framing : Z8 and 2x4
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Garage Features
Oversized Garage
Side Entry Garage
Outdoor Spaces
Breezeway
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

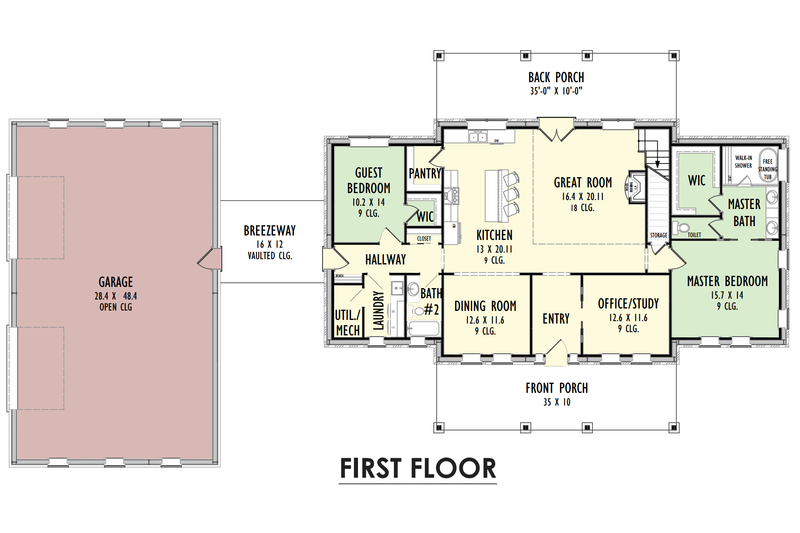

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1750.00
Foundation
$0.00
Framing
$0.00
$395.00
Additional Options
$250.00
$165.00
$395.00
$39.00
$165.00
$2250.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
