PLAN 17-2770
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 61' 9"
Height : 23' 4"
Width : 80' 4"
Area
First Floor: 2668 sq/ft
Porch: 299 sq/ft
Storage: 498 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Rooms
Bedroom 2:
156 sq/ft width 12' x depth 13'
Bedroom 3:
177 sq/ft width 12' x depth 14' 10"
Bedroom 4:
134 sq/ft width 11' 8" x depth 11' 6"
Breakfast Room:
143 sq/ft width 11' 8" x depth 12' 4"
Dining Room:
154 sq/ft width 11' 4" x depth 13' 8"
Foyer:
64 sq/ft width 7' x depth 9' 2"
Garage:
456 sq/ft width 20' x depth 22' 10"
Garage Storage:
42 sq/ft width 5' 4" x depth 8'
Grilling Porch:
236 sq/ft width 19' 8" x depth 12'
Home Theater:
250 sq/ft width 17' 8" x depth 14' 2"
Kitchen:
178 sq/ft width 11' 8" x depth 15' 4"
Laundry Room:
62 sq/ft width 8' x depth 7' 10"
Master Bathroom:
265 sq/ft width 17' 8" x depth 15'
Master Bedroom:
270 sq/ft width 18' x depth 15'
Porch - Front:
60 sq/ft width 7' x depth 8' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.

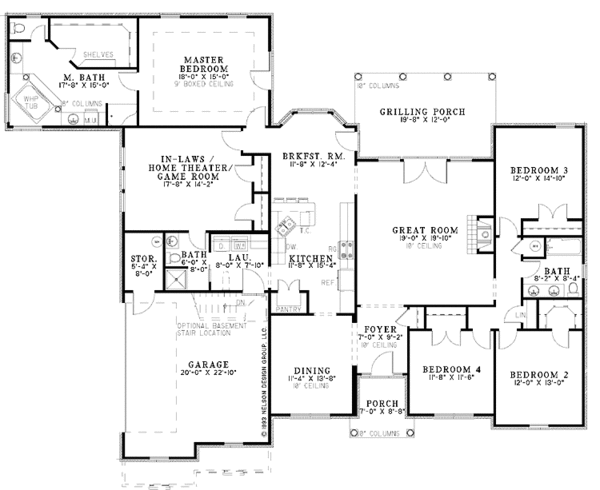

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$935.00
$1020.00
$1232.50
$1530.00
$1870.00
$1870.00
Foundation
$0.00
$0.00
$254.15
$254.15
Framing
$0.00
$254.15
Additional Options
$254.15
$68.00
$85.00
$335.75
$33.15
$126.65
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
