PLAN 30-179
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

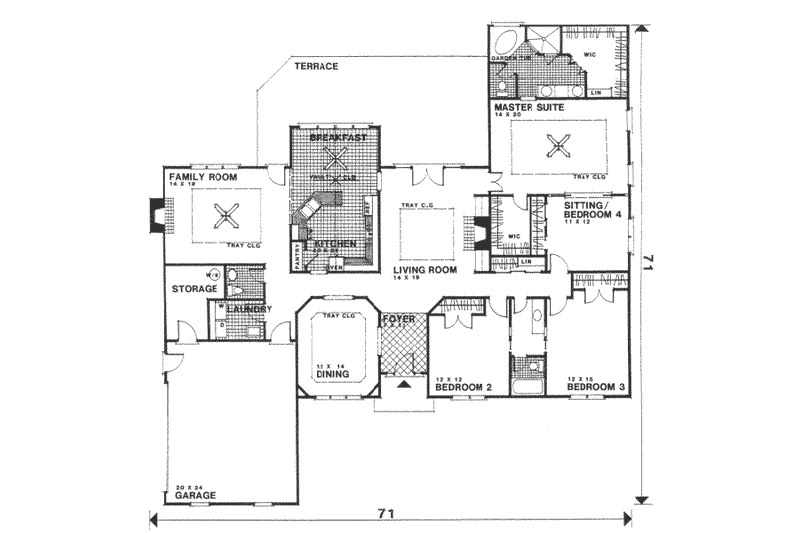

Floor Plans
Full Specs & Features
Dimension
Depth : 71'
Width : 71'
Area
Main Floor : 2530 sq/ft
Ceiling
Ceiling Details : tray ceiling in Family Room & Living Room, vaulted ceiling at Breakfast & Kitchen
Garage Ceiling : 9'
Main Ceiling : 8'
Roof
Primary Pitch : 7:12
Roof Framing : standard wood
Roof Load : 20
Roof Type : shingle
Secondary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : brick, siding, stucco (optional)
Framing : 2"x4"
Insulation : 19
Seismic Rating : -
Wind Rating : -
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
More
Jack & Jill Bath
Code Compliance
Irc 2000
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$985.00
$995.00
$1005.00
Foundation
$0.00
$0.00
$0.00
Additional Options
$50.00
$100.00
$39.00
$100.00
$0.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
