PLAN 120-201
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

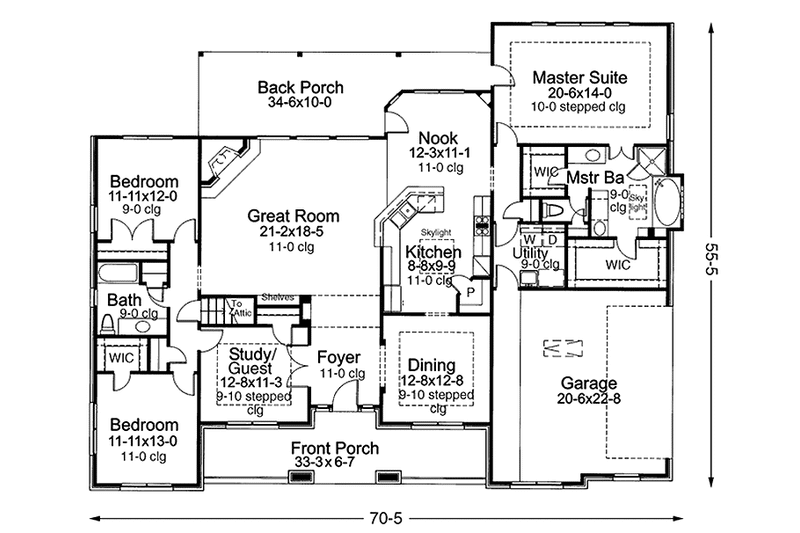

Floor Plan - Main Floor

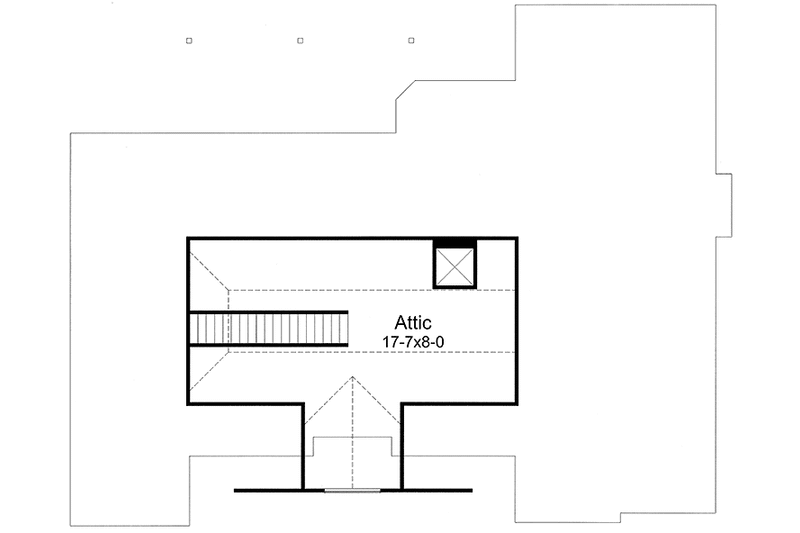

Floor Plan - Upper Floor

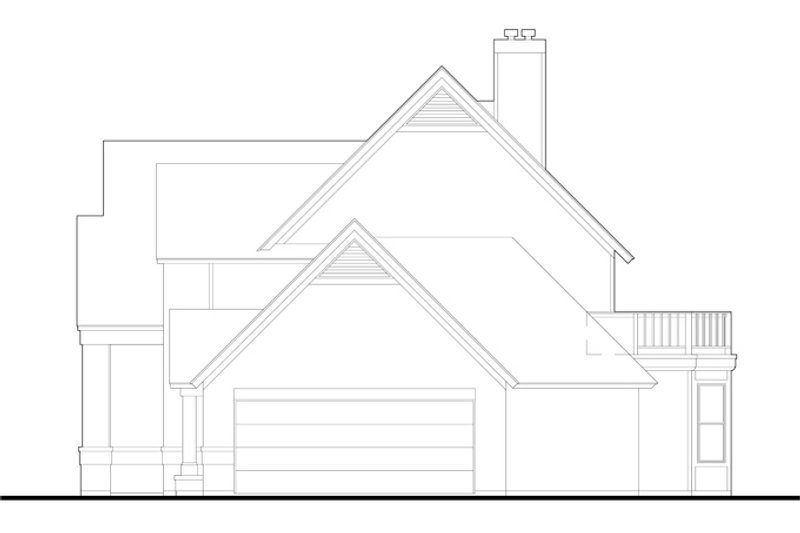

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 56'
Height : 23'
Width : 71'
Area
Basement Unfinished: 2471 sq/ft
First Floor: 2471 sq/ft
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
143 sq/ft width 11' 11" x depth 12'
Bedroom 3:
154 sq/ft width 11' 11" x depth 13'
Breakfast Nook:
136 sq/ft width 12' 4" x depth 11' 1"
Dining Room:
160 sq/ft width 12' 8" x depth 12' 8"
Dining Room:
160 sq/ft width 12' 8" x depth 12' 8"
Entry:
104 sq/ft width 8' x depth 13'
Great Room:
389 sq/ft width 21' 2" x depth 18' 5"
Kitchen:
85 sq/ft width 8' 8" x depth 9' 10"
Master Bathroom:
88 sq/ft width 11' 8" x depth 7' 7"
Master Bedroom:
287 sq/ft width 20' 6" x depth 14'
Study:
143 sq/ft width 12' 8" x depth 11' 4"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$1095.00
$1095.00
$1245.00
$1345.00
$1895.00
Foundation
$0.00
$0.00
$395.00
$395.00
Framing
$0.00
$245.00
Additional Options
$195.00
$50.00
$395.00
$165.00
$295.00
$39.00
$395.00
$195.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
