PLAN 17-2602
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Get wonderful curb appeal with this contemporary design. The exterior features stone, stucco, and an abundance of windows. The unique design of the garage door adds to the curb appeal of this home. Inside you will find an open layout for the Great Room, Kitchen, and Dining areas. The spacious master suite will spoil you with a large walk-in closet and a luxurious bath featuring modern design elements such as a freestanding tub and an oversized tile and glass shower. Two additional bedrooms, another bath, a separate laundry, and an upstairs loft are also found in this home.
Floor Plans

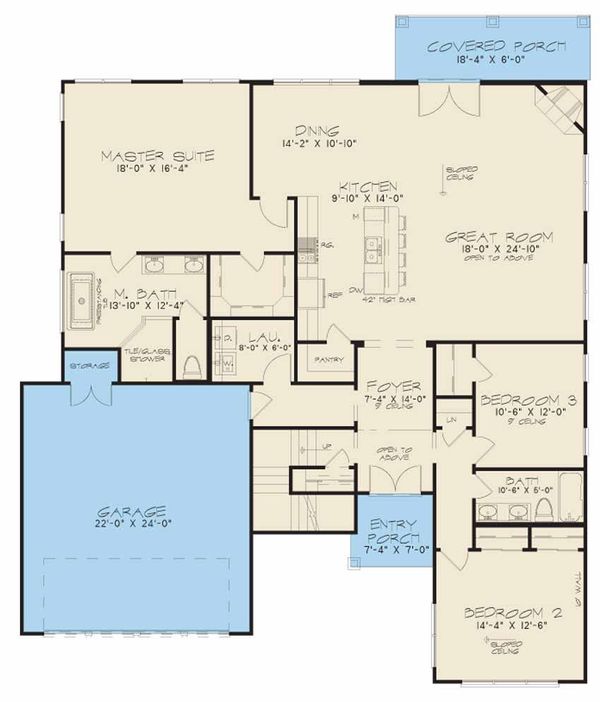

Floor Plan - Main Floor

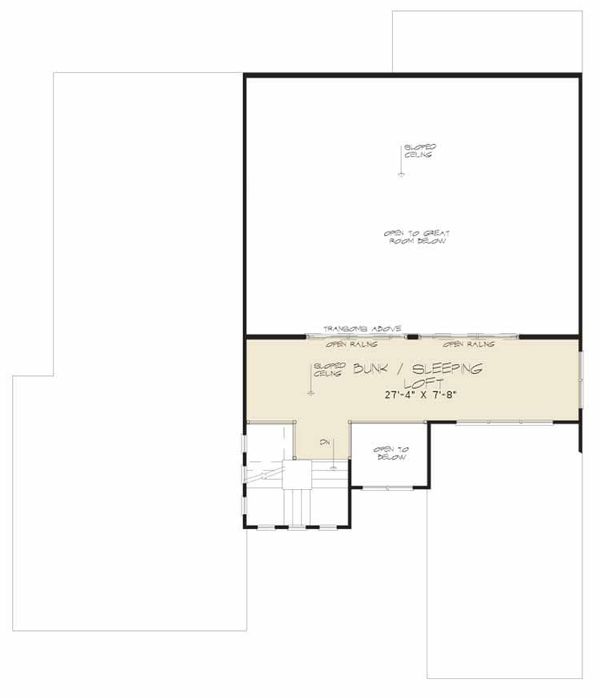

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 64' 8"
Height : 24'
Width : 55' 2"
Area
Garage : 571 sq/ft
Main Floor : 2165 sq/ft
Porch : 173 sq/ft
Upper Floor : 305 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 3:12
Roof Framing : Stick
Roof Load : 45lbs.
Roof Type : Metal
Exterior Wall Framing
Framing : 2X4
Insulation : R13
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
