PLAN 84-503

Home > Style > Traditional House Plans

Key Specs

2345
sq ft

4
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Great plan for a country lot or acreage; it's also perfect for a growing family. Open living/kitchen area promotes togetherness, but the split bedroom areas allow privacy for mom and dad. Traditional elevation has stone detailing in the dressed up gables.

Floor Plans

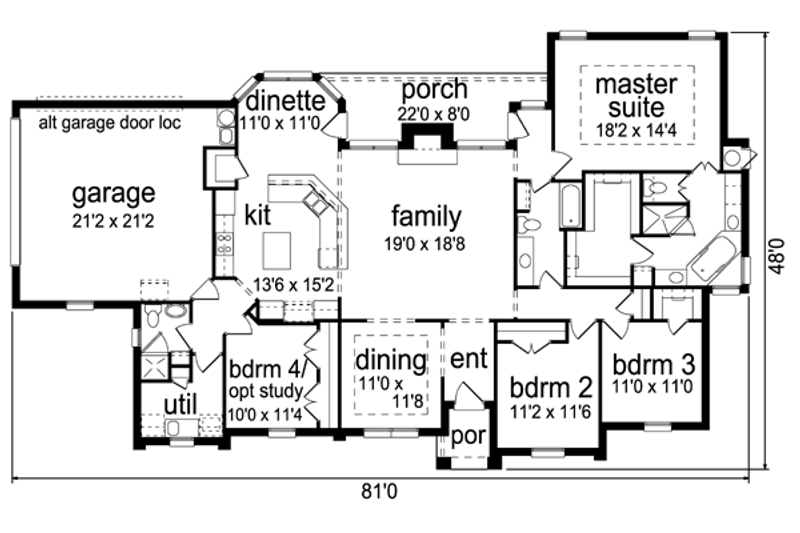

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 48'

Height : 26' 6"

Width : 81'

Area

First Floor: 2345 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'

Main Ceiling : 10'

Roof

Primary Pitch : 10:12

Roof Framing : stick

Roof Type : gable

Exterior Wall Framing

Exterior Wall Finish : brick, stone

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Code Compliance

Irc 2003

Rooms

Bedroom 2:

128 sq/ft width 11' 2" x depth 11' 6"

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bedroom 4:

113 sq/ft width 10' x depth 11' 4"

Dinette:

121 sq/ft width 11' x depth 11'

Dining Room:

128 sq/ft width 11' x depth 11' 8"

Family Room:

354 sq/ft width 19' x depth 18' 8"

Garage:

448 sq/ft width 21' 2" x depth 21' 2"

Kitchen:

204 sq/ft width 13' 6" x depth 15' 2"

Master Suite:

260 sq/ft width 18' 2" x depth 14' 4"

Porch - Rear:

176 sq/ft width 22' x depth 8'

What's Included In This Plan Set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

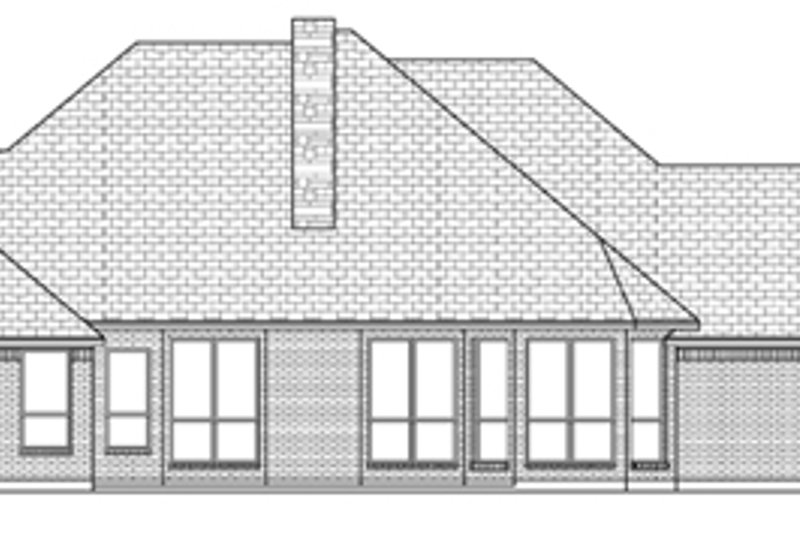

ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$900.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1000.00

5 printed plan sets mailed to you.

8 Copy Set:
$1100.00

8 printed plan sets mailed to you.

Reproducible Set:
$1100.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1800.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$800.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$200.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
