PLAN 1010-35
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 52' 8"
Height : 33'
Width : 59' 8"
Area
Basement Unfinished: 1245 sq/ft
First Floor: 1245 sq/ft
Garage: 864 sq/ft
Porch: 123 sq/ft
Second Floor: 989 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms
2nd bath:
width 7' 6" x depth 5'
Bedroom 2:
width 11' x depth 11'
Bedroom 3:
11 sq/ft width 10" x depth 8'
Bedroom 4:
width 10' x depth 10' 2"
Breakfast Nook:
width 11' x depth 11' 8"
Dining:
width 13' x depth 12' 4"
Garage:
864 sq/ft width 24' x depth 36'
Kitchen:
width 13' x depth 14'
Laundry room:
42 sq/ft width 5' 8" x depth 7' 4"
Master bath:
94 sq/ft width 11' x depth 8' 6"
Master Bedroom:
width 13' x depth 14'
Master shower:
width 3' x depth 5'
Porch Front:
123 sq/ft width 24' 8" x depth 5'
Study:
width 11' x depth 11'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

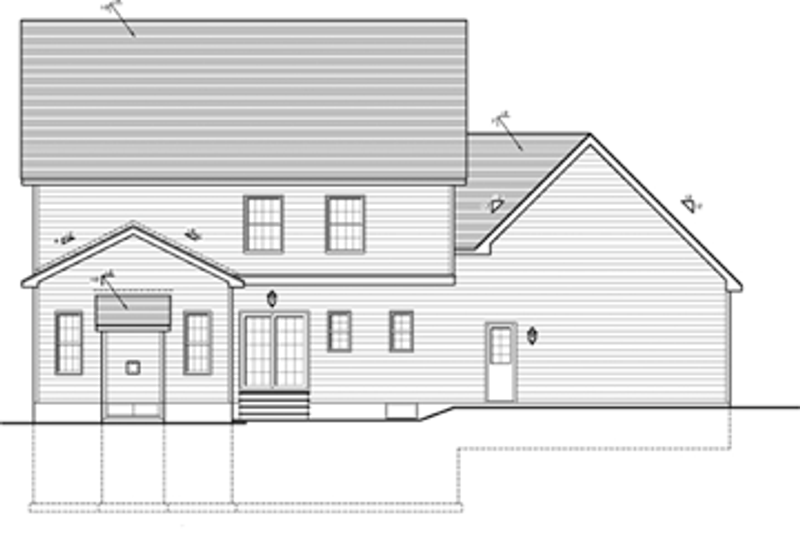

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

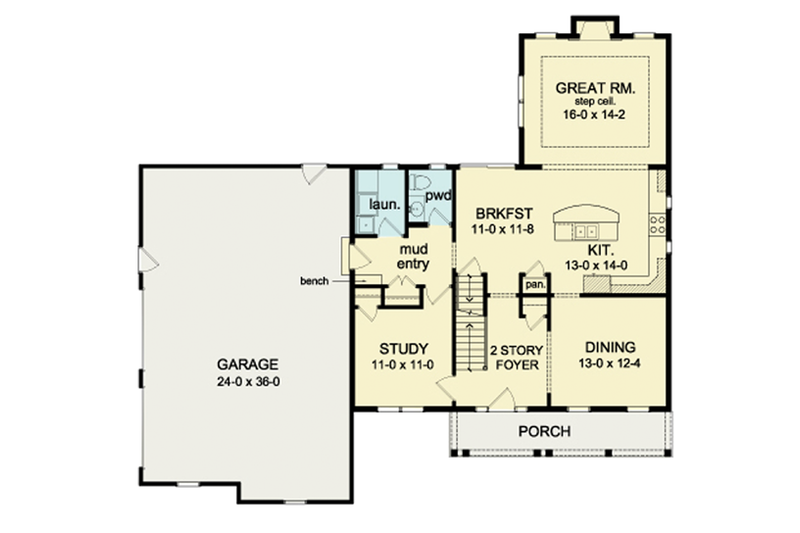

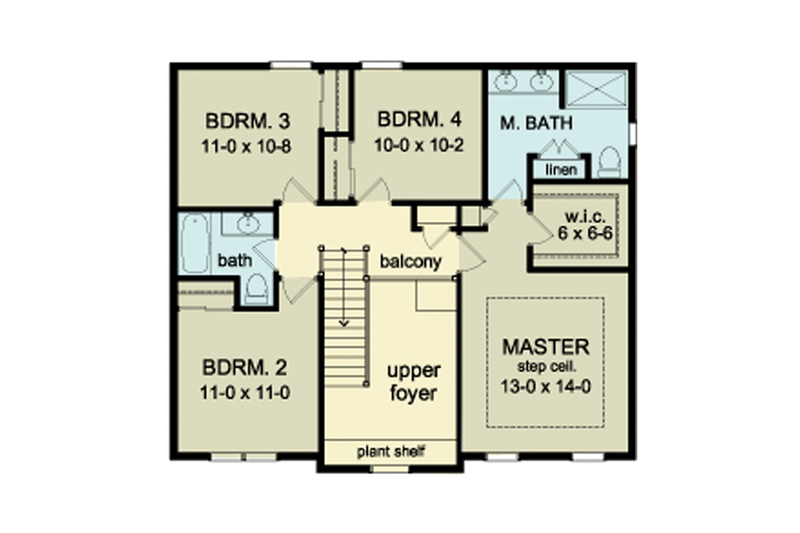

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
Plan Set
$1550.00
$1600.00
$3100.00
$900.00
$900.00
Foundation
$0.00
Framing
$0.00
Additional Options
$75.00
$165.00
$295.00
$39.00
$165.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
