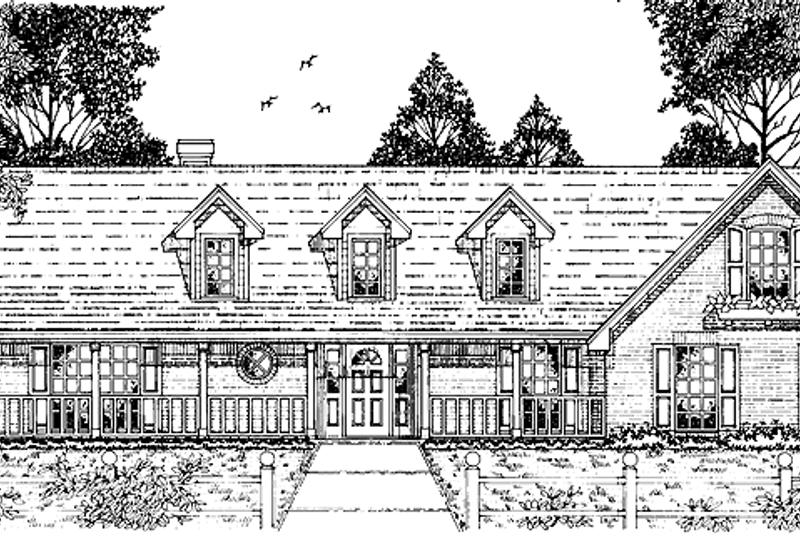

Dream House Plan - Ranch Exterior - Front Elevation Plan #42-516

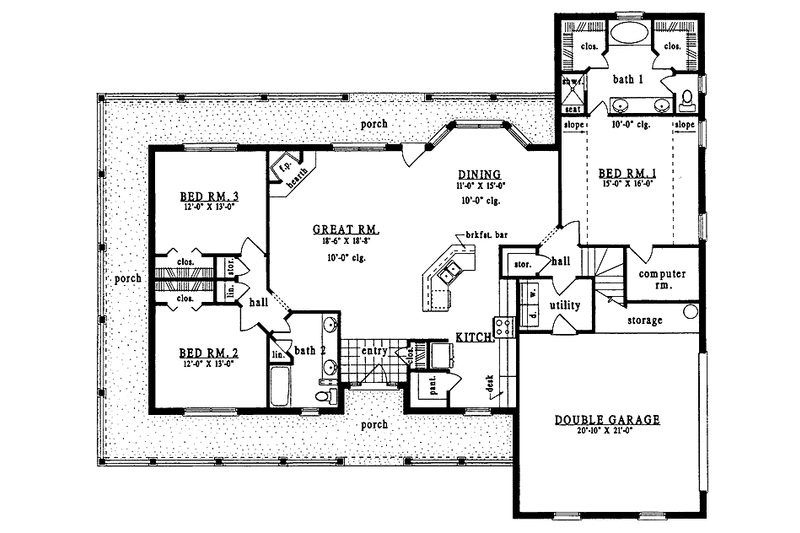

Dream House Plan - Ranch Floor Plan - Main Floor Plan #42-516

Dream House Plan - Ranch Floor Plan - Upper Floor Plan #42-516

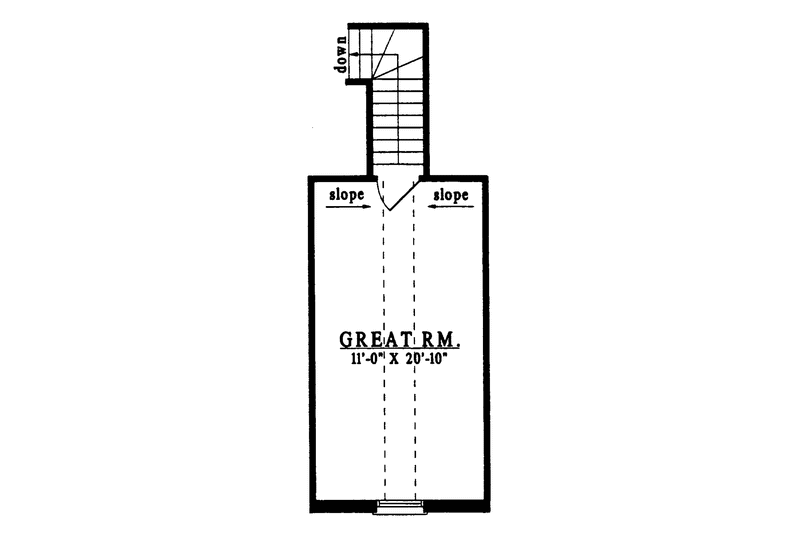

Dream House Plan - Ranch Floor Plan - Other Floor Plan #42-516

Jump to:
All (4)
Exterior (1)
Floor plans (3)

Get Personalized Help

Home > Style > Ranch House Plans

Key Specs

2075
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$175.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$850.00

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 42-516

Home > Style > Ranch House Plans

Key Specs

2075
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

An immense U-shaped veranda hugs the perimeter of this stunning home. Striking accents such as a glass rondel, window planters, dormers, and shutters complete a captivating package. Inside, the great room benefits from a wide footprint, and shares space with the enormous kitchen and dining cove. An angled work island allows easy access from the foyer as well as the dining area. The master suite has an attached computer room, great for use as a home office. An upper staircase to a loft or attic is provided at the utility hallway.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 59'

Height : 21'

Width : 71' 2"

Area

Bonus: 258 sq/ft

First Floor: 2075 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Open Floor Plan

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Wrap Around Porch

Rooms

3rd BR Closet:

18 sq/ft width 2' 4" x depth 8'

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 2 Closet:

18 sq/ft width 2' 4" x depth 8'

Bedroom 3:

156 sq/ft width 12' x depth 13'

Bedroom 3 Closet:

18 sq/ft width 2' 4" x depth 8'

Bonus Room - Finished:

231 sq/ft width 11' x depth 21'

Computer area:

52 sq/ft width 8' 6" x depth 6' 2"

Dining Room:

165 sq/ft width 11' x depth 15'

Foyer:

48 sq/ft width 6' x depth 8'

Garage:

437 sq/ft width 20' 10" x depth 21'

Garage Storage:

64 sq/ft width 4' x depth 16'

Gathering Room:

345 sq/ft width 18' 6" x depth 18' 8"

Hall Bathroom:

80 sq/ft width 8' x depth 10'

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

200 sq/ft width 10' x depth 20'

Master Bathroom:

176 sq/ft width 11' x depth 16'

Master Bedroom:

240 sq/ft width 15' x depth 16'

Master Closet:

30 sq/ft width 5' x depth 6'

Pantry:

18 sq/ft width 4' 4" x depth 4' 2"

Porch - Front:

width 6' x depth 0"

Porch - Left:

48 sq/ft width 6' x depth 8'

Porch - Rear:

width 6' x depth 0"

Storage Closet:

13 sq/ft width 4' x depth 3' 4"

Utility Room:

48 sq/ft width 6' x depth 8'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
