PLAN 60-1036
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (1)
Get Personalized Help
Key Specs
1919
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 60-1036
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

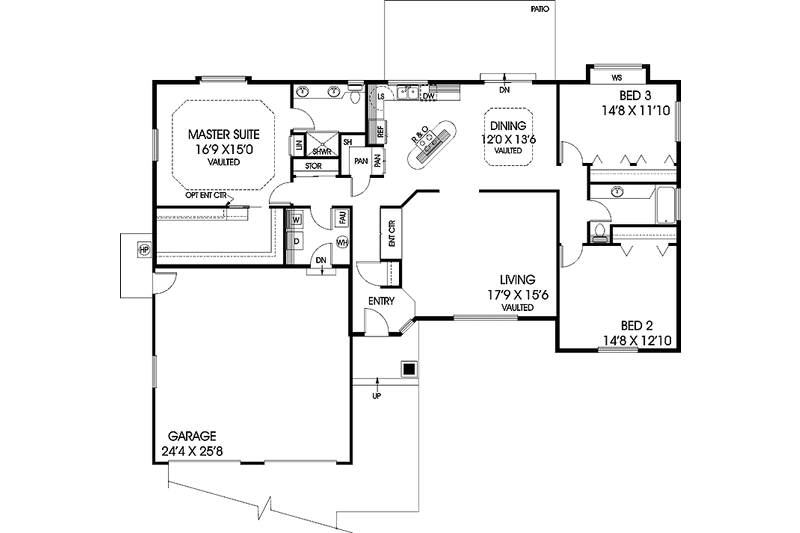

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 49'
Height : 19'
Width : 66'
Area
First Floor: 1919 sq/ft
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Living Room / Parlor
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
188 sq/ft width 14' 8" x depth 12' 10"
Bedroom 3:
173 sq/ft width 14' 8" x depth 11' 10"
Dining Room:
162 sq/ft width 12' x depth 13' 6"
Garage:
624 sq/ft width 24' 4" x depth 25' 8"
Living Room:
275 sq/ft width 17' 9" x depth 15' 6"
Master Suite:
251 sq/ft width 16' 9" x depth 15'
What's Included In This Plan Set

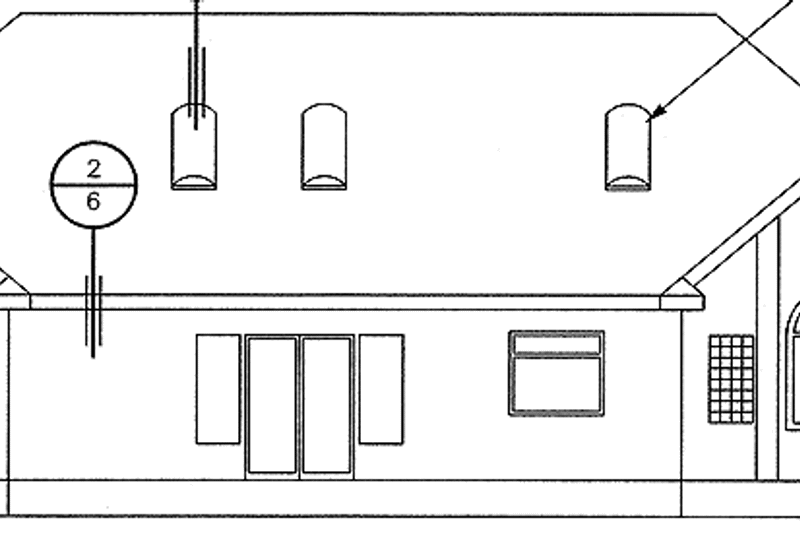

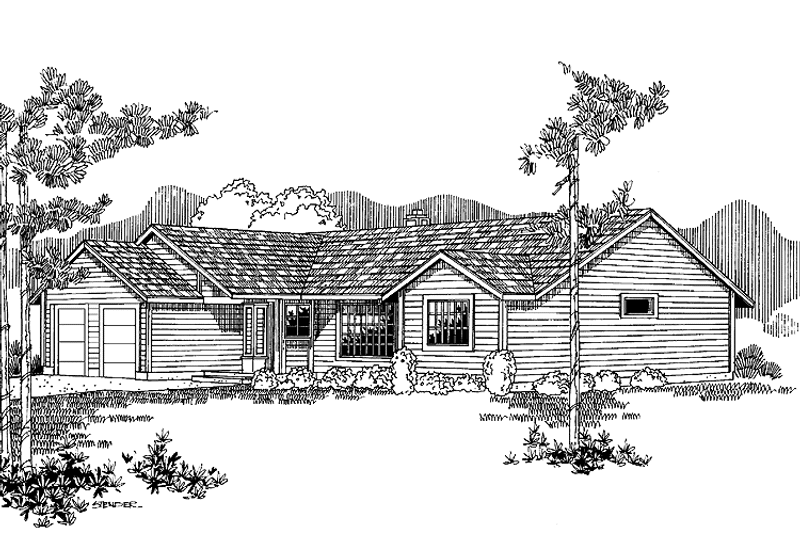

- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$720.00
$760.00
Foundation
$0.00
Framing
$0.00
Additional Options
$40.00
$80.00
$31.20
$80.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
