PLAN 17-2586
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This Rustic Ridge home is a perfect retreat ideal for family and friends to gather in. The great room opens to the screened in porch, both having fireplaces and vaulted ceilings. The master suite has a 10′ boxed ceiling, whirlpool tub, shower, and 2 walk-in closets.
Floor Plans

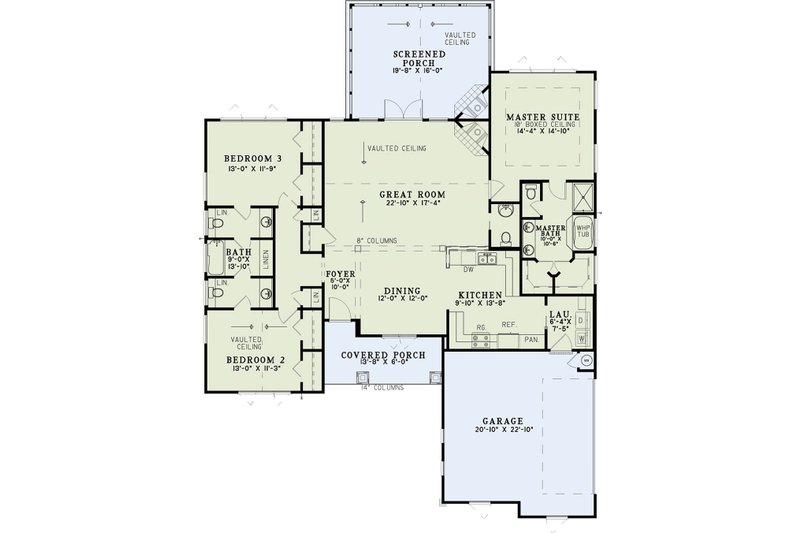

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 71' 6"
Height : 23' 9"
Width : 54' 6"
Area
Garage : 545 sq/ft
Main Floor : 1917 sq/ft
Porch : 107 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Stick
Roof Load : 45 lbs
Exterior Wall Framing
Framing : 2x4
Insulation : R-13
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Sunroom
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch
More
Jack & Jill Bath
What's Included In This Plan Set
