PLAN 112-198
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
- This Traditional façade will make a great family home. - A gas fireplace enhances the huge Great Room. - The huge Kitchen is open to the Nook and Dining rooms and features a Raised Eating Bar and a Pantry cabinet. - The Covered Patio will provide hours of relaxation and memorable moments. - The Den can serve as a Home Office or double as a Guest Bedroom. - The Main Bath has it all, double sinks, separate tub and shower and 2 linen cabinets. - The Laundry Room will help to keep clutter from entering the home. - The huge Garage provide flexibility and a separate Work Shop.
Floor Plans

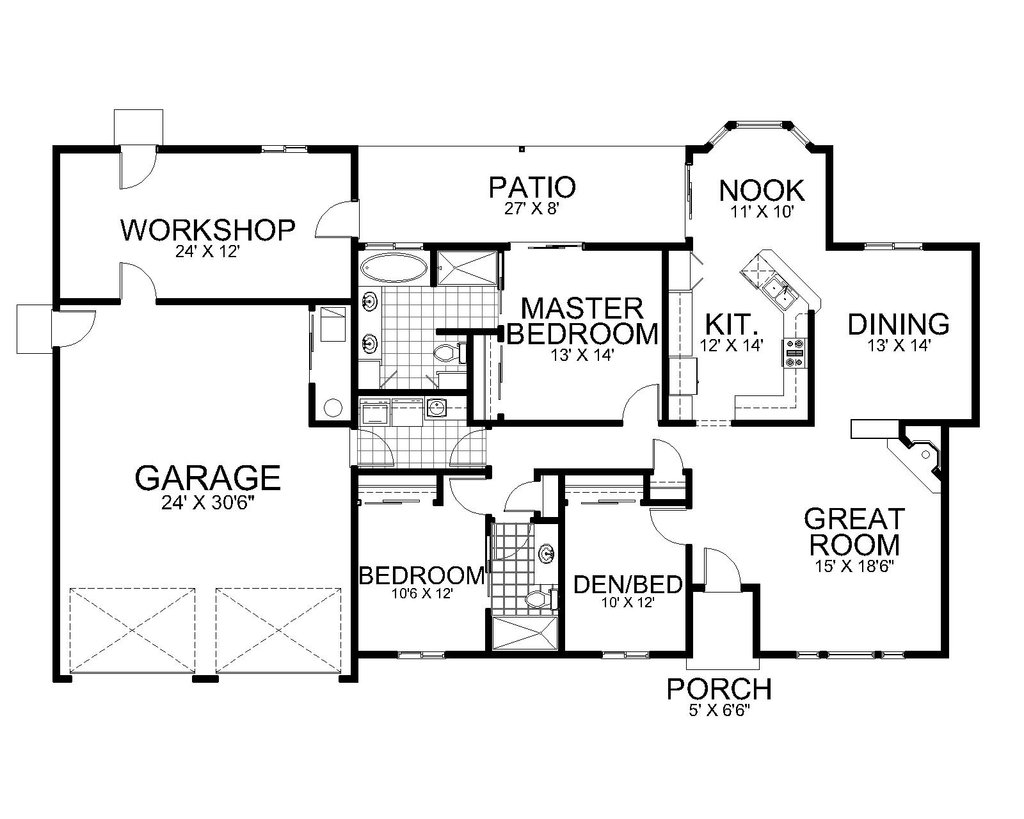

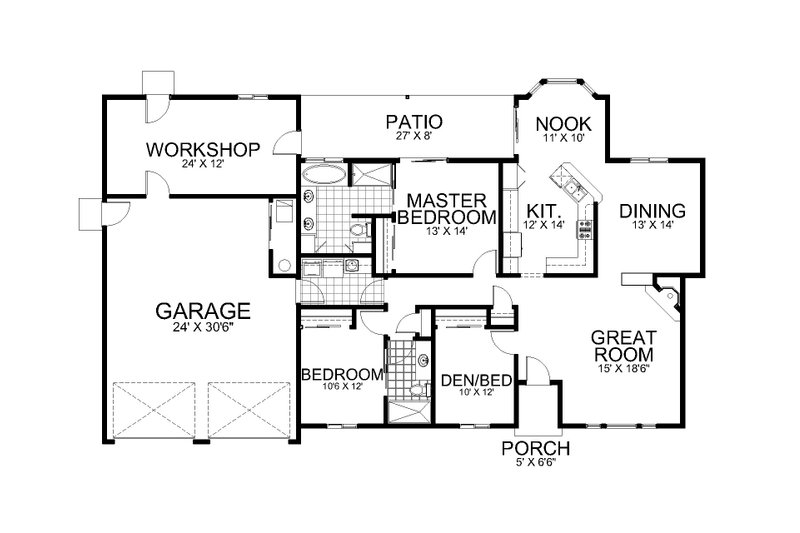

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 17' 9"
Width : 76'
Area
Garage : 771 sq/ft
Main Floor : 1769 sq/ft
Patios : 216 sq/ft
Porch : 28 sq/ft
Storage : 312 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Dining: 9'-0" Tray Ceiling
Garage Ceiling : 8' 6"
Main Ceiling : 8'
Roof
Primary Pitch : 5/12
Roof Framing : Roof Trusses
Roof Load : 40 L.L. /15 D.L.
Roof Type : Standard
Secondary Pitch : 8/12
Exterior Wall Framing
Exterior Wall Finish : Lap siding
Framing : 2x6
Insulation : R-21
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Storage Area
Workshop
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
-
Exterior Elevations:

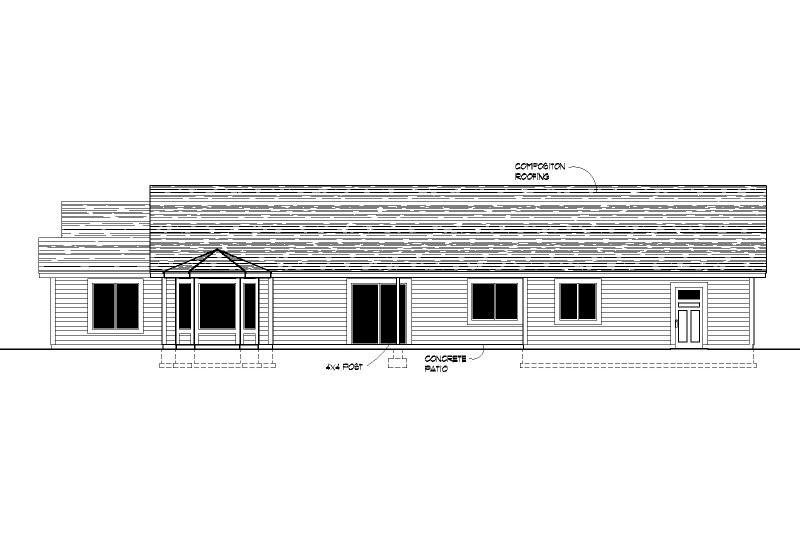

- Front, Rear, and Side Elevations
- Scale 1/4" = 1'-0"
- Roof Slopes
-
Floor Plans:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- Beam and Header Sizes
- Door and Window Sizes
- Ceiling Details
- Floor & Deck Joist Size & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
- Square Footage of Floor Area, Garage, Decks, and Patios
-
Foundation Plan:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- All Foundation Wall and Footing Sizes
- Beam and Header Sizes
- Door and Window Sizes
- Floor & Deck Joist Sizes & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
-
Roof Framing Plan:
- Scale 1/4" = 1'-0"
- All Framing Members Type and Size
- All Beam & Header Sizes & Locations
- Truss Hangers
- Roof Lines, Ridges, Valleys, & Hips
- Notes Pertaining to Code Requirements
- Over-Framed or Over-Build Areas
- Girder and Hip Master Truss Locations
- Raised and Lowered Plate Heights
-
Building Sections:
- Scale 1/4" = 1'-0"
- Roof Trusses and Rafter Framing
- Beam Connections and Locations
- Special Framing Details
- Plate Heights and Foundation Wall Heights
- Roof Slopes and Construction Materials
- Structural Members
-
Braced Wall Panel Plans: May Require
Local Engineering
- Scale 1/4" = 1'-0"
- Braced Panel Locations
- Alternate Braced Panel Locations
- Engineered Panel Locations
- Alternate Braced Panel Details
- Braced Panel Notes and Tables
-
Wall Sections:
- Scale 1/2" = 1'-0"
- All Materials and Construction Notes
- Insulation Requirements
-
Stair Detail:
- Scale 1/2" = 1'-0"
- Section Through Stairway
- Notes Pertaining to Code Requirements
- Floor to Floor Heights
- Rise and Run Dimensions
-
Cabinet Elevations:
- Scale 3/8" = 1'-0"
- Dimensions and Details of All Cabinets
- Notes: Nailing Schedule, Radon Notes, Structural Design Loads, Abbreviations, Truss Notes Electrical Symbol Key, & Insulation Notes
