This colonial design floor plan is 1618 sq ft and has 4 bedrooms and 4 bathrooms.
Floor Plans

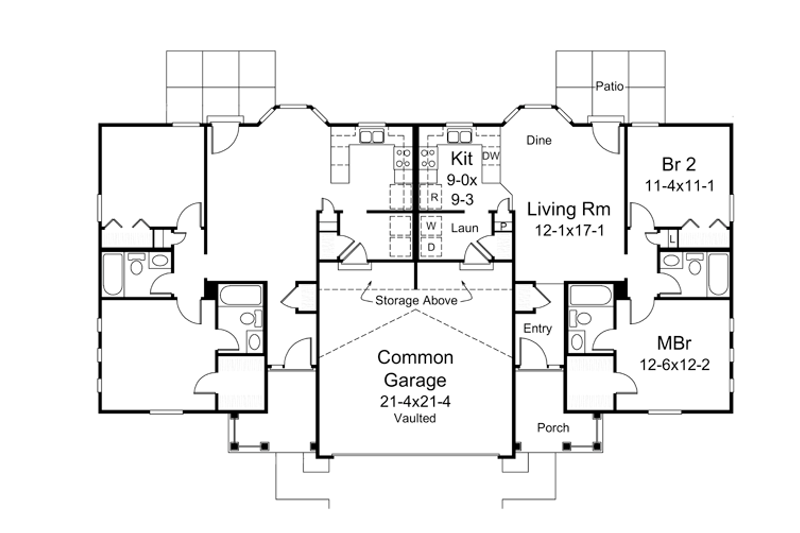

Floor Plan - Main Floor

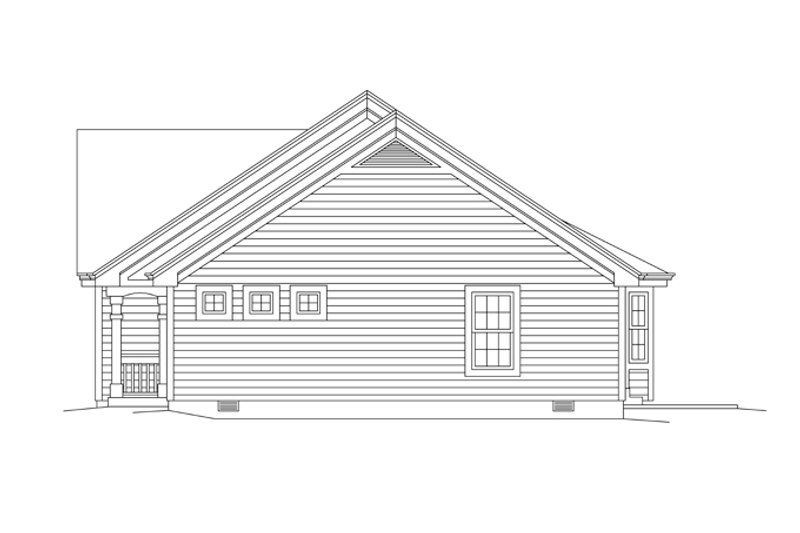

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 39'
Height : 22' 6"
Width : 70'
Area
First Floor: 809 sq/ft height 8'
First Floor: 809 sq/ft height 8'
Garage: 234 sq/ft height 8'
Garage: 234 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
width 11' 4" x depth 11' 1"
Garage:
234 sq/ft width 10' 7" x depth 10' 7"
Garage:
234 sq/ft width 10' 7" x depth 10' 7"
Kitchen:
width 9' x depth 9' 3"
Kitchen:
width 9' x depth 9' 3"
Living Room:
width 12' 1" x depth 17' 1"
Living Room:
width 12' 1" x depth 17' 1"
Master Bedroom:
width 12' 6" x depth 12' 2"
Master Bedroom:
width 12' 6" x depth 12' 2"
What's Included In This Plan Set
