PLAN 461-52
Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (1)
Get Personalized Help
Key Specs
1615
sq ft
3
Beds
2
Baths
1
Floors
0
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 for Black Friday
Use Code CTBBF (limit 1)
Use Code CTBBF (limit 1)
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 461-52
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This 1,615-square-foot design shows how classic and beautiful Craftsman style can be. The interior features a simple open layout that flows from the island kitchen to the big dining area and into the living room. The master suite features a big shower and double sinks in the private bathroom.
Floor Plans

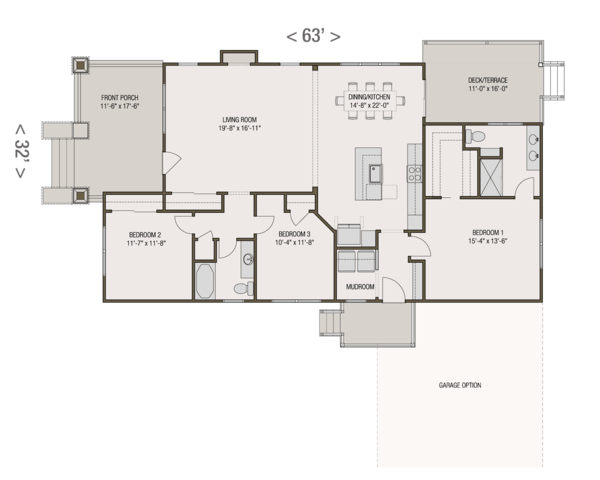

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 63'
Height : 20'
Width : 32'
Area
Main Floor : 1615 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Roof
Roof Framing : Stick
Bedroom Features
Main Floor Bedrooms
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Main Floor Laundry
Mud Room
Garage Features
Detached Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
More
Economical To Build
Empty Nester
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design
Rooms
Bedroom 1:
width 15' 4" x depth 13' 6"
Bedroom 2:
width 11' 7" x depth 11' 8"
Bedroom 3:
width 10' 4" x depth 11' 8"
Deck/Terrace:
width 11' x depth 16'
Dining/Kitchen:
width 14' 8" x depth 22'
Front Porch:
width 11' 6" x depth 17' 6"
Living Room:
width 19' 8" x depth 16' 11"
