Plan Description
This ranch design floor plan is 1404 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

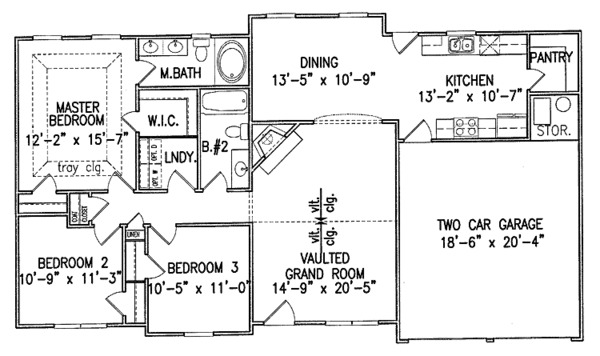

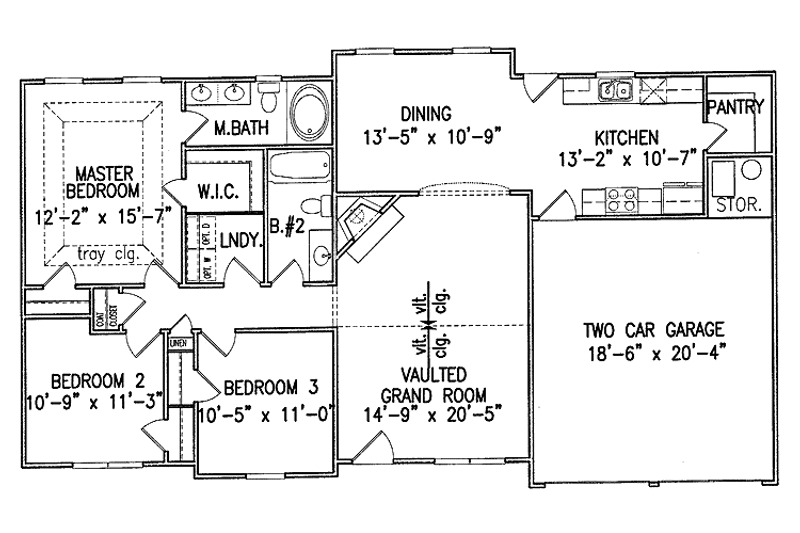

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 34'
Height : 19'
Width : 58'
Area
First Floor: 1404 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Vaulted / Cathedral Ceilings
Rooms
Bedroom 2:
120 sq/ft width 10' 9" x depth 11' 3"
Bedroom 3:
114 sq/ft width 10' 5" x depth 11'
Grand Room:
301 sq/ft width 14' 9" x depth 20' 5"
Kitchen:
139 sq/ft width 13' 2" x depth 10' 7"
Master Bedroom:
189 sq/ft width 12' 2" x depth 15' 7"
