PLAN 72-545
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Here's another design whose general shape is most interesting and whose
livability is truly refreshing. After a stay in this fine second home, it will
be difficult to resume your daily routines back home. A spacious living room
showcases a central fireplace and is near the angled kitchen. The master
bedroom displays a pleasing layout with a walk-in closet and a private bath.
With several sets of sliding glass doors, you will never be far from the great
outdoors.
Floor Plans

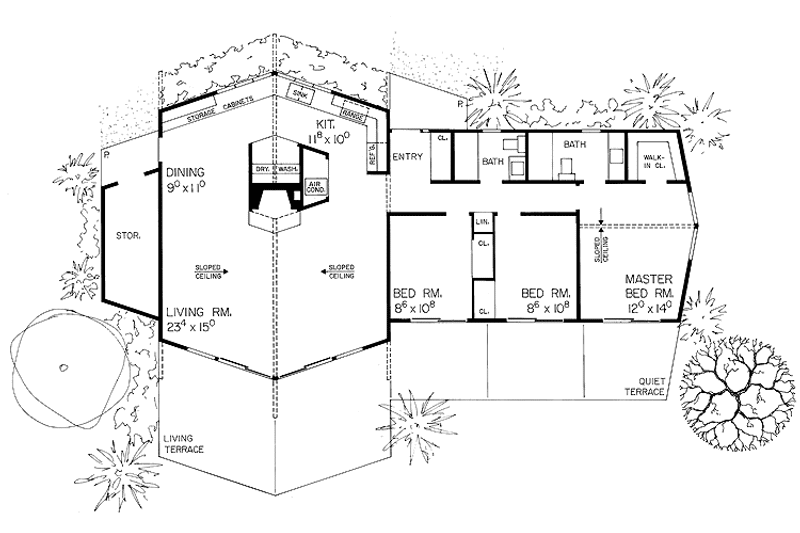

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 12'
Width : 62'
Area
First Floor: 1292 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 3:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
9 sq/ft width 4' 7" x depth 2'
Bathroom 2:
36 sq/ft width 7' 4" x depth 5'
Bedroom 2 Closet:
8 sq/ft width 4' 1" x depth 2'
Bedroom 3 Closet:
8 sq/ft width 4' 1" x depth 2'
Hall Closet:
10 sq/ft width 5' x depth 2'
Master Bathroom:
50 sq/ft width 10' x depth 5'
Master Closet:
26 sq/ft width 5' 4" x depth 5'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
