Plan Description
This craftsman design floor plan is 1200 sq ft and has 0 bedrooms and 0 bathrooms.
Floor Plans

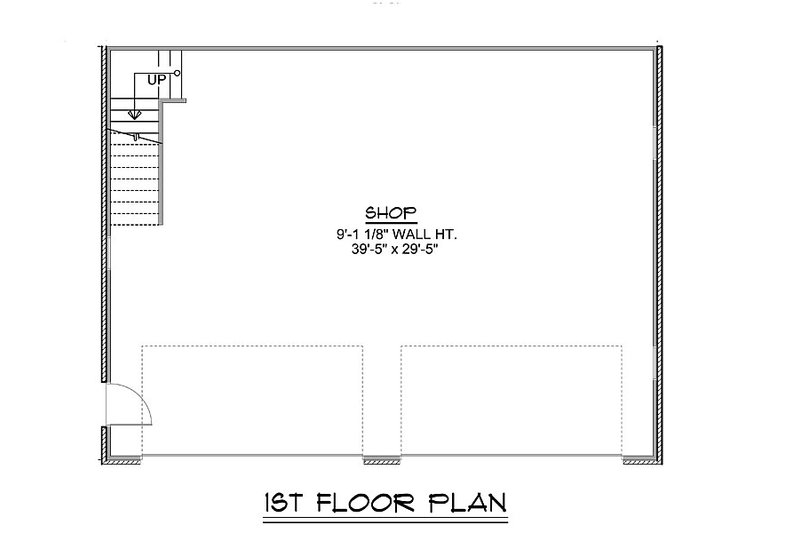

Floor Plan - Main Floor

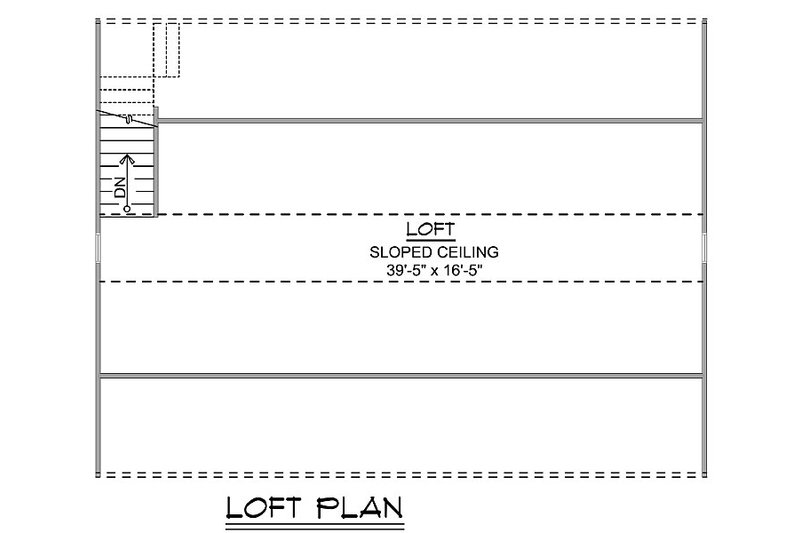

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 30'
Height : 19' 10"
Width : 40'
Area
Bonus : 656 sq/ft
Garage : 1200 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling : 8'
Ceiling Details : Sloped Ceiling in Loft
Garage Ceiling : 9' 1"
Roof
Primary Pitch : 8/12
Roof Framing : Truss
Roof Load : 30 psf
Roof Type : Shingles
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2x4
Insulation : R-13
Additional Room Features
Loft
Workshop
Garage Features
Detached Garage
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
