PLAN 1060-113
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

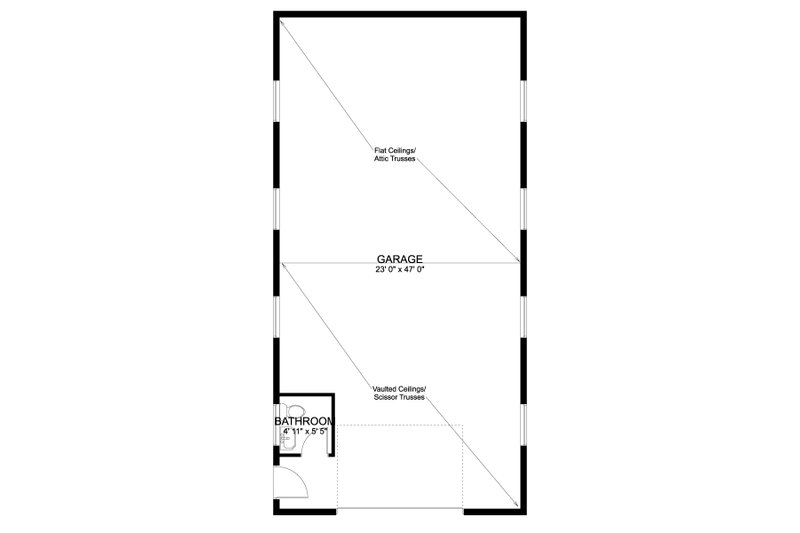

Floor Plans
Full Specs & Features
Dimension
Depth : 48'
Height : 19'
Width : 24'
Area
Garage : 1152 sq/ft
Ceiling
Ceiling Details : Half Scissor Truss vaulted ceiling, half flat ceiling with attic truss storage
Garage Ceiling : 10'
Main Ceiling : 10'
Roof
Primary Pitch : 8/12
Roof Framing : Truss, Attic Truss
Exterior Wall Framing
Exterior Wall Finish : Board & Batten
Framing : 2 x 4
Additional Room Features
Storage Area
Garage Features
Detached Garage
Front Entry Garage
Oversized Garage
RV Garage
Lot Characteristics
Suited For Sloping Lot
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

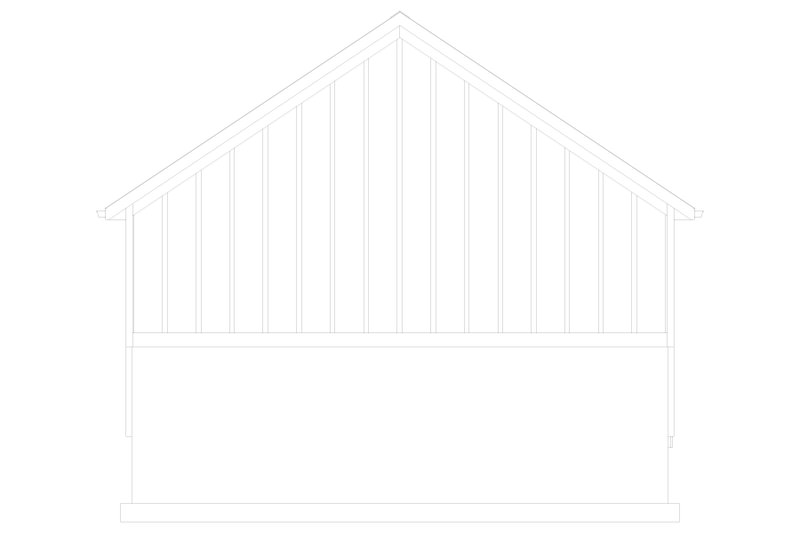

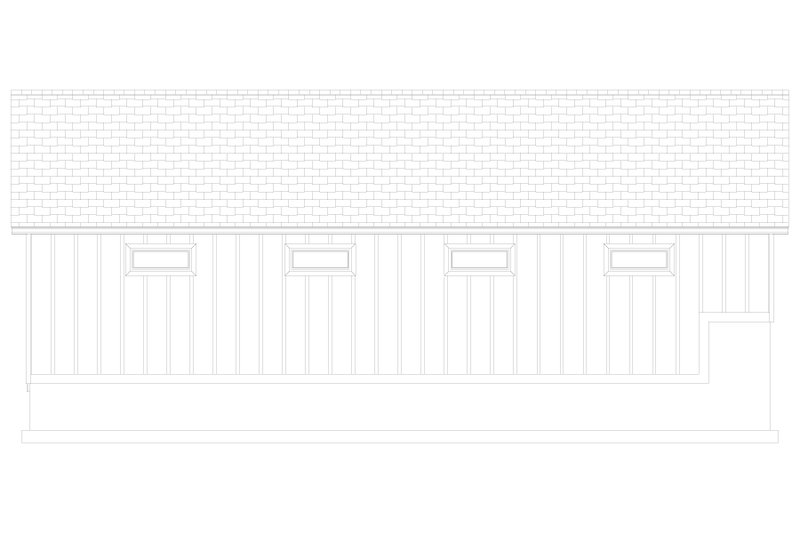

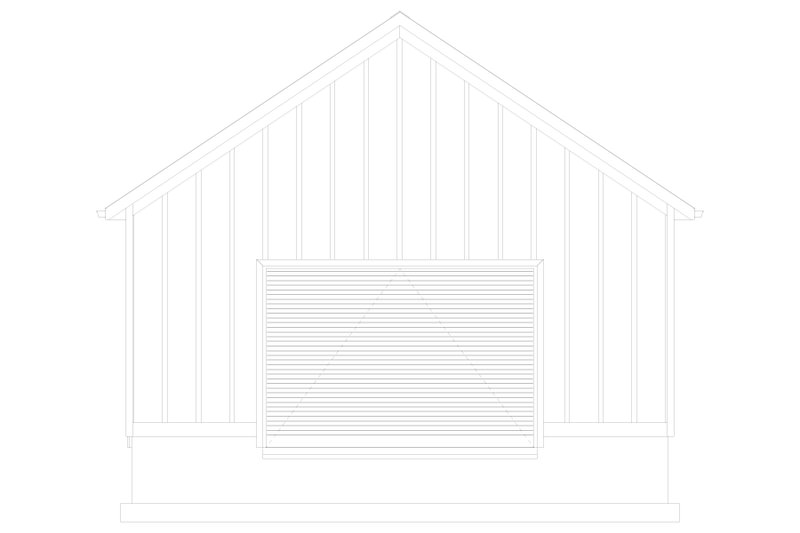

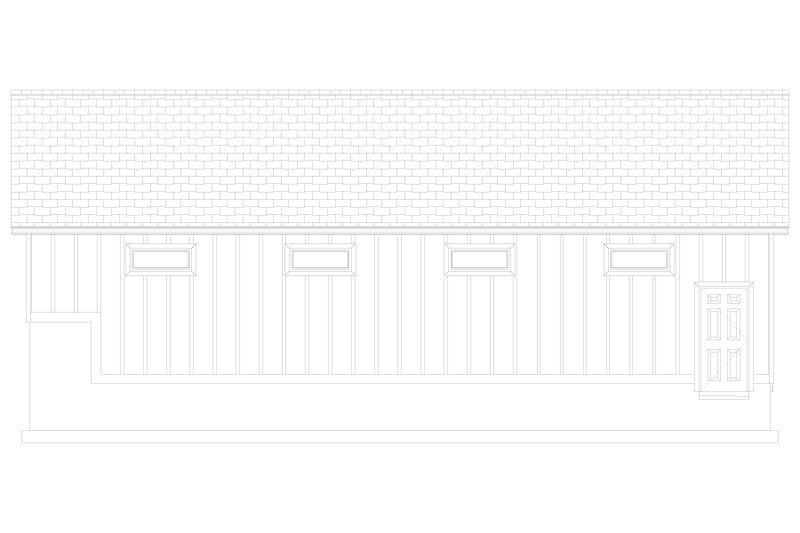

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
