This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 1132 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

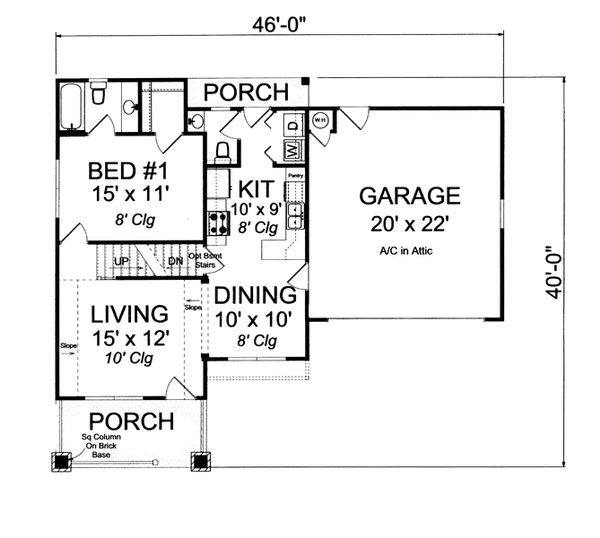

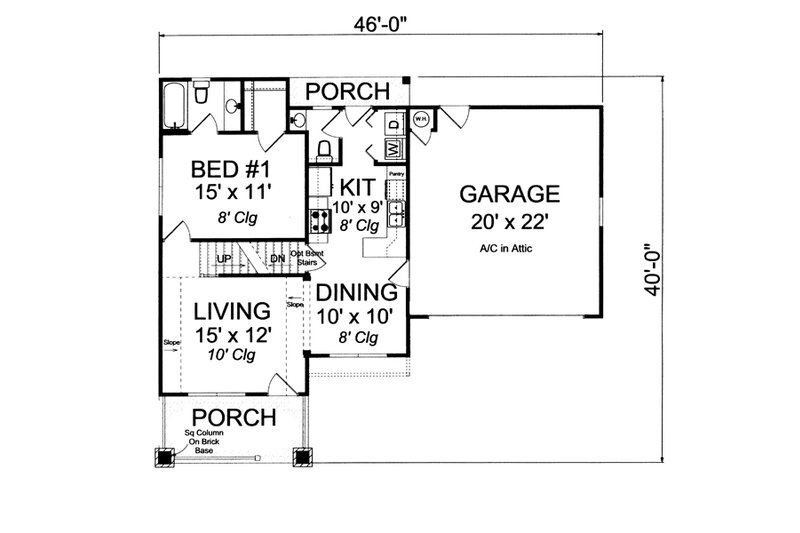

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

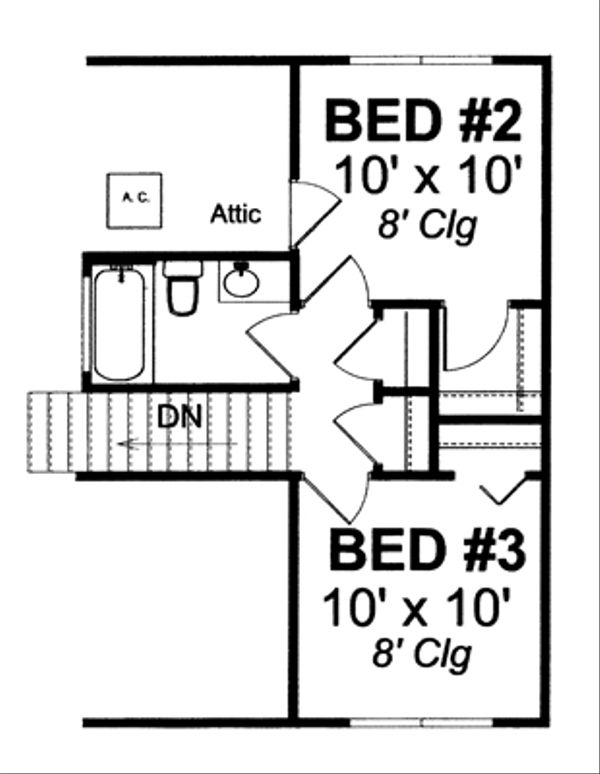

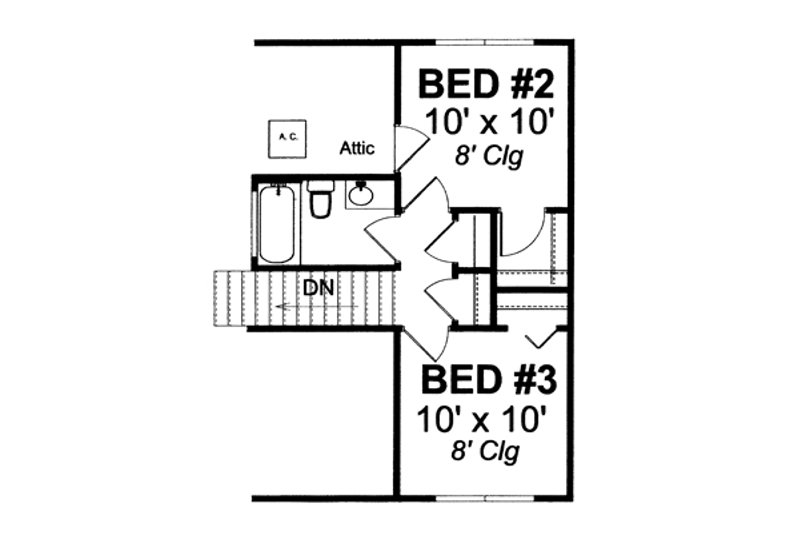

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 40'

Height : 23'

Width : 46'

Area

First Floor: 779 sq/ft

Garage: 440 sq/ft

Second Floor: 353 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Roof Trusses

Roof Load : 30/20

Roof Type : Roof Trusses

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Additional Room Features

Great Room Living Room

Main Floor Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bathroom 2:

41 sq/ft width 8' 4" x depth 5'

Bedroom 1:

165 sq/ft width 15' x depth 11'

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Dining Room:

100 sq/ft width 10' x depth 10'

Garage:

440 sq/ft width 20' x depth 22'

Half Bathroom:

25 sq/ft width 5' x depth 5'

Kitchen:

90 sq/ft width 10' x depth 9'

Living Room:

180 sq/ft width 15' x depth 12'

Master Bathroom:

42 sq/ft width 8' 2" x depth 5' 2"

Master Closet:

22 sq/ft width 4' 4" x depth 5' 2"

Utility Room:

16 sq/ft width 3' x depth 5' 6"

What's Included In This Plan Set

See a sample plan set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
