PLAN 932-911
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

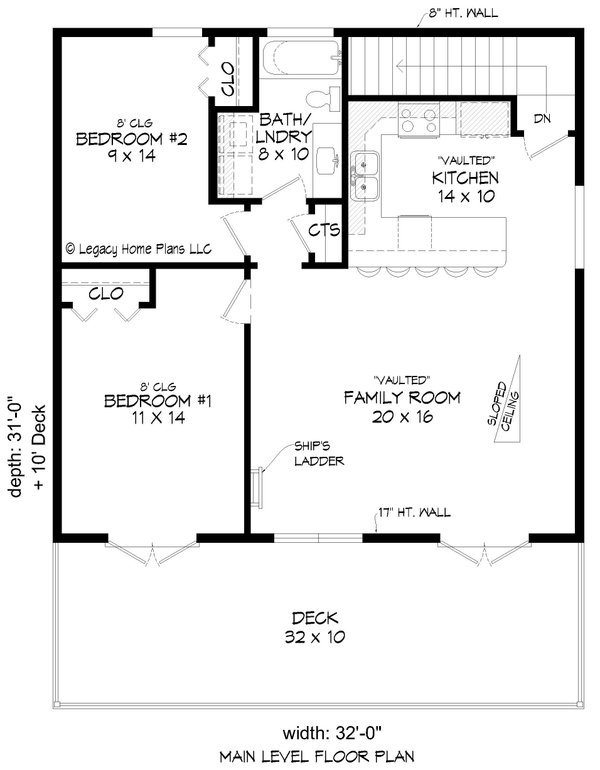

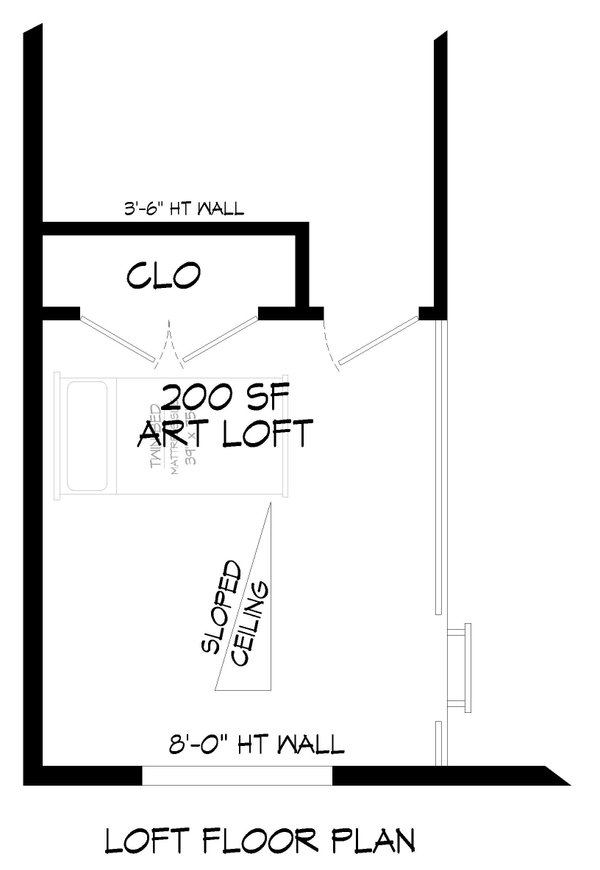

Floor Plans
Full Specs & Features
Dimension
Depth : 41'
Height : 19' 6"
Width : 32'
Area
Bonus : 178 sq/ft
Decks : 385 sq/ft
Main Floor : 927 sq/ft
Ceiling
Ceiling Details : 8'-0" ht above grade
Main Ceiling : 8'
Roof
Primary Pitch : 3:12
Roof Framing : gable
Roof Load : 15
Roof Type : coventional
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Storage Area
Outdoor Spaces
Covered Rear Porch
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1281.00
$1488.00
$1543.00
$1844.00
$963.00
Foundation
$0.00
$200.00
$200.00
$350.00
$450.00
Framing
$0.00
$200.00
Additional Options
$200.00
$44.00
$165.00
$165.00
$295.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
