PLAN 430-3
Photographs may show modified designs.
- Jump to:
- All (8)
- Floor plans (2)
Get Personalized Help
Key Specs
900
sq ft
2
Beds
2
Baths
1
Floors
1
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 430-3
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

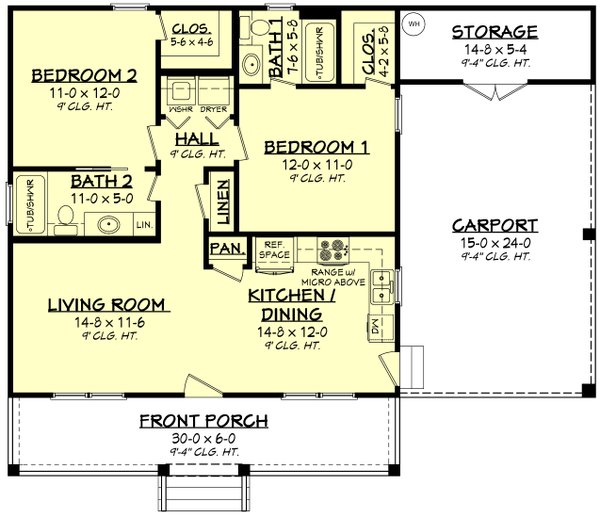

Floor Plan - Main Floor

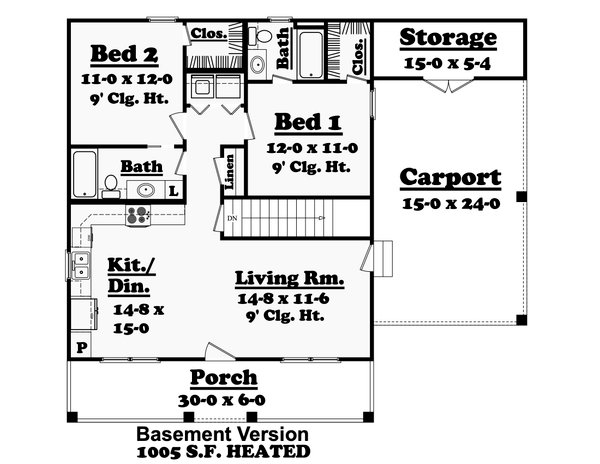

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 36'
Height : 24' 7"
Width : 45'
Area
First Floor: 900 sq/ft height 9'
Garage: 360 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Walk In Closet
Additional Room Features
Family Room Keeping Room
Storage Area
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Rooms
Bath:
43 sq/ft width 7' 6" x depth 5' 8"
Bath #2:
55 sq/ft width 11' x depth 5'
Bedroom 1:
width 12' x depth 11'
Bedroom 2:
width 11' x depth 12'
Bedroom 2 closet:
25 sq/ft width 5' 6" x depth 4' 6"
BR #1 closet:
24 sq/ft width 4' 2" x depth 5' 8"
Carport:
360 sq/ft width 15' x depth 24'
Covered Front Porch:
180 sq/ft width 30' x depth 6'
Kitchen/ Dining Area:
width 14' 8" x depth 12'
Laundry room:
17 sq/ft width 5' 8" x depth 3'
Living Room:
width 14' 8" x depth 11' 6"
Storage:
width 15' x depth 5' 4"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license.
- Cover Sheet – May include index, front view of home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.
- Dimensioned Floor Plan – Electrical may be shown.
- Exterior Views – Four exterior views of the residence with other miscellaneous details.
- Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
- Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
- Wall Section(s) – Detail of wall materials and assembly.
- Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
- Cabinet Elevations – Displays interior kitchen cabinet views.
*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2x6 Wall conversion will not be reflected in the material list.
________________________
Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls.
Plan Set
$1245.00
$1495.00
$1945.00
$2195.00
$2345.00
Foundation
$0.00
$0.00
$395.00
Framing
$0.00
$325.00
Additional Options
$225.00
$100.00
$495.00
$165.00
$39.00
$165.00
$250.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
